| F1-DHYD1-30-5-4-3R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 48" x 36" table, 3000 CFM, 5 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| F1-DHYD1-30-5-4-4R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 48" x 48" table, 3000 CFM, 5 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| F1-DHYD1-30-5-4R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 48" x 30" table, 3000 CFM, 5 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| F1-DHYD1-30-5-5R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 60" x 30" table, 3000 CFM, 5 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| F1-DHYD1-30-5-6-4R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 72" x 48" table, 3000 CFM, 5 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| F1-DHYD1-30-5-6R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 72" x 30" table, 3000 CFM, 5 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| F1-DHYD1-50-10-4-3R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 48" x 36" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| F1-DHYD1-50-10-4-4R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 48" x 48" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| F1-DHYD1-50-10-4R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 48" x 30" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| F1-DHYD1-50-10-5-3R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 60" x 36" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| F1-DHYD1-50-10-6-3R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 72" x 36" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| F1-DHYD1-50-10-8-3R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 96" x 36" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| F1-DHYD1-50-10-8-4R |
|
DHYD1 Hydrotron Downdraft table complete with:
- (1) 96" x 48" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
|
| LEV-WDDT3-1 |
|
Complete Single Table with the following Spec:
- Table Design 36" x 30"
- Construction of mild steel (12 gauge construction)
- Fully welded cabinet with EPOXY interior;
- Water basin, rear entry with baffles and KIMRE pad impingers;
- Full one piece gasket on doors and front cap to ensure pressure capacity within collector.
- Top mounted blower includes housing, AMCA B rating, BI wheel, matching paint, direct drive mounted TEFC motor : 5hp, 600/3/60;
- Blower set for a capacity of 3000 cfm at 6” wg.
- Full water level controls with adjustable logic
- High and Low water level alarms
- Side Walls with Plexiglass
- Regain air with adjustable damper & Bleed
- LED light kit 1x per table
- Hi & Low Alarm – water level control
- Magnetic Motor Starter (ON/OFF)with thermal over load protection
- Manual outlet bleed valve/damper
- Yellow fiberglass grate
|
| LEV-WDDT3-2 |
|
Complete Dual Table with the following Spec:
- Tables Design 36" x 30"
- Construction of mild steel (12 gauge construction)
- Fully welded cabinet with EPOXY interior;
- Water basin, rear entry with baffles and KIMRE pad impingers;
- Full one piece gasket on doors and front cap to ensure pressure capacity within collector.
- Top mounted blower includes housing, AMCA B rating, BI wheel, matching paint, direct drive mounted TEFC motor : 5hp, 600/3/60;
- Blower set for a capacity of 3000 cfm at 7” wg.
- Full water level controls with adjustable logic
- High and Low water level alarms
- Side Walls with Plexiglass
- Regain air with adjustable damper & Bleed
- LED light kit 1x per table
- Hi & Low Alarm – water level control
- Magnetic Motor Starter (ON/OFF) with thermal over load protection
- Manual outlet bleed valve/damper
- Yellow fiberglass grate
|
| LEV-WDDT4-1 |
|
Complete Single Table with the following Spec:
- Table Design 48" x 30"
- Construction of mild steel (12 gauge construction)
- Fully welded cabinet with EPOXY interior;
- Water basin, rear entry with baffles and KIMRE pad impingers;
- Full one piece gasket on doors and front cap to ensure pressure capacity within collector.
- Top mounted blower includes housing, AMCA B rating, BI wheel, matching paint, direct drive mounted TEFC motor : 7.5hp, 600/3/60;
- Blower set for a capacity of 4000 cfm at 7” wg.
- Full water level controls with adjustable logic
- High and Low water level alarms
- Side Walls with Plexiglass
- Regain air with adjustable damper & Bleed
- LED light kit 1x per table
- Hi & Low Alarm – water level control
- Magnetic Motor Starter (ON/OFF) with thermal over load protection
- Manual outlet bleed valve/damper
|
| LEV-WDDT4-2 |
|
Complete Dual Table with the following Spec:
- Tables Design 48" x 30"
- Construction of mild steel (12 gauge construction)
- Fully welded cabinet with EPOXY interior;
- Water basin, rear entry with baffles and KIMRE pad impingers;
- Full one piece gasket on doors and front cap to ensure pressure capacity within collector.
- Top mounted blower includes housing, AMCA B rating, BI wheel, matching paint, direct drive mounted TEFC motor : 7.5hp, 600/3/60;
- Blower set for a capacity of 4000 cfm at 7” wg.
- Full water level controls with adjustable logic
- High and Low water level alarms
- Side Walls with Plexiglass
- Regain air with adjustable damper & Bleed
- LED light kit 1x per table
- Hi & Low Alarm – water level control
- Magnetic Motor Starter (ON/OFF) with thermal over load protection
- Manual outlet bleed valve/damper
- Yellow fiberglass grate
|
| LEV-WDDT6-1 |
|
Complete Single Table with the following Spec:
- Table Design 72" x 30"
- Construction of mild steel (12 gauge construction)
- Fully welded cabinet with EPOXY interior;
- Water basin, rear entry with baffles and KIMRE pad impingers;
- Full one piece gasket on doors and front cap to ensure pressure capacity within collector.
- Top mounted blower includes housing, AMCA B rating, BI wheel, matching paint, direct drive mounted TEFC motor : 15hp, 600/3/60;
- Blower set for a capacity of 6000 cfm at 7” wg.
- Full water level controls with adjustable logic
- High and Low water level alarms
- Side Walls with Plexiglass
- Regain air with adjustable damper & Bleed
- LED light kit 1x per table
- Hi & Low Alarm – water level control
- Magnetic Motor Starter (ON/OFF) with thermal over load protection
- Manual outlet bleed valve/damper
- Yellow fiberglass grate
|
| LEV-WDDT6-2 |
|
Complete Dual Table with the following Spec:
- Tables Design 72" x 30"
- Construction of mild steel (12 gauge construction)
- Fully welded cabinet with EPOXY interior;
- Water basin, rear entry with baffles and KIMRE pad impingers;
- Full one piece gasket on doors and front cap to ensure pressure capacity within collector.
- Top mounted blower includes housing, AMCA B rating, BI wheel, matching paint, direct drive mounted TEFC motor : 15hp, 600/3/60;
- Blower set for a capacity of 6000 cfm at 7” wg.
- Full water level controls with adjustable logic
- High and Low water level alarms
- Side Walls with Plexiglass
- Regain air with adjustable damper & Bleed
- LED light kit 1x per table
- Hi & Low Alarm – water level control
- Magnetic Motor Starter (ON/OFF) with thermal over load protection
- Manual outlet bleed valve/damper
- Yellow fiberglass grate
|

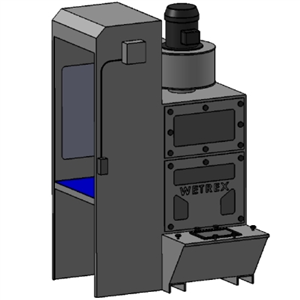

| WETREX-2-3R |
|
Wetrex-2 Downdraft table c/w:
- One (1) Top mounted Blower SXBD 7.5.HP/460V/3/60
- Spark proof AMCA C fan 13.5 BI wheel 3450 Rpm
- 2000 CFM Flow rate "At the table surface" 2000 cfm @ 10 H20
- (1) 36" x 24" table
- Auto-Fill controls
- High and Low water alarms
- Fan shut off in LOW WATER LEVEL condition
- Additional terminals that allow the operators compressed air tools to be shut off in LOW WATER LEVEL conditions
- FULL control panel including Nema 12 enclosure, magnetic motor starter, thermal overload, step down transformer, on/off buttons. 7.5HP 460V/3/60
- Full one (1) piece gaskets on doors and panels
- Closed water bath (not open to atmosphere)
|
