Herculean Crane Drop for Hose - Vehicle Exhaust

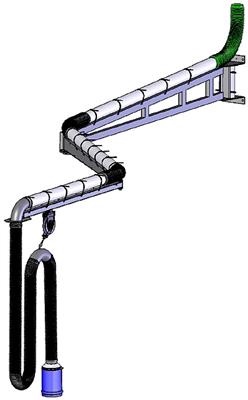

The Herculean Crane Drops with Hose for Vehicle Exhaust allows you to position an extraction hose on any side of the vehicle and capture fumes at the source. The extraction system can easily fold against the wall and out of the way and is perfect for trucks and heavy equipment.

The Herculean Crane will reach as far as 10m (33.5') into the service bay and pass over the top of heavy equipment with ease. The system comes with a saddle and pulley balancer kit, for easy manual control of the hose drop.

The Articulating Crane Drop have typical flow rates between 300CFM and 18,000CFM and supports hoses that are manufactured to withstand a wide array of temperatures, based on your needs:

• Low Temp. Hose: suitable for temperatures up to 250º F
• High Temp. Hose: suitable for temperatures of 850º F
• Ultra High temperatures available up to 2000º F

Other main options include:

• High Temperature Exhaust Fans between 2HP and 30HP
• Overhead Stack Adapters
• Variable Frequency Drives
• Nozzle/Tailpipe Adapter

• Spiral duct kit with flexible hose at joints across the top of the boom
• End Elbow and fixing bracket
• Std. 20ft, 8'' to 14'' Ø, Hose drop (longer lengths available)
• OPTIONAL: Hose lifting mechanism (Balancer or Pulley Kit)

• Eliminates Hazards: This arm eliminates tripping hazards by suspending the hose otherwise kept on the floor
• Modular: Accessories can be bolted straight up to the arm, making it very adaptable to add-ons down the line
• Distance Coverage: With the use of articulated joints, this arm allows your extraction system to reach far distances, making setup time much quicker without floor traffic
• Compact Storage: When not in use, the articulating crane folds neatly up again the wall, keeping the workspace accessible for other equipment
• Retraction Mechanism: Simple mechanical balancer included, making the system one-hand operable, just like a standard extraction arm

Top 5 contaminants/processes/applications:

• Car Exhaust Fumes
• Diesel Exhaust Fumes
• Welding Fumes
• Chemical Fumes
• Grinding Sparks

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
