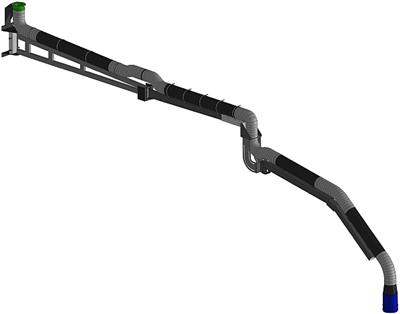

Vehicle Exhaust (trucks & heavy equipment) Herculean Articulating Crane Drop with Extraction Arm - Ø8" /10" /12" /14" Hoses

The VE Articulating Crane Drop with high temp "Self-Supporting" extraction arm allows you to position the nozzle/hood directly over the tailpipe of the vehicle without any mechanical connection. The entire assembly folds out of the way and against the wall (if applicable) the extraction system against the wall and out of the way. The Articulating Crane will reach as far as 10m (38') into the service bay and pass over the top of heavy equipment with ease.
  • Low Temperature Hose: suitable for temperatures up to 250º - 350º F
  • High Temperature Hose: suitable for temperatures of 850º - 1000º F
  • Ultra High Temperatures available up to 2500º - 3500º F
FUNCTION
The VE Articulating Crane Drop with high temp "Self-Supporting" extraction arm allows you to position the nozzle/hood directly over the tailpipe of the vehicle without any mechanical connection. The entire assembly folds out of the way and against the wall (if applicable) the extraction system against the wall and out of the way. The Articulating Crane will reach as far as 10m (38') into the service bay and pass over the top of heavy equipment with ease.
  • Low Temperature Hose: suitable for temperatures up to 250º - 350º F
  • High Temperature Hose: suitable for temperatures of 850º - 1000º F
  • Ultra High Temperatures available up to 2500º - 3500º F
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
VE-ACD-10-16-1000
30' (9150mm) Articulating crane for VE drops complete with 23' of 16" (400mm)Ø 1000° F hose.
VE-ACD-6-14-1000
20' (6100mm) Articulating crane for VE drops complete with 25' of 14" (350mm)Ø 1000° F hose.

Part #
Description
VE-SAD-10
10" (250mm)Ø Saddle/Hose support for Vehicle Exhaust Hoses on ACD's, simple hose drops.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
PYRO-12-850
12" (300mm)Ø, 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels color BLACK.
  • Rated up to 25" (630mm) of static pressure
  • Steel helix embedded for added safety, not exposed
  • Light weight, approximately 2.1 lbs/foot

Part #
Description
Wall Hanger
Wall Hanger for extra hose.
