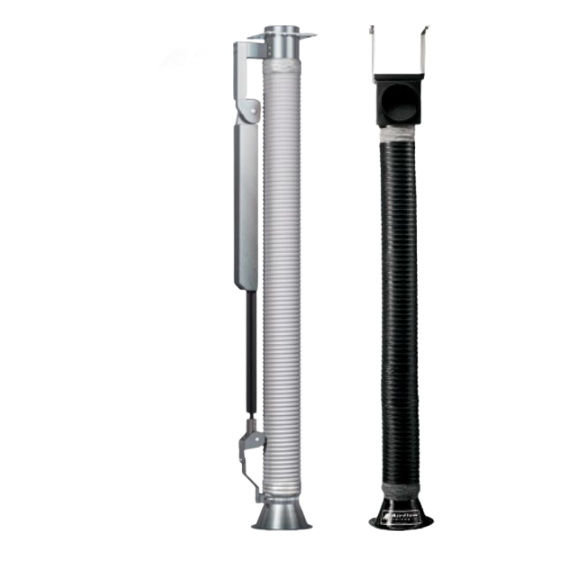

Telescopic Extraction Arm
Telescopic arms are ideally suited for workstations positioned against walls or in confined spaces. With no internal obstructions in the hose, airflow is optimized, while cleaning and maintenance are made simpler.
Lengths are available from 3-4 feet, 3.5-5 feet, or 4-7 feet dimensions. With either 4" (100mm) or 6" (150mm) hose.
The flowrate of the 4" (100mm) hose is 300 CFM and 600 CFM for the 6" (150mm) hose.
Lengths are available from 3-4 feet, 3.5-5 feet, or 4-7 feet dimensions. With either 4" (100mm) or 6" (150mm) hose.
The flowrate of the 4" (100mm) hose is 300 CFM and 600 CFM for the 6" (150mm) hose.
FUNCTION
CONSTRUCTION
KEY CRITERA
SUITABLE FOR
The telescoping arms are easily adjustable and offer 360º rotation at the base joint, providing exceptional versatility and ease of use.
Telescoping arms are designed for seamless connection to new or existing ductwork, boom arms, or directly to Airflow collection and filtration units, and feature a fastener-free design within the airflow stream.
These arms offer an ideal solution for small or confined spaces where the ability to compact the arm is essential.
Options:
Telescoping arms are designed for seamless connection to new or existing ductwork, boom arms, or directly to Airflow collection and filtration units, and feature a fastener-free design within the airflow stream.
These arms offer an ideal solution for small or confined spaces where the ability to compact the arm is essential.
Options:
- Adjustable Air Flow Damper: Increases operating efficiency; regulate airflow levels and blower usage based on application-specific need.
- White Hose, Hood, and Mounting Bracket: UL-rated hose and coordinated components work to enhance facility cleanliness and appearance in non-corrosive environments.
- Static-free Hose: Reduce possible static shock of personnel and workpieces; speed maintenance, minimize particulate retention to the hose.
- Light Kit: 35 watt, 115 volt halogen light kit improves worker visibility.
- Intake Guard: Protect ducting and the blower unit from over-sized debris, such as rags and plastic sheeting that could hinder the efficient operation of the system.
- Exhaust Blower Units: Multiple blower units are available, from .75 HP up to 7.5 HP, depending on the application. Consult your representative for recommendations.
CONSTRUCTION
- Come with either 4" or 6'' diameter hose
- Lengths ranging from 3-4 feet, 3.5-5 feet, or 4-7 feet
- Includes universal mounting bracket for mounting directly to a wall, or connecting to a fixed duct
- Standard E-Z Arm wall bracket, or boom arm
- Damper Included
- Nominal Flow Rate @ 3000 FPM: 260 CFM
KEY CRITERA
- Easily compacted and stored out of the way
- Easily to maneuverable into tight spaces
- Versatile design allowing multiple installations and configurations
- Low headroom
- Good for vertical and linear work application
SUITABLE FOR
Top 5 contaminants/processes/applications:
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
- Welding schools
- Lab/pharmaceutical applications
- Small bench work
- Food/pharmaceutical dust
- Maintenance facilities
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
4" (100mm)Ø extraction arm telescopes from 3' (0.9m) to 4' (1.2m).
4" (100mm)Ø extraction arm telescopes from 3.5' (1.1m) to 5' (1.5m).
- Comes with wall bracket
4" (100mm)Ø extraction arm telescopes from 4.5' (1.4m) to 7' (2.1m).
6" (150mm)Ø extraction arm telescopes from 3' (0.9m) to 4' (1.2m).
- Wall bracket & damper included
6" (150mm)Ø extraction arm telescopes from 3.5' (1.1m) to 5' (1.5m).
- Wall bracket & damper included
6" (150mm)Ø extraction arm telescopes from 4.5' (1.4m) to 7' (2.1m).
- Wall Bracket & damper included
Part #
Description
0-5" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
- Surface mounted
FREQUENTLY BOUGHT TOGETHER
Part #
Description
P-Max direct drive fan 0.5 HP 115-230V/1/60.
P-Max direct drive fan 0.5 HP 115-230V/1/60
- 100% weather-proof & can be mounted outdoors/rooftop
- Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-Max direct drive fan 0.5 HP 208-230-460V/3/60.
P-Max direct drive fan 0.5 HP 575V/3/60.
Part #
Description
P-Max© direct drive fan 0.75 HP 115-230V/1/60.
P-Max© direct drive fan 0.75 HP 208-230V/460V/3/60.
P-Max© direct drive fan 0.75 HP 575V/3/60.
- 100% Weather-proof & can be mounted outdoors/rooftop
- Fans are able to be rotated at 45° increments to allow for angular up/down discharge
Part #
Description
P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
- 100% Weather-proof & can be mounted outdoors/rooftop
- Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-Max© direct drive fan 1 HP 575-600V/3/60.
- 100% Weather-proof & can be mounted outdoors/rooftop
- Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
- 100% Weather-proof & can be mounted outdoors/rooftop
- Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-Max© direct drive fan 1 HP 575-600V/3/60.
- 100% Weather-proof & can be mounted outdoors/rooftop
- Fans are able to be rotated at 45° increments to allow for angular up/down discharge
Part #
Description
P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
- 100% Weather-proof and can be mounted outdoors/rooftop
- Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
- 100% Weather-proof & can be mounted outdoors/rooftop
- Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
- Please specify 1.5 or 2 HP
- If you need 2HP, please use P-152-3-2HP
P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
- 100% Weather-proof and can be mounted outdoors/rooftop
- Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
- 100% Weather-proof & can be mounted outdoors/rooftop
- Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
- Please specify 1.5 or 2 HP
- If you need 2HP, please use P-152-3-2HP
**DO NOT USE**P-Max© direct drive fan 1.5 HP 115-230V/1/60
Note: Must not be used below 8" SP
100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
Part #
Description
Energy Saver E- Man© 230V/3/60. Fan Motor control station for 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
Energy Saver E- Man© 115V/1/60. Fan Motor control station. Rated up to 2 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
Energy Saver E- Man© 208-230V/3/60. Fan Motor control station. Rated up to 7.5 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
Energy Saver E- Man© 240V/1/60. Fan Motor control station. Rated up to 3 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
Energy Saver E- Man© 230V/1/60. Fan Motor control station for 0.5 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
Energy Saver E- Man© 230V/3/60. Fan Motor control station for 7.5 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
Energy Saver E- Man© 460V/3/60. Fan Motor control station. Rated up to 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
Energy Saver E- Man© 575V/3/60. Fan Motor control station. Panel Mounted "Hand/Off/Auto" switch and Pilot light. Rated up to 30 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately #EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...#. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
Part #
Description
0.63 - 1.0A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
- 0.63 - 1.0A Motor Circuit Protector
- Line Side Adaptor
- Operator Handle/Shaft
- 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
- OVERLOAD---> HP rating: 1/2@460/3/60, 1/2@575/3/60
1.0-1.6A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
- 1.0-1.6A Motor Circuit Protector
- Line Side Adaptor
- Operator Handle/Shaft
- 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
- OVERLOAD ---> HP rating: 1/3@230/3/60. 3/4@460/3/60, 1@575/3/60
1.6-2.5A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
- 1.6-2.5A Motor Circuit Protector
- Line Side Adaptor
- Operator Handle/Shaft
- 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
- OVERLOAD ---> HP rating: 1/2/230/1/60, 1/2@230/3/60, 1.5@460/3/60, 1.5@575/3/60
2.5-4A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
- 2.5-4A Motor Circuit Protector
- Line Side Adaptor
- Operator Handle/Shaft
- 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
- OVERLOAD---> HP rating: 1/8@115/1/60, 1/3@230/1/60, 3/4@230/3/60, 2.0@460/3/60, 3.0@575/3/60
4.0-6.3A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
- 4.0-6.3A Motor Circuit Protector
- Line Side Adaptor
- Operator Handle/Shaft
- 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
- OVERLOAD---> HP rating: 0.25@115/1/60, 0.75@230/1/60, 1.5@230/3/60, 3/0@460/3/60, 5.0@575/3/6
6.3-10A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
- 6.3-10A Motor Circuit Protector
- Line Side Adaptor
- Operator Handle/Shaft
- 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
- OVERLOAD---> HP rating: 1/2@115/1/60, 1.5@230/1/60, 3@208/3/60, 3.0@230/3/60, 5@460/3/60, 7.5@575/3/60
10-16A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
- 10-16A Motor Circuit Protector
- Line Side Adaptor
- Operator Handle/Shaft
- 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
- OVERLOAD---> HP rating: 1.0@115/1/60, 3.0@230/1/60, 5.0@230/3/60, 10@460/3/60, 15@575/3/60V
16-20A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
- 16-20A Motor Circuit Protector
- Line Side Adaptor
- Operator Handle/Shaft
- 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
- OVERLOAD---> HP rating: 1.5@115/1/60, 3@230/1/60, 5@208/3/60, 5@230/3/60, 10@460/3/60, 15@575/3/60
20-25A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
- 20-25A Motor Circuit Protector
- Line Side Adaptor
- Operator Handle/Shaft
- 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
- OVERLOAD---> HP rating: 2.0@115/1/60, 3.0@230/1/60, 7.5@208/3/60, 7.5@230/3/60, 15@460/3/60, 20@575/3/60
25-32A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
- 25-32A Motor Circuit Protector
- Line Side Adaptor
- Operator Handle/Shaft
- 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
- OVERLOAD---> HP rating: , 5@230/1/60, 10@208/3/60, 10@230/3/60, 20@460/3/60, 25@575/3/60
115V/1/60 Fan Motor control station up to 1.5 HP - Permits manual start-stop of the fan. Comes complete with:
- Motor overload protection on/off 14A control power cord & plug
- Overload rating according to the FLA of the motor
- Field assembly & installation required
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
- Motor overload protection & on/off control
- Motor Circuit Protector type - "E" rotary 0.63-1.0A OVERLOAD---> HP rating: 1/2@460/3/60, 1/2@575/3/60
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
- Motor overload protection & on/off control
- 1-1.6A OVERLOAD ---> HP rating: 1/3@230/3/60. 3/4@460/3/60, 1.0@575/3/60
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
- Motor overload protection & on/off control
- 1.6-2.5A OVERLOAD ---> HP rating: 1/2@230/1/60, 1/2@230/3/60, 1.5@460/3/60, 1.5@575/3/60
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
- Motor overload protection & on/off control
- 4.0-6.3A OVERLOAD---> HP rating: 0.25@115/1/60, 0.75@230/1/60, 1.5@230/3/60, 3/0@460/3/60, 5.0@575/3/6
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
- Motor overload protection & on/off control
- 6.3-10A OVERLOAD---> HP rating: 1/2@115/1/60, 1.5@230/1/60, 3@208/3/60, 3.0@230/3/60, 5@460/3/60, 7.5@575/3/60
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
- Motor overload protection & on/off control
- 10-16A OVERLOAD---> HP rating: 1.0@115/1/60, 2.0@230/1/60, 3.0@208/3/60, 5.0@230/3/60, 10@460/3/60, 10@575/3/60V
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
- Motor overload protection & on/off control
- 16-20A OVERLOAD---> HP rating: 1.5@115/1/60, 3@230/1/60, 5@208/3/60, 5@230/3/60, 10@460/3/60, 15@575/3/60
Additional components for P-024 Fan Motor control station when used on portable units - Required for CSA Standards.
Part #
Description
Ceiling/Floor Stanchion 9' 75" (3000mm) for Flexi & Pro-Flex Extraction Arms.
Ceiling/Floor Stanchion 3' 3" (1000mm) for Flexi & Pro-Flex Extraction Arms.
Ceiling/Floor Stanchion 6' 5" (2000mm) for Flexi & Pro-Flex Extraction Arms.
Wall bracket, painted black, for E-Z Arm ® blower combination or remote blower mounting. ½Hp to 3HP.
Part #
Description
2500°F Hose Shield for all 6.33" (160mm)Ø hoses. 30" (760mm) in length
Part #
Description
Wall mounted Support bracket for the LD-160-3 Fan.
Support bracket for the LD-240-3 Fan.
Support bracket for the LD-240-3 Fan, back plate. 1/4" MILD STEEL
Support bracket for the LD-240-3 Fan, Left Side. 1/4" MILD STEEL
Support bracket for the LD-240-3 Fan, Right Side. 1/4" MILD STEEL
LD-240-3 Reducer 27" to 20"
Support bracket for the LD-240-3 Fan, Rib, and Gusset. 1/4" MILD STEEL
Support bracket for the LD-240-3 Fan, Left Side Front Gusset triangle. 1/4" MILD STEEL
Support bracket for the LD-240-3 Fan, Right Side Front Gusset triangle. 1/4" MILD STEEL
Support bracket for the LD-240-3 Fan, Top plate with 29" D by 16x0.5" bolt hole pattern. 1/4" MILD STEEL
Galvanized square no-loss stack for CPR-400 Exhaust fans at OC transpo
P-MAX Fan Mount Bracket complete with:
- Swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels & Hose Drops, & VE Articulating Crane for Hose Drops (4, 5, 6)
- For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-MAX Fan Mount Bracket
- Complete with swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels, Hose Drops, & VE articulating Crane for Hose Drops (4, 5, 6)
- For use only with P-147, P-148, P-149 & P-152 up to P-156 Fans.
6.33" (160mm) Swivel Retention Plate for P-045. 14 GA GALVANIZED
6.33" (160mm) Swivel with 1/2" collar for P-045. 16 GA GALVANIZED
Lev-Co formed P-045 Mounting Bracket. 12 GA Mild Steel
P-MAX Fan Mounting Bracket complete with swivel.
- To be used to install a P-Max fan on a H-Max Extension Boom for Flexi-II, E-Z Arm, & Pro-Flex Extraction Crane 8" (200mm)Ø, VE Extension Boom for Hose Reels & Hose Drops 8" (200mm)Ø & VE articulating Crane for Hose Drops 8" (200mm)Ø
- For use only with P-147, P-148, P-149, P-152 up to P-156 Fans
Heavy duty galvanized fan mounting bracket with hardware to connect fan.
Heavy-duty galvanized telescopic fan mounting bracket w/ hardware to connect fan and height-adjustable.
Lightweight stainless steel fan mounting bracket with hardware to connect fan.
Part #
Description
Adjustable air flow damper option for Telescoping Arm.
Light kit (no remote switches available).
Rag guard (hood inlet screen) option for Telescoping Arm.
- Not required when ordering light kit
Replaces the standard hose with static free hose.
- TELESCOPING ARM
Paints the universal wall bracket & hood white, includes white hose.
