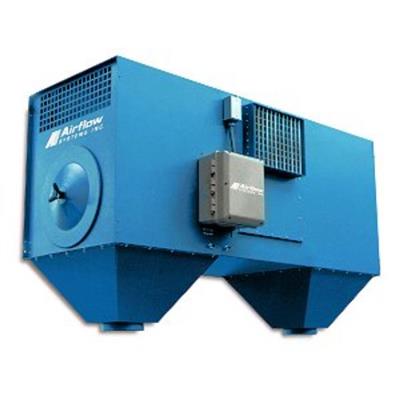

TC-4 - 4000 CFM

The TC-4 Ambient Air Cleaner comes complete with (4) Clean-2® cartridge filters, (150ft² of media each), ON-DEMAND, AUTO-CLEAN VIBRA-PULSE® filter cleaning system, 3 HP TEFC motor and a ½” NPT regulator.

Pollutants pass through the inlet at each end of the cabinet into the dirty air chambers, where the baffling system directs heavier particles toward the bottom of the unit. Lighter particles follow the airstream behind the baffles where they are filtered from the air by the CLEAN 2® cartridge filter. (The CLEAN 2® is the standard filter shipped in the TC-4 units. Other filters are available and may be used in your specific application). The CLEAN 2® filter removes particles with a high degree of efficiency. The air then moves to the clean air chamber, where it is drawn out of the unit by the fan.

This model is a "T" style unit, which features a "Free-Hanging" or "Packaged" air cleaner design. The main mounting method for this model is to freely hang from most ceilings, allowing for versatility when placing the unit in a workspace. This unit is self-cleaning, so the filter replacement period is prolonged.

Main Options:

• Sound Attenuation
• Variable Frequency Drives
• Pressure Gauges

• 14/16 Ga. steel cabinet
• Powder-coat finish
• Front access panel
• AMCA Type B, non-sparking, blower/motor
• (2) removable end caps for easy access to filters
• (2) hoppers with 7.88”Ø outlets
• 4-way adjustable airfoil blade exhaust grille
• Motor wired to junction box outside unit (Motor starter not included)

• Class II Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
• Non-Electrostatic Operation: High reliability, low maintenance.
• Four-way Adjustable Airfoil Grille: For precision direction of air back into facility.
• Maximum Air Flow Design for Light to Medium Applications: Improves operating efficiency.
• Prewired to Junction Box: For fast, easy installation.
• Cleanable Filters: Reduces filter replacement costs.
• Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
• Auto-Clean Off-line Filter Cleaning: Automatically cleans filters when unit is shut off.
• Dual Hopper Design: Extends maintenance cycles.

Top 5 contaminants/processes/applications:

• Airborne viruses
• Atmospheric dust
• Wildfire smoke
• Cardboard dust
• Dust from new construction

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
