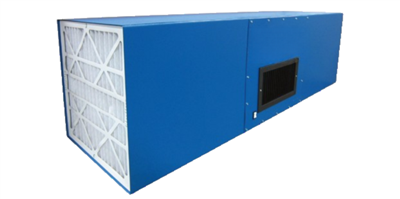

T-3000 - Free-Hanging Air Cleaner - 3000 CFM

The T-3000 filter unit comes standard with (2) pleated pre-filters, (2) 95% bag filters, 64 ft² each. The first stage of filtration is a 40% pleated pre-filter that will trap dust and larger particles. The second stage is a micro-glass multi-pocket bag filter that will remove smoke and other sub-micron size particles from the air.

A complete, packaged air filter unit designed as a “free-hanging” system for efficient and economical air cleaning when at-the-source capture of pollutants is not possible or practical. Strategic placement of one or several units in an area will result in a dramatic reduction of the bothersome smoke, dust, or haze in your facility.

There are multiple filter configurations available featuring washable and/or disposable filters. Typically, units are wall-mounted or free hung from the ceiling.

Main Options:

• Filter Options
• Pressure Gauges
• Variable Frequency Drives

• 14 ga. frame
• 3/16" black matte polyethylene panels
• 3/4 HP 115/1/60 2 speed motor
• Direct drive blower
• 4-way exhaust louvers
• ON/OFF switch and 12 ft. cord

• Belt Drive Blower: Higher static and flow performance.
• Non-Electrostatic Operation: High reliability, low maintenance.
• Four-Way Adjustable Airfoil Grille: For precision direction of air back into facility. Maximum air flow design for light to medium applications: Improves operating efficiency.
• Prewired to Junction Box: For fast, easy installation.
• Cleanable Filters: Reduces filter replacement costs.

Top 5 contaminants/processes/applications:

• Airborne viruses
• Atmospheric dust
• Wildfire smoke
• Cardboard dust
• Dust from new construction

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
