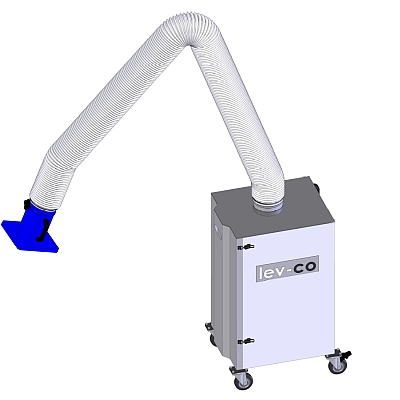

Roll-Flex-V - 1400 CFM

The "V" version of the ROLL FLEX filter is ideal for most VOC, ODOUR, and SPRAY painting applications. This Air Purifier comes complete with a 3 stage filter that includes activated charcoal.
FUNCTION
For the Roll-Flex-V, the air is pre-filtered with a washable particulate filter and then treated by either a single or dual pass, "gas phase" adsorption media filter. This solution is compact, very flexible, and comes complete with a 7’ or 10' extraction arm.

Available Options:
  • Filter Options
  • 4th Stage Filter, deep bed (Dual Pass) Gas Phase Filter
  • Custom Adsorption Media for Filtering Non-VOC Gases
  • Extension Hoods and Nozzles Options
  • Hazardous Locations Certification
  • Replacement Hoses
  • Variable Frequency Drives
CONSTRUCTION
  • Powder-coated steel sheet
  • 1.1 kW Motor
  • 120 V/1/60, 2400 m³/hr. (1400 CFM)
  • Non-sparking aluminum impeller
  • All steel construction

This version of the Roll Flex comes standard with:
  • (4) Casters (2 swivel/lockable)
  • (1) Impingement Baffle
  • (1) High Capacity Washable Pre-Filter
  • (1) Metal Refillable Carbon Filter Module for 18 lbs. of Adsorption Media
  • Easy to Use Clean-Out Dust Tray
  • An ON/OFF Starter
  • Cable & plug
KEY CRITERA
  • 115 Volt Power: Ability to plug into any standard circuit while maximizing total flow rate and usage around the facility. (3-Phase voltage optional)
  • Small Footprint: Saves space in production area and speedy positioning by the operator. (22" x 24")
  • Complete, Pre-Engineered Unit: Guaranteed suitability. Versatile, easy to use, no installation required.
  • Spark Proof Direct-Drive Blower: Higher static pressure, longer filter life, and greater reliability. No wear items such as pulleys or belts to replace.
  • "Secure Seal" Filter Mounting: Eliminates contaminant bypass around filters.
  • Efficient Source Capture: 99.5% filter efficiency produces cleaner air.
  • Fire/Melt-Proof Metal Construction: No plastic structure. Avoids high priced replacement costs.
  • Integrated Spark Deflector: Reduces fire risk in high sparking applications.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Low Profile Cabinet: Low center of gravity for easy maneuverability and arm positioning.
  • Cleanable Main Filter: Reduces operating costs.
  • Single or Dual Pass Phase Absorption Filter: Filtered using a single or dual-pass 'gas phase' adsorption media.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • VOC's - volatile organic compounds
  • Paint Fumes
  • Spray Balms
  • Odours
  • Organic Vapours
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
RF-V-10
Self-Cleaning ROLL FLEX cartridge filter; 1.1 kw (1.5hp), 120 V, 1400 CFM
  • Complete with 3m (10') Extraction Arm
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
RF-V-7
Self-Cleaning ROLL FLEX cartridge filter; 1.1 kw (1.5hp), 120 V, 1400 CFM.
  • Complete with 2m (7') Extraction Arm
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation

Part #
Description
SCF-C-20
Deep Bed Absorption module for SCF filter units (RF-SCF & DC-SCF).
  • Comes complete with 20 lbs. of activated carbon
  • Other adsorption media are available
SCF-C-20-SS
Stainless Steel Deep Bed Absorption module for SCF filter units (RF-SCF & DC-SCF).
  • Comes complete with 20 lbs. of activated carbon
  • Other adsorption media are available
FREQUENTLY BOUGHT TOGETHER

Part #
Description
S-160-3
11' of 6.4"Ø hose - BLUE (replacement hose for P-003 & P-008).
S-160-3-BLK
11' of 6.4"Ø hose - BLACK (replacement hose for P-003 and P-008).

Part #
Description
H-SP-PA-200
Light-weight spray paint hood
  • Galvanized 28ga construction
  • Cardboard paint arrester
  • Used with 8" (200mm) Extraction Arm
H-SP-PA-QC
Light-weight spray paint hood
  • Galvanized 28ga construction
  • Cardboard paint arrester
  • Used with P-003 extraction Arm
  • Quick connect version with bungee attachment

Part #
Description
P-018-160-2MAG
10' long 6.33" (160mm), 250° hose, hood & (2) magnets.
P-018-200-2MAG
Extension hose for welding,10' long 8" (200mm), 250° hose, hood & (2) magnets.
SM-200
Safety mesh for Flexi Extraction Arms & P-Max Fans.

Part #
Description
Roll Flex V-LAB
Labour required to install carbon filter & other alterations & inspections.

Part #
Description
CHARCOAL-15
15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-40
40 lbs. of non-recycled coconut shell-based activated charcoal.
P-004-WFC-12
Combo Filter. Spun bond polyester Pre-filter and Deep Bed activated carbon (holds approx. 15 lbs.) 11.5" (290mm) deep.
P-004-WFC-12
Combo Filter. Spun bond polyester Pre-filter and Deep Bed activated carbon (holds approx. 15 lbs.) 11.5" (290mm) deep.
P-004-WFC-12-EXT
Combo Filter. Spun bond polyester pre-filter and deep bed activated carbon (holds approx. 15 lbs.) 11.5" (290mm) deep.
  • WITH external pre-filter wrapped on the outside of the filter
P-004-WFC-12-PV
Paint Version Combo Filter. Spun bond polyester Pre-filter and Deep Bed activated carbon (holds approx. 15 lbs.) 11.5" (290mm) deep.
  • WITH external pre-filter wrapped on the outside of the filter
