Model

02-023

Image for Mobi-Flex Blue.jpg

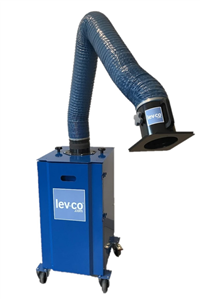

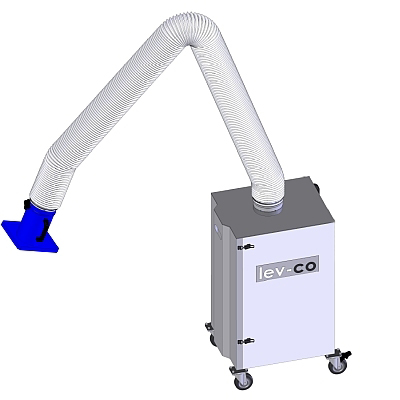

Roll-Flex-V - 1400 CFM

The "V" version of the ROLL FLEX filter is ideal for most VOC, ODOUR, and SPRAY painting applications. This Air Purifier comes complete with a 3 stage filter that includes an activated charcoal deep bed filter.

Function:

For the Roll-Flex-V, the air is pre-filtered with a washable particulate filter and then treated by either a single or dual stage, "gas phase" adsorption media filter. This solution is compact, very flexible and comes complete with a 7’ or 10' extraction arm.

Available Options:
  • Filter Options
  • 2nd Stage (Dual Pass) Gas Phase Filters
  • Custom Adsorption Media for Filtering Non-VOC Gases
  • Extension Hoods and Nozzles Options
  • Hazardous Locations Certification
  • Replacement Hoses
  • Variable Frequency Drives

Construction:

  • Powder-coated steel sheet
  • 1.1 kW Motor
  • 120 V/1/60, 2400 m³/hr. (1400 CFM)
  • Non-sparking aluminum impeller
  • All steel construction

This version of the Roll Flex comes standard with:
  • 4 Casters (2 swivel/lockable)
  • 1 Impingement Baffle
  • 1 High Capacity Washable Pre-Filter
  • 1 Metal Refillable Carbon Filter Module for 18 lbs. of Adsorption Media
  • Easy to Use Clean-Out Dust Tray
  • an ON/OFF Starter
  • Cable & plug

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
RF-V-7 39"H x 24"W x 42"D 220 lbs
RF-V-10 39"H x 24"W x 42"D 220 lbs

Key Buying Criteria:

  • 115 Volt Power: Ability to plug into any standard circuit while maximizing total flow rate and usage around the facility. (3-Phase voltage optional)
  • Small Footprint: Saves space in production area and speedy positioning by the operator. (22" x 24")
  • Complete, Pre-Engineered Unit: Guaranteed suitability. Versatile, easy to use, no installation required.
  • Spark Proof Direct-Drive Blower: Higher static pressure, longer filter life, and greater reliability. No wear items such as pulleys or belts to replace.
  • "Secure Seal" Filter Mounting: Eliminates contaminant bypass around filters.
  • Efficient Source Capture: 99.5% filter efficiency produces cleaner air.
  • Fire/Melt-Proof Metal Construction: No plastic structure. Avoids high priced replacement costs.
  • Integrated Spark Deflector: Reduces fire risk in high sparking applications.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Low Profile Cabinet: Low center of gravity for easy maneuverability and arm positioning.
  • Cleanable Main Filter: Reduces operating costs.

Suitable For:

Top 5 contaminants/processes/applications:

  • VOC's
  • Paint Fumes
  • Spray Balms
  • Odours
  • Organic Vapours
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
RF-V-10 Self-Cleaning ROLL FLEX cartridge filter; 1.1 kw (1.5hp), 120 V, 1400 CFM
  • Complete with 3m (10') Extraction Arm
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
RF-V-7 Self-Cleaning ROLL FLEX cartridge filter; 1.1 kw (1.5hp), 120 V, 1400 CFM.
  • Complete with 2m (7') Extraction Arm
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation

Frequently bought together these options:


Part # Qty Description
H-SP-PA-200 Light-weight spray paint hood
  • Galvanized 28ga construction
  • Cardboard paint arrester
  • Used with 8" (200mm) Extraction Arm
H-SP-PA-QC Light-weight spray paint hood
  • Galvanized 28ga construction
  • Cardboard paint arrester
  • Used with P-003 extraction Arm
  • Quick connect version with bungee attachment

Part # Qty Description
SCF-C-20 Deep Bed Absorption module for SCF filter units (RF-SCF & DC-SCF).
  • Comes complete with 20 lbs. of activated carbon
  • Other adsorption media are available

Part # Qty Description
P-018-160-2MAG 10' long 6.33" (160mm), 250° hose, hood, & (2) magnets.
P-018-200-2MAG Extension hose for welding, 10' long 8" (200mm), 250° hose, hood, & (2) magnets.
RELH-160/200 **DISCONTINUED** Extension/receiving Bell Mouth hood connects directly to the hood on all flexi series extraction arms. Conical hood extension (6" or 8" dia. inlet) 24" outside diameter,. 18G, Aluminum.
SM-200 Safety mesh for Flexi Extraction Arms & P-Max Fans.

Part # Qty Description
Roll Flex V-LAB Labour required to install carbon filter & other alterations & inspections.

Part # Qty Description
CHARCOAL-15 15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-40 40 lbs. of non-recycled coconut shell-based activated charcoal.
P-004-WFC-12 Combo Filter. Spun bond polyester Pre-filter and Deep Bed activated carbon (holds approx. 15 lbs.) 11.5" (290mm) deep.
P-004-WFC-12-EXT Combo Filter. Spun bond polyester Pre-filter and Deep Bed activated carbon (holds approx. 15 lbs.) 11.5" (290mm) deep.
  • WITH external pre-filter wrapped on the outside of the filter
