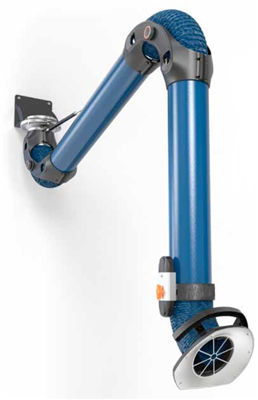

PRX - Extraction Arms

The PRX is designed for effortless maneuverability while providing exceptional positional stability, even when the arm is fully extended. The suction nozzle can be adjusted through 90° in all directions, and the wall attachment features a 360° swivel function for maximum flexibility. The smooth interior of the suction tube ensures ease of cleaning and maintenance.

The external positioning of the link joints results in a pressure drop approximately 50% lower than that of internal linkage systems. The suction nozzle is constructed entirely of sheet steel and features a quick-coupling system for easy attachment of accessories.

Unique on the market

TThe PRX is equipped with adjustable friction joints, controlled by easily adjustable knobs that offer precise control over resistance levels. This feature provides exceptional flexibility, making the PRX a standout solution in the market.

The PRX arm is based on an externally supported design that provides:

• Low pressure drop
• Low risk of blockage
• Low energy consumption
• Quiet operation

• Lengths: 7', 10', 14', 20', 26', and 32'
• Diameters: 5", 6', and 8"
• Partially Assembled with flame-resistant PVC hose and wall bracket
• Externally supported joints offer 50% lower pressure drop
• Friction Brake offers easy maneuverability and keep the arm retained

• Easy to maneuver with great positional stability
• Suction nozzle made of sheet steel with a quick-coupling system for accessories
• Cast aluminum attachment with a 360° swivel function
• Knobs for adjusting friction joints
• External link joints = low-pressure drop
• Easy to clean

Top 5 contaminants/processes/applications:

• Welding smoke
• Light Dust
• Food and Pharma Dusts
• VOC's
• Low-Temperature exhaust gases below 150°

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
