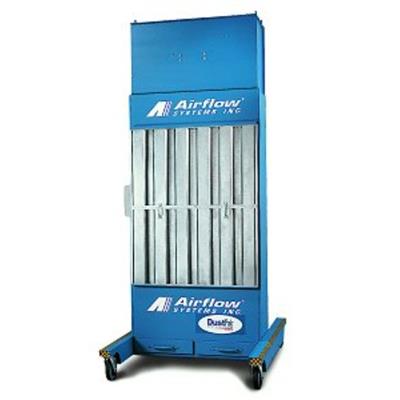

PB Dust Control System - 131''H x 67''W

The PB Dust Control System is a self-contained, free-standing dust collection solution designed to eliminate the need for traditional ductwork systems in industrial environments. This system offers efficient and reliable dust control while simplifying installation and maintenance processes.
FUNCTION
The stand-alone Dust Control System is equipped with a self-cleaning filter and is engineered to efficiently remove airborne contaminants from the worker's breathing zone.

The direct-drive fan’s high pressure ensures a typical flow rate of 4500 CFM, while the high-efficiency filter media offers a large dust holding capacity. The diffuser design effectively reduces air velocity, lowering operating costs and preventing premature filter loading..

Main options include:
  • Various Filters and After Filters
  • Preventative Maintenance Pressure Gauges
  • Variable Frequency Drives
CONSTRUCTION
  • 16 ga. steel cabinet with powder-coat finish
  • 5 HP 208-230/460/575/3/60hz motor with non-sparking AMCA Type B wheel
  • 4’ x 4’ BD Hood
  • (6) Clean 2® cartridge filters, dual dust drawers, slotted inlet hood
  • Vibra-Pulse® cleaning system
KEY CRITERA
  • Self-Contained System: Eliminates the need for expensive ductwork and a separate dust collection system, streamlining operations and reducing overall costs.
  • 5 HP Direct-Drive Blower: Improves collection efficiency and increases reliability.
  • High-Efficiency Filter Media: The compact, high-efficiency cartridge filter delivers optimal performance, with tool-free filter replacement for enhanced ease of maintenance.
  • Industry’s Largest Inlet Grille Area: The system effectively protects workers' breathing zones by keeping contaminants at bay. Its diffuser design minimizes air velocity, thereby lowering operating costs and reducing the risk of premature filter loading.
  • Large-Volume Dust Drawer: Provides for high-volume collection, extends maintenance cycles.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Auto-Clean Off-Line Filter Cleaning: Automatically cleans filters when the unit is shut off. Built-in damper to prevent dust escape during cleaning.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Smoke
  • Odours
  • Composite Dust
  • VOC's
  • Chemical Fumes
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
PB-1
4500 CFM free standing cartridge dust collector with:
  • (6) Clean 2® cartridge filters, dual dust drawers, slotted inlet hood, 5 HP 208-230/460/3/60hz motor with non-sparking AMCA Type B wheel
  • Auto-Clean Vibra-Pulse® filter cleaning system
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
PB-2
4500 CFM free standing cartridge dust collector with:
  • (6) Clean 2® cartridge filters, dual dust drawers, slotted inlet hood, 5 HP 575/3/60hz motor with non-sparking AMCA Type B wheel
  • Auto-Clean Vibra-Pulse® filter cleaning system
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part #
Description
PB-EXAD
External adsorption option includes:
  • (4) refillable, v-bank adsorber modules, 100 lbs. capacity
  • (2) 2" (50mm) pleated after-filters; rated 4000 CFM
  • Order charcoal separately (Adds 15 to height)
PB-EXHE
External HEPA Option for Standard POWERBOOTH Unit.
PB-SPUNPOLY
(6) Spunbond Polyester Cartridge Filters Option for Standard POWERBOOTH Unit.
PB-WELDING
Welding/Ferrous Grinding Option for Standard POWERBOOTH Unit - Replaces standard inlet grill with non-reflective grid.

Part #
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.

Part #
Description
PB-CASTER
Caster option with 6' out-riggers; uses heavy duty casters.
PB-CONTROLLER
Controls Multiple powerbooths dust collectors when used in customer built dust control room.
  • Only (1) required - recommended for 1-2 modules
  • Use with Auto-Clean Vibra-Pulse cleaning system only - 115V standard
PB-CONTROLLER-2
Controls multiple PB06 Powerbooth Dust Collectors when used in customer built dust control room.
  • Only (1) required - recommended for 3-6 modules
  • Use with Auto-Clean, Vibra-Pulse filter cleaning system only - 115 Volt standard
PB-EX-SIL
External Silencer Option for Standard Powerbooth unit.
  • Not Available with HEPA option
PB-M/C-6
Manual Vibrapulse Option for Standard POWERBOOTH Unit
PB-PB06
Powerbooth dust collector for use in customer built dust control room.
  • Moves valve box to front of Powerbooth & requires remote mounted control box (CONTROLLER Option)
  • Order required number of Powerbooth dust collectors with PB06 option & (1) CONTROLLER Option
  • Use with Auto-Clean Vibra-Pulse cleaning System Only
PB-PG-10
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size - Surface mounted
PB-REAR
Dust Drawers from front to back Option for Standard POWERBOOTH Unit.
PB-REGAIN
Duct, collar, & adjustable distribution plenum for use in customer built dust control room. Call Airflow before quoting if using with EXHE or EXAD option**
PB-SHIELD
Side Shields Option for Standard POWERBOOTH Unit.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
P-025-120S-575V-3PH-20HP
Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.

Part #
Description
7FP1-4505-OEM
MERV 14 Filter - synthetic & washable.
  • Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH, & MP60
7FP1-4505-P
High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FR0-2016
Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend. Replacement filter for POWERBOOTH, DUST CONTROL BOOTH, PC-1, PC-2, DC-1, DC-2, V410, DT800, DT3000
  • Due to the amount of customers not knowing about or using the Vibra-Pulse tubes, these filters will now include The Vibra-Pulse tube. The proper replacement of this Vibra Pulse tube greatly increases filter life and helps maintain flowrate thus resulting in increase worker protection from harmfull fumes
7FR0-2016-OEM
Clean 2 Cartridge Filter for POWERBOOTH, DUST CONTROL BOOTH, PC-1, PC-2, DC-1, DC-2, V410, DT800, DT3000
  • Due to the amount of customers not knowing about or using the Vibra-Pulse tubes, these filters will now include The Vibra-Pulse tube. The proper replacement of this Vibra Pulse tube greatly increases filter life and helps maintain flowrate thus resulting in increase worker protection from harmfull fumes
7FR0-5016
UCP Double treated cartridge used in the following equipment: POWERBOOTH, DUST CONTROL BOOTH, PC-1, PC-2, DC-1, DC-2, V410, DT800, & DT3000.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
