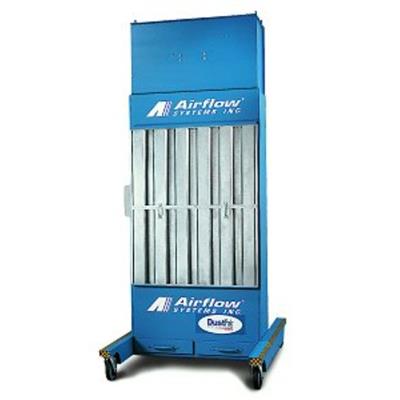

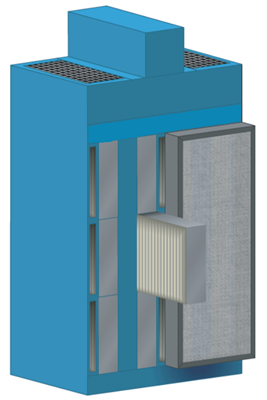

Panel Filter PB Dust Control System - 115''H x 54''W

The free-standing Panel Filter PB Dust Control Booth is a complete dust collection system that is easy to integrate into industrial environments.
FUNCTION
The Self-Contained Control Booth is designed to remove airborne contaminants from a worker breathing zone. Can be used as a stand-alone unit or as part of an expandable dust control booth.

The high pressure of the direct-drive fan maintains a typical flow rate of 5500 CFM and contains twelve filters that have been redesigned to assure high initial efficiency and dust holding capacities.

Main options include:
  • Various Filter Options
  • Filter Media
  • Preventative Maintenance Pressure Gauges
  • Variable Frequency Drives
CONSTRUCTION
  • 16 ga. steel cabinet with powder-coat finish
  • 3 HP direct drive BI blower
  • 208-230/460/575/3/60 TEFC motor wired to an electrical control box
  • Standard with (12) MERV11 24 x 24 x 6 filters (42 sq. ft. each)
  • 2' x 4' footprint
KEY CRITERA
  • Self-Contained Dust Collection System: Eliminates costly ductwork and the need for a separate dust collection system.
  • 3 HP Direct-Drive Blower: Improves collection efficiency, increases reliability.
  • Maximum Efficiency: High flow-to-horsepower ratio provides the optimal energy efficiency.
  • Wide Filter Selection: Many available filters, from single-stage MERV 11 to multi-stage HEPA
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Welding Fumes
  • Smoke
  • Composite Dust
  • VOC's
  • Chemical Fumes
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
PFPB-1
5500 CFM free standing Panel Filter Collector with:
  • (12) MERV 11 24" x 24" x 6" filters (42 sq. ft. of media each)
  • Total 504 sq. ft. media 3HP TEFC motor 208-230/460/3/60

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
PFPB-2
5500 CFM free standing Panel Filter Collector with:
  • (12) MERV 11 24 x 24 x 6 filters (42 sq. ft. of media each)
  • Total 504 sq. ft. media 3HP TEFC motor 575/3/60
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part #
Description
PFPB-3-PASS
Delete 12 standard 6” (150mm) MERV 11 - Add 36 2” (50mm) MERV11.
PFPB-95% ASHRAE
Delete standard 6” (150mm) MERV 11 filters - Add 2” (50mm) MERV 11 & 4” (100mm) 95% ASHRAE MINIPLEAT.
PFPB-AD
Delete 12 standard MERV 11 filters - Add 12 each 2” (50mm) MERV11 & 24” x 24” x 3” AD modules.
  • Each module holds 30 lbs. of charcoal, total of 360 lbs. (order separate)
  • Adds 120 lbs. to shipping weight
PFPB-HEPA
Delete 12 standard 6” (150mm) MERV 11 filters - Add 12 each 2” (50mm) MERVII & 99.97%, 4” (100mm) MINIPLEAT HEPA.
PFPB-MERV14-WASH
Delete 12 Standard MERV 11 Filters - Add 12 Pleated Filters (24" x 24" x 4") MERV 14 Synthetic Washable.
PFPB-PREFILTER
Delete standard filter covers - Adds pre-filter assembly with 2-2472 2” POLY pre-filter media.
  • Adds 4” (100mm) to depth

Part #
Description
2KA1-2P11
Option A: Filter MERV 11, Pleated (24 x 24 x 2) MERV.
  • Three Stage (Qty 36)

Part #
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.

Part #
Description
Louver Door Kit
Louver Grill Kit for welding applications.
PFPB-3HP-1PH
3 Hp TEFC motor, 230/1/60 motor in place of 3HP 208-230/460/3/60hz motor.
PFPB-PG-3
0-3" Minihelic gauge, flush mounted with AFS logo.
Regain
Regain air kit one per powerbooth, dust collector
Shield
Side shields, extends POWERBOOTH ™ width (1) foot on each side & (2) feet out.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
2KK1-2P14
KIT, (12) 2" MERV11 + (12) 4" MERV 14 (122 SQ.FT.)

Part #
Description
Casters
Caster Option with 6' out-riggers, uses heavy duty casters.

Part #
Description
2KS1-2P11
STANDARD: Filter, Pleated (24" x 24" x 6"). MERV 11 - QTY (12).
7FP1-4505-OEM
MERV 14 Filter - synthetic & washable.
  • Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH, & MP60
2AF7-9001
Refillable module, holds 30 Ibs.of charcoal - order separate.
2AZ2-0023
2” (50mm) polyester media 24” x 72” pre-filter media.
7FJ9-9005
99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod.
7FP1-1412
Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP1-4505-P
High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FPM-1102
Filter, Pleated, 24" x 24" x 2", MERV 11 efficiency.
7FPM-1104
Pleated FIlter, MERV 11 efficiency - for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
