Model Number

06-004

model_icon

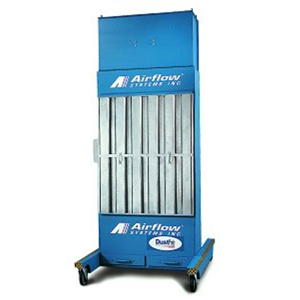

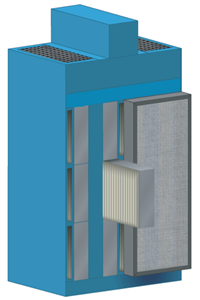

Panel Filter PB Dust Control System - Back & Side Draft Systems

The free-standing Panel Filter PB Dust Control Booth is a complete dust collection system that is easy to integrate into industrial environments.

Function:

The Self-Contained Control Booth is designed to remove airborne contaminants from a worker breathing zone. Can be used as a stand-alone unit or as part of an expandable dust control booth.

The high pressure of the direct-drive fan maintains a typical flow rate of 5500 CFM and contains twelve filters that have been redesigned to assure high initial efficiency and dust holding capacities.

Main options include:
  • Various Filter Options
  • Filter Media
  • Preventative Maintenance Pressure Gauges
  • Variable Frequency Drives

Construction:

  • 16 ga. steel cabinet with powder-coat finish
  • 3 HP direct drive BI blower
  • 208-230/460/575/3/60 TEFC motor wired to an electrical control box
  • Standard with (12) MERV11 24x24x6 filters (42 sq. ft. each).
  • 2' x 4' footprint

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
PFPB-2 115"H x 54"W x 20"D 875 lbs
PFPB-1 115"H x 54"W x 20"D 875 lbs
CHARCOAL-CP40 13"H x 12"W x 13"D 40 lbs
CHARCOAL-CP20 13"H x 12"W x 13"D 20 lbs
7FP1-4505-P 5"H x 25"W x 25"D 7 lbs
7FP1-4505-OEM 4"H x 24"W x 24"D 8 lbs
7FP1-1412 5"H x 25"W x 25"D 7 lbs
7FJ9-9005 4"H x 24"W x 24"D 15 lbs
2KS1-2P11 "H x "W x "D 0 lbs

Key Buying Criteria:

  • Self-contained dust collection system: Eliminates costly ductwork and the need for a separate dust collection system.
  • 3 HP direct-drive blower: Improves collection efficiency, increases reliability.
  • Maximum efficiency: High flow-to-horsepower ratio provides the optimal energy efficiency.
  • Wide filter selection: Many available filters, from single-stage MERV 11 to multi-stage HEPA

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding Fumes
  • Smoke
  • Composite Dust
  • VOC's
  • Chemical Fumes
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part #
Qty
Description
PFPB-1
5500 CFM free standing Panel Filter Collector with (12) MERV 11 24 x 24 x 6 filters (42 sq. ft. of media each) Total 504 sq. ft. media 3HP TEFC motor 208-230/460/3/60. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
PFPB-2
5500 CFM free standing Panel Filter Collector with (12) MERV 11 24 x 24 x 6 filters (42 sq. ft. of media each) Total 504 sq. ft. media 3HP TEFC motor 575/3/60. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
Part #
Qty
Description
2KS1-2P11
STANDARD: Filter, Pleated (24"x24"x6"). MERV 11. QTY 12
7FP1-4505-OEM
MERV 14 Filter, Synthetic, Washable. Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH and MP60.
2AF7-9001
Refillable module, Holds 30 Ibs.of charcoal. Order separate
2AZ2-0023
2” polyester media 24” x 72” prefilter media
7FJ9-9005
99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod
7FP1-1412
Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod. 24"x24"x4"
7FP1-4505-P
High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod. 24"X24X"4"
7FPM-1102
Filter, Pleated, 24x24x2, MERV 11 efficiency
7FPM-1104
Pleated FIlter, MERV 11 efficiency - for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod
CHARCOAL-CP20
20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40
40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids

Frequently bought together these options:

Part #
Qty
Description
PFPB-3-PASS
Delete 12 standard 6” MERV 11. Add 36 2” MERV11.
PFPB-95% ASHRAE
Delete standard 6” MERV 11 filters. Add 2” MERV 11 & 4” 95% ASHRAE MINIPLEAT.
PFPB-AD
Delete 12 standard MERV 11 filters. Add 12 each 2” MERV11 & 24”x24”x3” AD modules. Each module holds 30 lbs.charcoal, Total of 360 lbs. order separate. Adds 120 lbs. to ship weight.
PFPB-HEPA
Delete 12 standard 6” MERV 11 filters. Add 12 each 2” MERVII & 99.97%, 4” MINIPLEAT HEPA.
PFPB-MERV14-WASH
Delete 12 Standard MERV 11 Filters and Add 12 Pleated Filters (24 x 24 x 4) MERV 14 Synthetic Washable
PFPB-PREFILTER
Delete standard filter covers. Adds Prefilter assembly with 2-2472 2” POLY prefilter media. Adds 4” to depth.
Part #
Qty
Description
2KK1-2P14
KIT, (12) 2" MERV11 + (12) 4" MERV 14 (122 SQ.FT.)
Part #
Qty
Description
Casters
Caster Option with 6' out-riggers, usees heavy duty casters
Part #
Qty
Description
2KA1-2P11
Option A: Filter MERV 11, Pleated (24x24x2) MERV. Three Stage (Qty 36)
Part #
Qty
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10
Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
Part #
Qty
Description
VFD-KIT-1HP-115-230-3
1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3
2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3
3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
