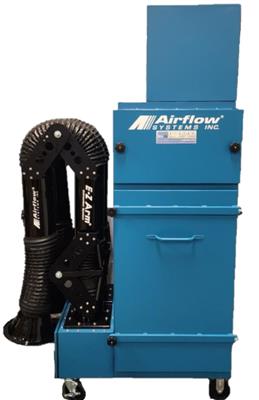

PAC91 Portable Air Scrubber - 1600 CFM

The PAC91 unit is ideal for flammable gases and volatile organic compounds. The typical flow rates vary between 650 to 1600 CFM.
The PAC91 has a patented self-supporting, flexible pickup hose. This hose is easily movable and is able to be positioned on all three axes which makes it versatile in capturing contaminants at the source. This unit can help comply with OSHA standards (when properly used and maintained) and fall in line with insurance regulations.

Available Options:

• Filter Options
• Extraction Arms
• Fan/Motor Upgrades or Options
• Variable Frequency Drives
• Sound Attenuation

• 16 ga. welded steel cabinet
• Side access doors
• Dustpan door
• 5" (125mm) casters
• Patented self-supporting pickup arm
• 10' long external adjustment on center and bottom joints
• ULTRA-SEAL filter sealing to prevent by-pass
• 10’ E-Z ARM® arm
• 2” (50mm) mesh pre-filters
• 95% polyester high-pressure bag filter, 88ft2
• 1.5 HP TEFC motor, 115/230/1 Hz, 17.0/8.5 amps
• ON/OFF switch
• Power cord (on 115v only)

• 115 Volt Power: Ability to plug into any standard circuit while maximizing total flow rate and usage around the facility. (3-Phase voltage optional)
• Complete, Pre-Engineered Unit: Guaranteed suitability. Versatile, easy to use, no installation required.
• Spark Proof Direct-Drive Blower: Higher static pressure, longer filter life, and greater reliability. No wear items such as pulleys or belts to replace.
• "Secure Seal" Filter Mounting: Eliminates contaminant bypass around filters.
• Efficient Source Capture: 99.5% filter efficiency produces cleaner air. (99.97% @ 0.3 micron with HEPA filter option)
• Fire/Melt-proof Metal Construction: No plastic structure. Avoids high priced replacement costs.
• Integrated Spark Deflector: Reduces fire risk in high sparking applications.
• Heavy Duty 25-ft. Power Cord: High visibility 12 gauge cord. Maximizes system portability and positioning during operation.

Top 5 contaminants/processes/applications:

• Plastic Smoke
• Grinding Dust
• Sanding Dust
• Coolant Mist (MUST USE CV OPTION)
• Carbon Dust (MUST USE HEPA FILTER)
• Crystalline Silica Dust (MUST USE HEPA FILTER)

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
