MP14 - 1400 CFM

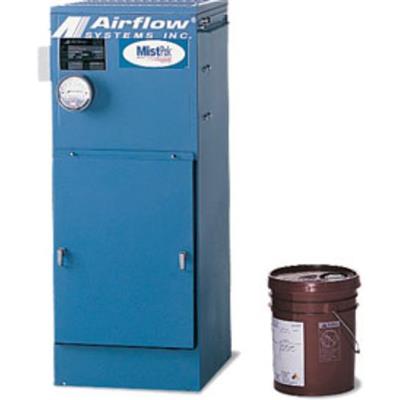

The MP14 Oil Mist Collector produces 1400 CFM with 95%+ filter efficiency and is a direct machine-mounted, self-draining system that is designed for single-unit metalworking applications.
FUNCTION
The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a vertical profile. This unit includes a 2" (50mm) aluminum mesh pre-filter and (3) Mist-Plus main filters. Mounting angles to hang or surface mount unit, and a 10" (250mm) bottom inlet only. It features a 2" (50mm) aluminum mesh pre-filter, a Mist-Plus primary filter, and a 1.5 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally to capture contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Multiple Filter types and Configurations
  • Sound Attenuation
  • Preventative Maintenance Pressure Gauges
  • Variable Frequency Drives
CONSTRUCTION
  • Includes filter access door on each side for left or right-hand applications
  • Acoustically lined blower cabinet
  • Max Door Opening: 19 ft ²
  • Ultra-Seal® filter mounting system
  • On/Off Switch for 115 Volt Units
  • One/Three Phase Motor

Specifications:
  • Construction: 18 Gauge welded steel cabinet with powder-coat finish
  • Blower Pkg (HP): 1.5 HP
  • Noise Level (dBA): 75 dBA
  • Electrical: 115/230/1/60, 13.2/6.6 amps
  • Nominal Air Flow (CFM): 1350
KEY CRITERA
  • Exclusive MistPlus® Containment Management System: Delivers over 95% filtration efficiency; reduces operating costs by extending maintenance cycles and filter life.
  • Baked-on Powder Coat Finish: Resists harsh industrial environments.
  • Front Access Filter Door: Eases filter access; reduces filter maintenance and changeout time.
  • Sloped Drain Pan: Facilitates reclamation of captured oil mist.
  • Lever Locking Filter Mounting: Eliminates contaminant bypass of filters.
  • Small Footprint: Compact cabinet requires minimal floor space; eases machine and wall mounting.
  • Continuous Draining: Provides for longer filter life.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Grinding sparks
  • CNC Machining
  • Lathe Work
  • Aerospace Machining
  • Cold Heading of Metals
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
MP14
MP14 industrial air cleaner with a 1.5 Hp TEFC motor 230/1/60 Hz.
MP14-2
MP14 industrial air cleaner with a 1.5 Hp TEFC motor 208-230V/3/60 Hz.
MP14-3
MP14 industrial air cleaner with a 1.5 Hp TEFC motor 575-600/3/60 Hz.

Part #
Description
MP14-2P
2" (50mm) Polyester Pad Option for Standard MP14 Unit.
MP14-EXAD
External adsorber module, 1000 cfm. 25 lbs. capacity.
  • Order charcoal separately
MP14-EXHE/AD
External 99.97% HEPA with external module, 25 lbs. capacity with 2" (50mm) polyester after-filter 750 CFM.
  • Order charcoal separately
MP14-DOP-XL
Extended Life DOP is an "A" frame assembly with 2 each 95% DOP vs 1 DOP in the EXDOP assembly, 1100 cfm.
MP14-HEPA-XL
Extended Life HEPA is an A frame assembly with 2 each 99.97 HEPA vs 1 HEPA in the EXHE assembly, 1100 CFM.
MP14-EXHE
External HEPA, 99.997% @ 0.3 Micron.

Part #
Description
MP14-PG-10
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
MP30-PG-10
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
MP4-PG-6
0-6" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part #
Description
2AU7-4707 (S-EXT)
S-EXT, Exhaust Silencer for MP14 (not available with EXHE, EXDOP, & EXAD).
MP14-EXDOP
External DOP, 95%, 800/1000 cfm. For PG-6 use 2PG6-HEPA
FREQUENTLY BOUGHT TOGETHER

Part #
Description
MP14-S-EXT
Exhaust silencer (Not available with EXHE, EXDOP, & EXAD).

Part #
Description
DM-113-06.0-104
6" (160mm)Ø Master Pur-SL Hose.
  • Super lightweight polyester/polyurethane with wire reinforcement
  • Very flexible and clear
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
DM-113-08.0-104
8" (200mm)Ø Master Pur-SL Hose.
  • Super lightweight polyester/polyurethane with wire reinforcement
  • Very flexible and clear
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
DM-113-10.0-104
10" (250mm)Ø Master Pur-SL Hose.
  • Super lightweight polyester/polyurethane with wire reinforcement
  • Very flexible and clear
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)

Part #
Description
HR-10-OM
10" (250mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-6-OM
6" (150mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-8-OM
8" (200mm)Ø Hose Ring to connect oil mist hose to CNC machine.

Part #
Description
2AF7-4001
95% MIST-PLUS ™ Filter (3 filters required / MP-14 unit) price per (1) filter.
2AF7-4002
2" (50mm) polyester pre-filter pad and frame, (18" x 17" x 2") .
2AF7-4004
Adsorber Module Option.
2AF7-4005
Oil mist louver for MP14.
2AF7-4010
MIST-PLUS ™ filter for MP14.
2AZ2-0016
2" (50mm) replacement polyester filter, pad only (18" x 17" x 2") - for MP14.
3FM7-4701
2 part Media Replacement PAK for 2AF7-4001 (MIST-PLUS ™).
  • (3) sets required per unit
3FM7-4702
Media Pack Refill Kit (Mist Plus II 97%) for MP-14 units.
  • (3) kits required / MP-14 unit
  • Each kit consists of (2) filter packs
7FA8-0006
2" (50mm) Aluminum Mesh pre-filter for MP14 Unit.
7FJ9-5004
95% @0.3 micron DOP Filter for MP14.
7FJ9-9004
HEPA, 99.97% filter for MP-14, PR01, MPH5, MPH10.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.
  • Suitable when the complaint is more of a mixed or sharp chemical odour, especially if there may be acidic, sulfur, ammonia/amine, aldehyde, or corrosive gas components.


Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
PRO 1-2AF7-4000
97% MIST-PLUS II filter, metal frame (3) required.
PRO 1-7FA8-0006
2" (50mm) Aluminum Mesh pre-filter for MP14.
