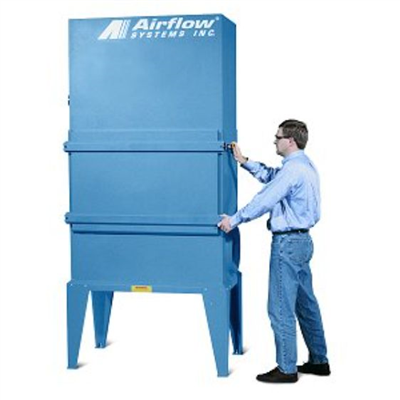

MP60 - 6000 CFM

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a vertical profile. It includes the new removal bottom sump with a 1.5" (40mm) drain, mounting angles to hang or surface mount, 24" high leg stand, and a 20" (510mm)Ø (max) inlet collar mounted on either side or on back or 18" (460mm) (max) collar on front. It features a 2" (50mm) aluminum mesh pre-filter, (8) Mist-Plus primary filter, and a 10 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines vertically for direct capture of contaminants and can be suspended from any suitable roof support strut.

Main Options:

• Multiple Filter types and configurations
• Sound Attenuation
• Preventative maintenance pressure gauges
• Variable Frequency Drives

• Includes filter access door on each side for left or right-hand applications
• Acoustically lined blower cabinet
• Max Door Opening: 80 ft ²
• Ultra-Seal® filter mounting system
• Three Phase Motor

Specifications:

• Construction: 12 Gauge welded steel cabinet with powder-coat finish
• Blower Pkg (HP): 10 HP
• Noise Level (dBA): 78 dBA
• Electrical: 208-230/460/575/3/60, 24/12/9.6 amps
• Nominal Air Flow (CFM): 6000

Dimensions (Inches):

• Width = 49
• Height = 110
• Depth = 29

• Exclusive Mist-Plus® Containment Management System: Delivers over 95% filtration efficiency; reduces operating costs by extending maintenance cycles and filter life.
• Welded Steel Cabinet: Eliminates contaminant escape common with bolt-on panel cabinets.
• Baked-On Powder Coat Finish: Resists harsh industrial environments.
• Front Access Filter Door: Eases filter access; reduces filter maintenance and changeout time.
• Sloped Drain Pan: Facilitates reclamation of captured oil mist.
• Lever locking Filter Mounting: Eliminates contaminant bypass of filters.
• 24" (610mm) Floor Stand: Stabilizes floor-mounted units; eases unit and facility maintenance.
• Continuous draining: Provides for longer filter life.

Top 5 contaminants/processes/applications:

• Grinding sparks
• CNC Machining
• Lathe Work
• Aerospace Machining
• Cold Heading of Metals

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
