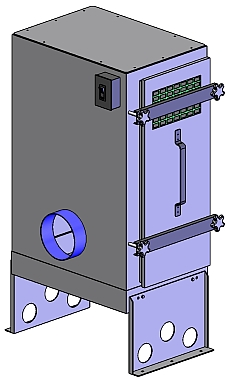

MistPac (600 CFM)

600 CFM Source capture industrial air cleaner. System is ideal for mixed DUST and MIST machining applications such as tool room or multipurpose machine shop applications.
FUNCTION
600 CFM Source capture industrial air cleaner. System is ideal for mixed DUST and MIST machining applications such as tool room or multipurpose machine shop applications.
CONSTRUCTION
18 ga. welded steel cabinet with powder-coat finish; includes Ultra-Seal® filter mounting system, removable side access door to filters and motor/blower compartment, (2) 8” (200mm) legs/rod hanging brackets for installation, a 3” (75mm) deep welded oil sump with 1.5” FPT drain, on-off switch and 6’ power cord for 115V units; 230/1 phase and 3 phase units are wired to a side junction box. Motor starter not included.

UNIT: 23”W x 39.75”H x 15.5”D

SHIP: 28”W x 46”H x 21”D
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
MistPak V2.0
450 cfm source capture industrial air cleaner with:
  • (1) 2" (50mm) impingement pre-filter
  • (1) 1" (25mm) aluminum mesh pre-filter
  • (1) 95% main filter (14 sq. ft. of media)
  • 1/2 Hp TEFC motor 115/230/1/60Hz (7.4/3.7 amps)
  • 6" (150mm)Ø welded inlet collar in front only (no side or back inlet)
MODEL65
400 cfm dry source capture industrial air cleaner with (1) 2" and (1) 1" aluminum mesh prefilters, (1) 95% main filter (14 sq. ft. of media), 1/2 Hp TEFC motor 115/230/1/60Hz (7.4/3.7 amps). and a 6" dia. welded inlet collar in front only (no side or back inlet).

Part #
Description
AD
Adsorber Module Option for Standard MIST-PACv2.0 Unit.
v2.0-95DOP
95% DOP Internal HEPA Option for Standard MIST-PACv2.0 Unit.
v2.0-CV
Chevron Filter Option for Standard MIST-PACv2.0 Unit.
v2.0-EXAD
External Adsorber Module Option for Standard MIST-PACv2.0 Unit.
v2.0-EXDOP
External 95% DOP Filter Option for Standard MIST-PACv2.0 Unit.
v2.0-EXHE
External 99.97% HEPA Filter Option for Standard MIST-PACv2.0 Unit.
v2.0-HEPA
99.97% Internal HEPA Option for Standard MIST-PACv2.0 Unit.

Part #
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10-1
Differential pressure gage.
  • Range: 0-10in w.c.
  • Accuracy: ±5%
  • Temperature range 20 to 120 ºF
v2.0-DL
Drain Loop Kit. Includes 1.5 x 3/4 reducer fitted with 3/4 copper p-trap pipe with fittings and instructions.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
v2.0-6P05
5'L x 6" (150mm)Ø Positioner Arm with Mounting Plate Option for Standard MIST-PACv2.0 Unit.
v2.0-6P08
8'L x 6" (150mm)Ø Positioner Arm with Mounting Plate Option for Standard MIST-PACv2.0 Unit.

Part #
Description
1PL3-4006
Slotted Hood Plate for MODEL-65 MISTPAK v2.0
v2.0-SH
Slotted Hood Plate Option for Standard MIST-PACv2.0 Unit

Part #
Description
v2.0-3 PHASE
1/2HP 3 Phase Standard Blower Option for Standard MIST-PACv2.0 Unit
v2.0-3/4HP
3/4HP 1 Phase or 3 Phase High Pressure Option for Standard MIST-PACv2.0 Unit

Part #
Description
2AF2-2001
2" (50mm) polyester pad & Frame 12" x 20" x 2".
2AF2-2101
2" (50mm) Impingement Filter - Washable.
2AF4-7100
CHEVRON ® impingement filter for V2.0.
2AF9-0008
Adsorber module, v-bank, refillable, holds 7 lbs. of charcoal. AD.
2AZ2-0011
2" (50mm) Polyester Pre-filter (Pad Only) for Mist Pac V 2.0., Model 65, & Mini Vac. Min.
  • Order QTY: (10)
2KT6-4715
KIT, EXT HEPA, MST2, RETRO.
  • Kit includes (2) exhaust Blank Off Plates per kit
7FA8-0401
1" (25mm) Aluminum Mesh Filter - Washable.
7FA8-0402
2" (50mm) Aluminum mesh filter - 20" x 10" x 2".
7FH9-9406
99.97% HEPA Filter wood frame (10 x 20 x 6)
7FJ9-5406
95% DOP HEPA Filter, metal frame
7FJ9-9406
HEPA, 99.97% filter, metal frame internal and external use.
7FP3-0402
2" (50mm) Pleated Filter, 30% eff. PL. (10" x 20" x 2").
7FP9-0406
10" x 20" x 6" 95% media filter, steel frame.
7HD4-3001
6" (150mm)Ø black hose. Machining UL94 Rated. For MISTPAK v2.0.
  • Price per foot
7HD4-3003
Standard Hose for 1200 VOM. MODEL-65, 1200-DRY, MISTPAK v2.0.
  • Price per foot
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.
  • Suitable when the complaint is more of a mixed or sharp chemical odour, especially if there may be acidic, sulfur, ammonia/amine, aldehyde, or corrosive gas components.


Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
