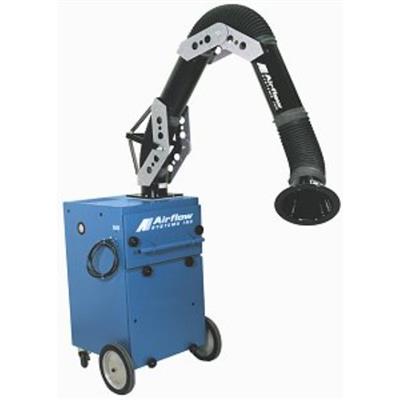

MiniPac Portable Air cleaner - 1000 CFM

The MiniPac's narrow design makes it easy to move around, is a versatile Plug & Play option, and comes with a self-supporting external arm for maximum ease and performance, with a flow rate of 650 to 1000 CFM (which can vary with the number of arms chosen).

The MINI-PAC can also be mounted in a stationary location if desired by ordering it with the optional hopper and stand kit.

Available Options

• Extraction Arms
• Filter Options
• Sound Attenuation
• Preventative Maintenance Pressure Gauges
• Variable Frequency Drives

• 16 ga. welded steel cabinet with a powder-coated finish
• An access door to filters
• A removable access panel to motor/blower compartment
• 10’ power cord (115V units only)
• An on-off switch for 115V units; 230/1 phase
• The 230/1 & 3 phase units are wired to a side junction box. (Motor starter not included)

This portable air cleaner comes standard with:

• One (1) 7’ long, 7" (175mm)Ø OR two (2) 8' or 10' long, 4" (100mm)Ø E-Z Arm® high flow extractor
• One (1) 2” (50mm) aluminum mesh pre-filter
• One (1) 95% bag filter (28ft² of media)
• A ¾ HP TEFC motor, 115/230/1/60Hz (9.8/4.9 amps)
• 5” (125mm) casters, (two fixed and two swivels with brakes)

• 115 Volt Power: Ability to plug into any standard circuit while maximizing total flow rate and usage around the facility (3-Phase voltage optional).
• Complete, Pre-Engineered Unit: Guaranteed suitability. Versatile, easy to use, and no installation required.
• Spark Proof Direct-Drive Blower: Higher static pressure, longer filter life, and greater reliability. No wear items such as pulleys or belts to replace.
• "Secure Seal" Filter Mounting: Eliminates contaminant bypass around filters.
• Efficient Source Capture: 99.5% filter efficiency produces cleaner air. (99.97% @ 0.3 micron with HEPA filter option)
• Absorption Filter: Refillable filter to control gases and odors; available with a variety of sorbents
• 65-Watt Halogen Light Kit: Improves worker visibility
• Fire/Melt-proof Metal Construction: No plastic structure. Avoids high priced replacement costs.
• Integrated Spark Deflector: Reduces fire risk in high sparking applications.
• Heavy Duty 25-ft. Power Cord: High visibility 12 gauge cord. Maximizes system portability and positioning during operation.

Top 5 contaminants/processes/applications:

• Welding Smoke

• Grinding Dust

• Oxyfuel Cutting Smoke

• Flammable Gases*

• Volatile Organic Compounds*

• * when used with the appropriate filters and operating procedure

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
