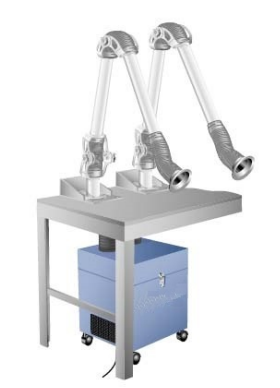

Mini Flex - (12''L x 13''W x 20''H, 2xØ3 inlet @ 100 CFM)
These lightweight units will go anywhere. Easily used on its own or paired with a table-mounted extraction arm, The unit quickly removes harmful soldering fumes from the breathing and work zone
FUNCTION
CONSTRUCTION
Soldering Fume Collector with a (1) 1" (25mm) Poly Filter, (1) 99.97% HEPA filter, 1" (25mm) charcoal filter, a 200 Watt motor, 115/1/60Hz (0.85 amps), aluminum hood, and (2) 3" x 42" long hose.
CONSTRUCTION
16/18 ga. Welded steel cabinet with white finish. Includes filter access through removable top assembly, ON/OFF rocker switch, 8' long power cord with running light, and acoustical silencing foam.
BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
FUME-PAKv2.0
Standard FUME-PAK Unit. Stainless T16 Weld/Soldering fume collector with:
- (1) 1" (25mm) Poly Filter with Plastic Frame - (12"x12"x1)
- (1) 99.97 HEPA filter (12x12x4)
- 200 watt motor, 115/1/60Jz (0.85 amps)
- Plastic Hood and 3" x 30" long hose, with black handle for carrying
Part #
Description
FUME-PAK v 2.0-95% ASHRAE
95% ASHRAE filter in place of 99.97% HEPA filter.
P-096-CHARCOAL
Charcoal Filter for MINI FLEX & Clean-Air 200.
P-096-PRE
Pre-Filter for Mini Flex & Clean Air 100/200.
Part #
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge.
3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
Part #
Description
3AA3
Option - 3" (75mm) arm assembly. 42" long (26" COMPRESSED, 42" EXTENDED) with metal internal support, complete with:
- Universal mounting bracket (up, down, or thru table) plenum assembly
- 3" (75mm)Ø White plastic hose
- 3 x 6 white plastic hood
3AA5
Option - 3" (75mm) arm assembly, 60" long (42" COMPRESSED, 60" EXTENDED) with metal internal support, complete with:
- Universal mounting bracket (up, down, or thru table) plenum assembly
- 3" (75mm)Ø White plastic hose
- 3" x 6" white plastic hood
FREQUENTLY BOUGHT TOGETHER
Part #
Description
7PH5-2008
Rubber band. Clamp cover. White. 3 DUST / FUME ARM.
Part #
Description
2AF1-0003
Poly pre-filter (12" x 12" x 1") filter with metal frame.
7FC5-0402
1" (25mm) charcoal filter. (10" x 10" x 1").
7FJ9-9002
HEPA, 99.97% filter
- Standard filter for Fume Pak
7FP3-0802
1" (25mm) pleated filter, 30% efficiency.
7FP9-0001
90-95% ASHRAE filter & frame.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.
Target Contaminants:
Target Contaminants:
- Hydrocarbons
- VOC's
- Oxides of sulfur
- Formaldehyde
- Nitric Oxide
- Hydrogen Sulfide
- Lower molecular weight
- Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.
Target Contaminants:
Target Contaminants:
- Hydrocarbons
- VOC's
- Oxides of sulfur
- Formaldehyde
- Nitric Oxide
- Hydrogen Sulfide
- Lower molecular weight
- Aldehydes & organic acids
P-096-HEPA
HEPA for Mini Flex & Clean Air 100/200.
