Model

02-009

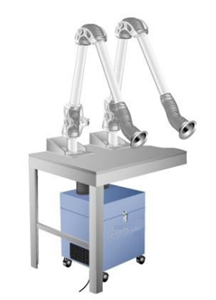

Mini Flex - (12''L x 13''W x 20''H, 2xØ3 inlet @ 100 CFM)

These lightweight units will go anywhere. Easily used on its own or paired with a table-mounted extraction arm, The unit quickly removes harmful soldering fumes from the breathing and work zone

Function:

Soldering Fume Collector with a (1) 1" (25mm) Poly Filter, (1) 99.97% HEPA filter, 1" (25mm) charcoal filter, a 200 Watt motor, 115/1/60Hz (0.85 amps), aluminum hood, and (2) 3" x 42" long hose.

Construction:

16/18 ga. Welded steel cabinet with white finish. Includes filter access through removable top assembly, ON/OFF rocker switch, 8' long power cord with running light, and acoustical silencing foam.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
PG-10 2"H x 2"W x 2"D 2 lbs
P-096-PRE "H x "W x "D 0 lbs
P-096-CHARCOAL "H x "W x "D 0 lbs
LEV-PG-FM-01 6"H x 6"W x 8"D 3.25 lbs
LEV-MC-PG-5 13"H x 12"W x 13"D 3 lbs
FUME-PAKv2.0 27"H x 18"W x 31"D 52 lbs
3AA5 "H x "W x "D 0 lbs
3AA3 50"H x 70"W x 70"D 50 lbs

Part # Qty Description
FUME-PAKv2.0 Standard FUME-PAK Unit. Stainless T16 Weld/Soldering fume collector with:
  • (1) 1" (25mm) Poly Filter with Plastic Frame - (12"x12"x1)
  • (1) 99.97 HEPA filter (12x12x4)
  • 200 watt motor, 115/1/60Jz (0.85 amps)
  • Plastic Hood and 3" x 30" long hose, with black handle for carrying

Part # Qty Description
FUME-PAK v 2.0-95% ASHRAE 95% ASHRAE filter in place of 99.97% HEPA filter.
P-096-CHARCOAL Charcoal Filter for MINI FLEX & Clean-Air 200.
P-096-PRE Pre-Filter for Mini Flex & Clean Air 100/200.

Part # Qty Description
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01 Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.

Part # Qty Description
3AA3 Option - 3" (75mm) arm assembly. 42" long (26" COMPRESSED, 42" EXTENDED) with metal internal support, complete with:
  • Universal mounting bracket (up, down, or thru table) plenum assembly
  • 3" (75mm)Ø White plastic hose
  • 3 x 6 white plastic hood
3AA5 Option - 3" (75mm) arm assembly, 60" long (42" COMPRESSED, 60" EXTENDED) with metal internal support, complete with:
  • Universal mounting bracket (up, down, or thru table) plenum assembly
  • 3" (75mm)Ø White plastic hose
  • 3" x 6" white plastic hood

Frequently bought together these options:


Part # Qty Description
7PH5-2008 Rubber band. Clamp cover. White. 3 DUST / FUME ARM.

Part # Qty Description
2AF1-0003 Poly pre-filter (12" x 12" x 1") filter with metal frame.
7FC5-0402 1" (25mm) charcoal filter. (10" x 10" x 1").
7FJ9-9002 HEPA, 99.97% filter
  • Standard filter for Fume Pak
7FP3-0802 1" (25mm) pleated filter, 30% efficiency.
7FP9-0001 90-95% ASHRAE filter & frame.
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
P-096-HEPA HEPA for Mini Flex & Clean Air 100/200.
