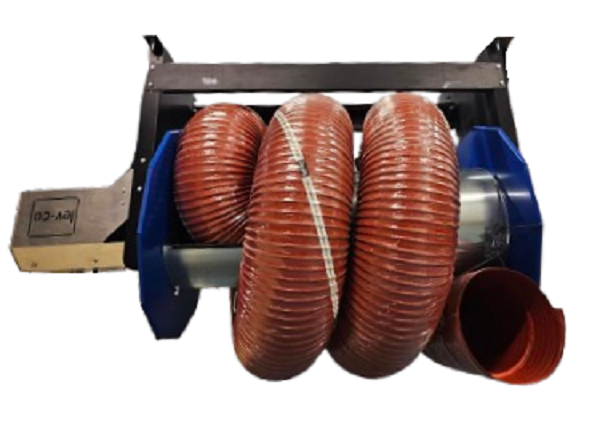

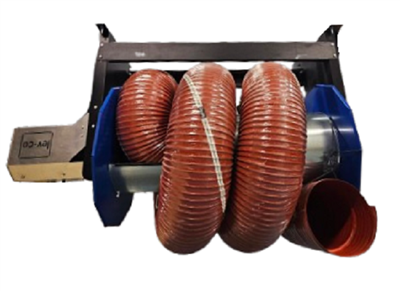

Motorized Hose Reel - Ø 10''/12''/14'' hose up to 35' in length

By utilizing these reels and their compatible accessories, you ensure that exhaust gases, dusts, VOCs, and fumes — are captured right at the point of origin. The system is built to withstand high flowrates, extreme temperatures, high pressures, and abrasive conditions — making it ideal for continuous-duty, 24/7, heavy-duty operations. The reel’s motorized mechanism allows for fast, safe deployment and retraction of heavy-duty hoses and nozzles — reducing trip hazards, improving ergonomics, and supporting a cleaner, safer workspace. This solution empowers operators with the tools to maintain a healthy working environment and meet demanding industrial requirements with confidence. Main Options include:

• Ambient Temperature Hose: suitable for temperatures up to 150º F
• Low Temperature Hose: suitable for temperatures up to 350º F
• High Temperature Hose: suitable for temperatures of 850º F
• Ultra High temperature: suitable for temperatures up to 2000º F
• Direct Mount Fans between 1HP to 30HP
• Overhead Stack Adapters
• Variable Frequency Drives
• Horizontal Boom Extensions

NB: This reel is also an excellent solution for heavy welding, gouging, plasma, and flame cutting.

The hose reel is constructed from heavy-gauge (10-18 ga), powder-coated/galvanized steel for maximum durability in harsh industrial environments. It features a 120V high-torque 200 NM electric motor rewind system for smooth hose retraction and deployment. The motor is mounted internally, draws a maximum of 790 Watts at 6.6 amps, and provides access to 12 rotations of hose. The drum is supported by a motor-mounted sealed ball bearings on one end and a laser-cut Teflon bearing on the duct side, ensuring long service life with minimal maintenance.

The hoses are high-temperature rated, reinforced with a steel wire helix and abrasion-resistant outer cover. All fittings are temperature- and chemical-resistant, with available options for tailpipe adapters, rubber nozzles, and hoods that are available both off the shelf and purpose-built. The entire assembly is designed to operate in high-flow, high-temperature exhaust applications, including those exceeding 850°F, and is suitable for continuous-duty 24/7 use. In addition to exhausting contaminated air, Patriot Hose reels can be used for exhausting and supply clean air to any indoor environment.

Note: The Hose will be shipped in a separate box unless stated otherwise

• Space Saving: The hose reel is capable of holding up to 37'/32'/27' feet of 10"/12"/14" hose in a compact package
• Perfect for bus stations, garages, or service stations
• Easy Installation: Saves money on the need for an third party contractor
• Hoods and nozzles weighing up to 44 lbs can be secured to end of the hose.
• Additional non-retracting hose lengths can be added to the reel
• Available as either wall, ceiling, or arm mounted, to accommodate multiple configurations
• Versatile: With the use of flexible hose, our system can be manipulated for various exhaust configurations, including stack exhaust, and tailpipe

Top 5 contaminants/processes/applications:

• Car Exhaust Fumes
• Diesel Exhaust Fumes
• Welding Fumes
• Arc Air (Air Arcing) sparks, fumes, and smoke
• Lancing sparks Fumes and smoke
• Plasma Cutting and Gouging smoke, fumes and sparks
• Chemical Fumes
• Grinding Sparks

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
