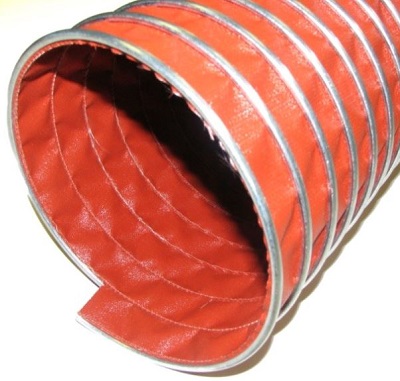

Silicon Fiberglass Hose 600° F (4-16''Ø 2ply Bright Orange)

Flexible high temperature hose (600° F continuous) is ideal for vehicle exhaust gasses and other high temperature applications. Available in sizes from 4" to 16" diameter.
FUNCTION
Silicone Fiberglass duct suitable for stationary high temperature 600° F exhaust control. 2-ply Silicone/Fiberglass Hose, (2) plies for added service life. A popular style for stationary high temperature exhaust control applications. *NOT for use with garage hose reels.

CONSTRUCTION
  • Red silicone coating
  • Fiberglass cloth
  • High temperature/chemical application
  • High pressure rated
  • Flame retardant
  • Extremely tear resistance
  • Low smoke
  • Water and oil resistance
  • Exterior galvanized steel helix
  • No glues or adhesive
  • Excellent for welding exhaust application
  • Excellent resistance against molten splatter
  • Manufactured in standard 25' lengths
  • Custom lengths available on request

KEY CRITERA
External Wear Strip: Designed for durability, the external wear strip is perfect for applications where the hose will be dragged across surfaces, offering superior protection against abrasion and extending the hose's lifespan
Lightweight: Exceptionally easy to handle and maneuver, this hose is an excellent choice for use with high-temperature extraction arms, providing flexibility and ease of operation without sacrificing performance
Low Cost:Offering exceptional value, this hose ranks among the most affordable options in the 600° F temperature range, making it a budget-friendly solution without compromising on quality or reliability
4 to 1 Compression Ratio:With its 4:1 compression ratio, this hose can be conveniently stored in a compact form, saving valuable space while maintaining its effectiveness and flexibility when expanded for use

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Welding Fumes
  • Vehicle Exhaust
  • Gasses
  • High Temperature Air
  • VOCs
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
PT-SFH-4
Silicone fiberglass hose 4" (100mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-5
Silicone fiberglass hose 5" (125mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-6
Silicone fiberglass hose 6" (150mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-160
Silicone Fiberglass Hose 6.33" (160mm)Ø - not suitable for hose reels.
PT-SFH-8
Silicone fiberglass hose 8" (200mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-10
Silicone fiberglass hose 10" (250mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-12
Silicone fiberglass hose 12" (300mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-14
Silicone fiberglass hose 14" (350mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-16
Silicone Fiberglass Hose 16" (400mm)Ø, not suitable for hose reels - Sold per ft. 25' min.
