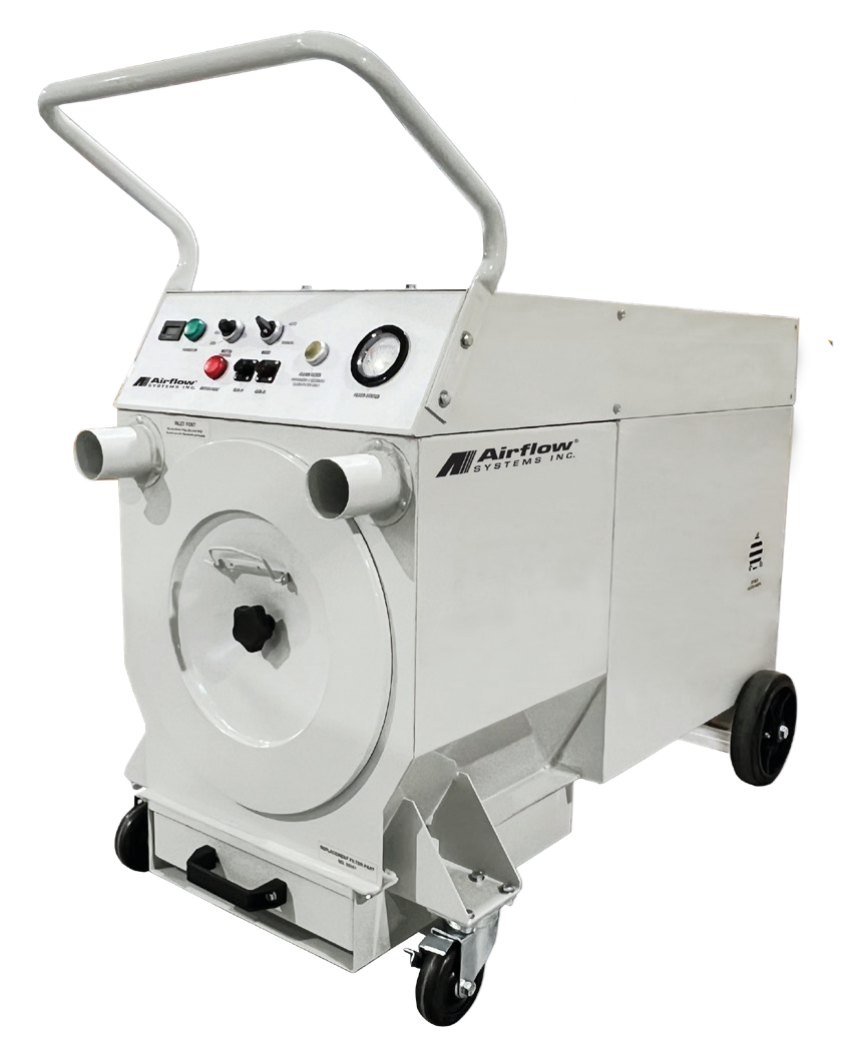

FVH Series - High Vacuum Fume Extractor

The FVH1 and FVH2 are engineered to capture hazardous weld fumes directly at the torch, eliminating exposure before contaminants spread into the workplace. The FVH1 powers a single ErgoMax MIG gun, while the FVH2 supports two guns simultaneously, making it adaptable for small shops or large-scale continuous welding operations. Both models are also configurable for robotic and automated welding setups, ensuring comprehensive fume extraction coverage.

Operators benefit from intelligent features such as an auto/manual switch for flexible operation, current-sensing remote start, and a 3-speed motor control for adjustable vacuum performance. An onboard differential pressure gauge, service indicator light, and hour meter simplify filter monitoring and maintenance scheduling, while the unique vibration/compressed-air cleaning system maximizes filter lifespan and consistent performance.

The FVH’s design combines portability with heavy-duty construction. A compact, low-profile cabinet provides a stable base that can even accommodate wire feeder mounting. Quick-lock dust trays make disposal fast and clean, and large 2.5” inlets ensure sufficient airflow for single or dual-gun setups. With a noise level of just 78 dB at 5 feet, it operates quietly even in high-demand environments.

Main options include:

• 300A, 400A, and 500A ErgoMax MIG Guns
• Flexible and Direct-Connect Automatic Welding Torches
• Custom Robotic Extraction Kits
• FumeVac EZ-Reach Weld Boom & ErgoBoom Torch Extension Systems
• Protective Gun Hose Covers (3 ft, 7 ft, 10 ft)
• Lightweight PVC or heavy-duty polyurethane vacuum hoses
• Vacuum hose adapters, reducers, and elbows
• Replacement Ultralife filter media (158 ft², MERV 15 FR)

The FVH is built with a rugged steel cabinet finished in durable powder coating to withstand industrial use. It comes equipped with heavy-duty wheels and casters for easy maneuvering across shop floors. Dimensions are L-38” x W-24.5” x H-30” (965 x 622 x 762 mm), with a weight range of 226–255 lbs (103–116 kg). A standard 25 ft (7.6 m), 4-conductor 460V input power cable provides flexible installation. The system features maintenance-free, high-performance brushless motors with thermal and overload circuit protection. Filtration is handled by a 158 ft² (14.8 m²) MERV 15 FR Ultralife cartridge, rated for 99.9% efficiency at 0.5 µm, supported by a push-button manual cleaning system that extends filter life. The quick-locking dust tray simplifies debris disposal, while the compact cabinet allows for integration into confined spaces or direct equipment mounting.

• Continuous Duty Reliability: Brushless motor design ensures long service life without the maintenance associated with brush-type systems.
• High Extraction Power: Up to 800 CFM free airflow and 180” w.g. vacuum levels for superior fume capture.
• Superior Filtration: MERV 15 FR Ultralife media with 99.9% efficiency at 0.5 µm protects against fine weld fumes.
• Flexible Configurations: Single- or dual-gun setups, robotic welding, or torch extensions.
• Ease of Use: Auto/manual modes, current sensing remote start, push-button filter cleaning, and quick-lock dust tray.
• Compact & Mobile: Heavy-duty wheels and casters with a low-profile cabinet for tight spaces.
• Quiet Operation: 78 dB at 5 feet for comfortable use in busy workshops.

Top 5 contaminants/processes/applications:

• Weld Fumes
• Hexavalent Chromium
• Manganese
• Robotic Welding Fumes
• Manual MIG Welding Fumes
• Automated Torch Welding Fumes

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
