FM1000 - 1000 CFM

The FM1000 Ambient Air Cleaner comes complete with (1) ½” aluminum mesh pre-filter, (1) 95% main filter (14ft²), (1) ½” charcoal after-filter, and an ODOR/EX deodorizer.

For your safety, each HEPA H14 filter is delivered with a certificate and is leak tested. The efficiency is over 99.995% on particles and viruses which are under/over 0.16 micrometer (down to 0.01 micrometer). The filters are manufactured in Europe by a HEPA H14 specialist, well known all over the world. This unit works on the principle of "clean-to-less-clean" air movement, which supplies clean filtered air to the occupants breathing zone through a pre-engineered diffusion hood explicitly designed for the application. An ultra-low noise fan draws the room air in at floor level where the air is least clean. The air is drawn in by a variable speed, centrifugal fan that allows the operator to control the flow based on the number of people in the room. The air passes through a silenced chamber engineered to dampen the associated noise generated by the air movement. A multi-stage filter module filters the contaminated air containing virus particles as small as 0.1 Micron (MicroMeters) to a purity level of 99.995%. Clean filtered air is returned to the indoor space through a low-noise duct and diffuser hood.

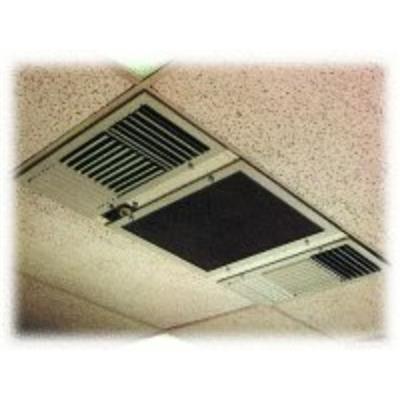

Mounting configurations for this particular unit are completely above the ceiling with a T-bar mount, and can be mounted flush with the ceiling tiles. The FM1000 features washable and/or disposable filters.

Main options:

• Filter Options
• Fan Upgrades
• Motor Upgrades
• Variable Frequency Drives

• 18 Ga. welded steel cabinet
• Powder-coat finish
• (2) direct drive, 9” (230mm) centrifugal blowers
• (2) 1/10 HP motors, 115/1/60Hz (2.6 amps each), 3 speed control
• Running light
• (2) curved blade, 3-way adjustable, outlet grilles
• (1) metal egg crate intake grille
• Motor wired to junction box on inside of unit

• Complete, Above-Ceiling Unit: Installs completely concealed; quiet operation.
• Direct-Drive Blower: Long filter life and greater reliability; no belts or pulleys to replace.
• Non-Electrostatic Operation: High reliability, low maintenance.
• Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
• High-Efficiency Filter Media: Provides maximum collection and filtration effectiveness.
• ODOR/EX Cartridge Filter: Replaceable unit adjustable to varying environments to provide room deodorization as well as odor control.
• Disposable/Cleanable Media Filters: Can be vacuumed or replaced when dirty, no tools needed.
• Commercial Duty Cabinet With Textured Epoxy Finish: Durable protection, aesthetic appeal.
• Adjustable Exhaust: Two Adjustable 3-Way exhaust grills for improved air circulation.

Top 5 contaminants/processes/applications:

• Food Odours
• Atmospheric Dust
• Food and Pharma Dusts
• Offices
• Break Rooms

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
