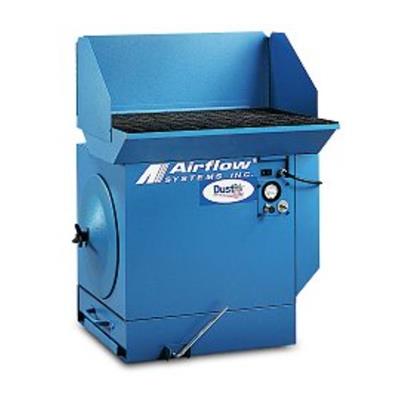

DTH800 - 2'D x 2.7'W

DTH800 - A 800 CFM (150 FPM downdraft velocity) downdraft table designed with a self-cleaning filter system, Integrated fan (TEFC direct drive class II motor), and external dust tray.
FUNCTION
Draws dust, fumes, and odors away from the workers’ breathing zone without hindering the workers' movement.

Standard panel unscrews from side, for easy filtration access.

Available with:
  • Filter Options
  • Hood Options
  • Localized Enclosures and Shields
  • Fan/Motor Upgrades or Options
  • Silencer Option
  • Preventative Maintenance Pressure Gauges
  • VFD Options
  • Fan, Light, and Other Electrical Accessories
CONSTRUCTION
  • 12/14/16 gauge welded steel cabinet with powder finish
  • Includes removable end cap for easy access to filter
  • Removable back panel for access to direct drive motor/blower compartment
  • 25 FT 12 gauge power cord (115V units only)
  • On/off switch (115V units only)
  • Wired to an external junction box. (Motor starter not included) (230/1 & 3-Phase units only)
  • 24" D x 32" W
KEY CRITERA
  • Integral Collection Area and Work Surface: Draws contaminants away from workers’ breathing zone without hindering movement; easily moved to any location in facility.
  • Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Compressed Filter Mounting: Eliminates contaminant bypass of filters.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Dust Drawer: Easily remove external dust drawer with positive lever lock.
  • Low Profile Cabinet: Easy access speeds filter changeout and maintenance.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Welding
  • Composite Dust
  • Deburring Dust
  • Grinding Particles
  • VOC gases
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
DTH-800-1
800 cfm downdraft table, 24" deep x 32" wide work surface at 33" height, 150 fpm downdraft velocity, with:
  • 12" (300mm) tall removable side/back shields & painted steel grate panels
  • (1) CLEAN-2® cartridge filter (150 sq.ft. of media)
  • Manual VIBRA-PULSE ® filter cleaning systems
  • 1HP TEFC motor, 115/230/1/60 Hz (12/6 amps)
  • Removable 5 gallon external dust drawer - 71 dBA
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
DTH-800-2
800 cfm downdraft table, 24" deep x 32" wide work surface at 33" height, 150 fpm downdraft velocity, with:
  • 12" (300mm) tall removable side/back shields & painted steel grate panels
  • (1) CLEAN-2® cartridge filter (150 sq.ft. of media)
  • Manual VIBRA-PULSE ® filter cleaning systems
  • 1HP TEFC motor, 230/460/3/60 Hz (12/6 amps)
  • Removable 5 gallon external dust drawer - 71 dBA
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
DTH-800-3
800 cfm downdraft table, 24" deep x 32" wide work surface at 33" height, 150 fpm downdraft velocity, with:
  • 12" (300mm) tall removable side/back shields & painted steel grate panels
  • (1) CLEAN-2® cartridge filter (150 sq.ft. of media)
  • Manual VIBRA-PULSE ® filter cleaning systems
  • 1HP TEFC motor, 575/3/60 Hz (12/6 amps)
  • Removable 5 gallon external dust drawer - 71 dBA
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part #
Description
DTH-800-EXAD
External adsorber module. 18 lbs. capacity; 550/650 cfm.
  • Order charcoal separately - Adds 4" (100mm) to overall depth and 10 lbs. to ship weight
DTH-800-EXDOP
External DOP, 95%, 550/650 cfm.
  • Adds 4" (100mm) to overall depth and 10 lbs. to ship weight
DTH-800-EXHE
External HEPA, 99.97%, 550/650 cfm.
  • Adds 4" (100mm) to overall depth and 10 lbs. to ship weight
DTH-800-EXT HE/AD
Kit using EXTERNAL HEPA and EXTERNAL AD options.
DTH-800-UCP
ULTRACLEAN-PLUS ® cartridge Filter Option for Standard DTH-800 Unit.

Part #
Description
DTH-800-PG-5
0-5" Minihelic dial pressure gauge, approximately 5" (125mm)Ø size.
  • Flush mounted
  • NOT RECCOMENDED WITH EXHE, EXAD, OR EXDOP OPTIONS
DTH-800-PG-6
0-6" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part #
Description
2FR5-1001
Cartridge, AD, refillable with 1" (25mm) pre-filter pad & 1" (25mm) after-filter pad.
  • Holds 15 lbs. of charcoal
DCH-1-EXP VENT
Explosion vent door for single and double cartridge collectors (PCH-1, ALH-1, DCH-1, DTH-1,DS-1 & Mini-Pac).
DTH-800-AD
Internal AD option: AD cartridge (15 lbs. capacity) with 1" (25mm) polyester pre-filter and after-filter in place of CLEAN-2 ® cartridge & VIBRA-PULSE ® cleaning system.
  • Order charcoal separately
DTH-800-BF3-LIGHT
Enclosure, 36" high, with sides, back, & top, plus 40 watt, Dust-Tite, 115 volt work light. Replaces standard 12" (300mm) tall side & back shields.

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
DTH-800-FD
FIBERDUST cartidge filter in place of lean-2 cartridge.
DTH-800-MAT
Soft Top mat, 12" x 12" tiles.
DTH-800-REG
Regulator Gauge Option for Standard DTH-800 Unit.
DTH-800-ALUM
Aluminum grate panels in place of steel grate panels - 24" x 32".
DTH-800-CASTERS
Adds 8" (200mm) fixed wheels on front, 5" (125mm) swivel casters on rear, & full width handle.
  • Adds 3.25 to table height
DTH-800-COATED
Vinyl Coated Bar Grate Option for Standard DTH-800 Unit.
DTH-800-FIBER
Fiberglass Bar Grates Option for Standard DTH-800 Unit.
DTH-800-STEEL
Steel grate in place of standard panels - 24" x 32"
DTH-800-TABLE EXT
Table extension, full width with solid surface, 9" (230mm) deep.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
DT-EN-1
Aluminum/Acrylic enclosure complete with top back and side acrylic panels for improved visibility & capture of fumes and dust (3'H X 32"W X 24"D)

Part #
Description
LEV-TBL-DTL-2
2' Dust-tight Light - 120V/1/60.

Part #
Description
DTH-800-S-EXT
External Silencer Option for Standard DTH-800 Unit.

Part #
Description
DTH-800-1.5HP-1
1.5 Hp TEFC motor, 115/208-230/1/60 Hz, high pressure, spark resistant, backward incline blower. 900 cfm. 150 fpm downdraft velocity.(15/7.9-7.5 amps). 74 dBA.
DTH-800-1.5HP-3
1.5 Hp TEFC motor, 208-230/460/575/3/60 Hz, high pressure, spark resistant, backward incline blower. 900 cfm. 170 fpm downdraft velocity. (4.9-4.6/2.3 amps).

Part #
Description
1PN6-1749
Aluminum Grate Panels. Price per each (6 required for DTH800) DUSTPAK ALH-1, DUSTPAK ALH-2, DUSTPAK AL-6, DUSTPAK DTH-800, (9 required for DUSTPAK DTH-1700.)
2AF2-0011
2" (50mm) Polyester Frame & Pad. (18" x 24" x 2").
2AF9-0001
Adsorber module, flat, refillable. (18" x 24" x 2½").
  • Holds 18 lbs. of charcoal
  • Charcoal sold separately
2AZ1-0012
1" (25mm) Polyester Pad, pre-filter for the outside of the AD cartridge. (11½" x 54" x 1").
2AZ1-0013
1" (50mm) Polyester Pad, after filter for the inside of the Internal AD cartridge. (11½" x 36" x 1").
2AZ2-0013
2" (50mm) Polyester Filter, pad only, (18" x 24" x 2").
7FJ9-5003
95% @ 0.3 microns DOP Filter for PCH/DCH/DTH/ALH units.
7FJ9-9003
99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - METAL FRAME.
7FR0-2021
Cartridge for PCH-1, PCH-2, DCH-1, DCH-2, DC-4, DC-6, DC-8, DC-12, DTH-800, DTH-1700 and DT3000v2.0.
  • Due to the amount of customers not knowing about or using the Vibra-Pulse tubes, these filters will now include The Vibra-Pulse tube. The proper replacement of this Vibra Pulse tube greatly increases filter life and helps maintain flowrate thus resulting in increase worker protection from harmfull fumes
7FR0-2027
Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
7FR0-5020
OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
CHARCOAL-20
20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-40
40 lbs. of non-recycled coconut shell-based activated charcoal.
CS-350-999
CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube
7FR0-2020
Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units, complete with Vibra Pulse Tube
7FR0-2020-OEM
Replacement Filter.
7FR0-2029
Cartridge filter, Spunbond, Spark-resistant. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
7FJ9-9003-W
99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - WOOD FRAME.
CHARCOAL-15
15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
