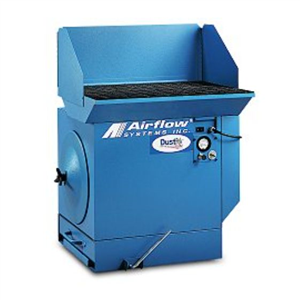

DTH800 - 2'D x 2.7'W

DTH800 - A 800 CFM (150 FPM downdraft velocity) downdraft table designed with a self-cleaning filter system, Integrated fan (TEFC direct drive class II motor), and external dust tray.

Function:

Draws dust, fumes, and odors away from the workers’ breathing zone without hindering the workers' movement.

Standard panel unscrews from side, for easy filtration access.

Available with:
  • Filter Options
  • Hood Options
  • Localized Enclosures and Shields
  • Fan/Motor Upgrades or Options
  • Silencer Option
  • Preventative Maintenance Pressure Gauges
  • VFD Options
  • Fan, Light, and Other Electrical Accessories

Construction:

  • 12/14/16 gauge welded steel cabinet with powder finish
  • Includes removable end cap for easy access to filter
  • Removable back panel for access to direct drive motor/blower compartment
  • 25 FT 12 gauge power cord (115V units only)
  • On/off switch (115V units only)
  • Wired to an external junction box. (Motor starter not included) (230/1 & 3-Phase units only)
  • 24" D x 32" W

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
DTH-800-2 "H x "W x "D 0 lbs
DTH-800-1 43"H x 41"W x 43"D 355 lbs

Key Buying Criteria:

  • Integral Collection Area and Work Surface: Draws contaminants away from workers’ breathing zone without hindering movement; easily moved to any location in facility.
  • Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Compressed Filter Mounting: Eliminates contaminant bypass of filters.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Dust Drawer: Easily remove external dust drawer with positive lever lock.
  • Low Profile Cabinet: Easy access speeds filter changeout and maintenance.

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding
  • Composite Dust
  • Deburring Dust
  • Grinding Particles
  • VOC gases
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
DTH-800-1 800 cfm downdraft table, 24" deep x 32" wide work surface at 33" height, 150 fpm downdraft velocity, with:
  • 12" (300mm) tall removable side/back shields & painted steel grate panels
  • (1) CLEAN-2® cartridge filter (150 sq.ft. of media)
  • Manual VIBRA-PULSE ® filter cleaning systems
  • 1HP TEFC motor, 115/230/1/60 Hz (12/6 amps)
  • Removable 5 gallon external dust drawer - 71 dBA
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
DTH-800-2 800 cfm downdraft table, 24" deep x 32" wide work surface at 33" height, 150 fpm downdraft velocity, with:
  • 12" (300mm) tall removable side/back shields & painted steel grate panels
  • (1) CLEAN-2® cartridge filter (150 sq.ft. of media)
  • Manual VIBRA-PULSE ® filter cleaning systems
  • 1HP TEFC motor, 230/460/3/60 Hz (12/6 amps)
  • Removable 5 gallon external dust drawer - 71 dBA
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
DTH-800-3 800 cfm downdraft table, 24" deep x 32" wide work surface at 33" height, 150 fpm downdraft velocity, with:
  • 12" (300mm) tall removable side/back shields & painted steel grate panels
  • (1) CLEAN-2® cartridge filter (150 sq.ft. of media)
  • Manual VIBRA-PULSE ® filter cleaning systems
  • 1HP TEFC motor, 575/3/60 Hz (12/6 amps)
  • Removable 5 gallon external dust drawer - 71 dBA
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Frequently bought together these options:


Part # Qty Description
DTH-800-EXAD External adsorber module. 18 lbs. capacity; 550/650 cfm.
  • Order charcoal separately - Adds 4" (100mm) to overall depth and 10 lbs. to ship weight
DTH-800-EXDOP External DOP, 95%, 550/650 cfm.
  • Adds 4" (100mm) to overall depth and 10 lbs. to ship weight
DTH-800-EXHE External HEPA, 99.97%, 550/650 cfm.
  • Adds 4" (100mm) to overall depth and 10 lbs. to ship weight
DTH-800-EXT HE/AD Kit using EXTERNAL HEPA and EXTERNAL AD options.
DTH-800-UCP ULTRACLEAN-PLUS ® cartridge Filter Option for Standard DTH-800 Unit.

Part # Qty Description
DT-EN-1 Aluminum/Acrylic enclosure complete with top back and side acrylic panels for improved visibility & capture of fumes and dust (3'H X 32"W X 24"D)

Part # Qty Description
LEV-TBL-DTL-2 2' Dust-tight Light - 120V/1/60.

Part # Qty Description
DTH-800-S-EXT External Silencer Option for Standard DTH-800 Unit.

Part # Qty Description
DTH-800-PG-5 0-5" Minihelic dial pressure gauge, approximately 5" (125mm)Ø size.
  • Flush mounted
  • NOT RECCOMENDED WITH EXHE, EXAD, OR EXDOP OPTIONS
DTH-800-PG-6 0-6" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part # Qty Description
DTH-800-1.5HP-1 1.5 Hp TEFC motor, 115/208-230/1/60 Hz, high pressure, spark resistant, backward incline blower. 900 cfm. 150 fpm downdraft velocity.(15/7.9-7.5 amps). 74 dBA.
DTH-800-1.5HP-3 1.5 Hp TEFC motor, 208-230/460/575/3/60 Hz, high pressure, spark resistant, backward incline blower. 900 cfm. 170 fpm downdraft velocity. (4.9-4.6/2.3 amps).

Part # Qty Description
2FR5-1001 Cartridge, AD, refillable with 1" (25mm) pre-filter pad & 1" (25mm) after-filter pad.
  • Holds 15 lbs. of charcoal
DCH-1-EXP VENT Explosion vent door for single and double cartridge collectors (PCH-1, ALH-1, DCH-1, DTH-1,DS-1 & Mini-Pac).
DTH-800-AD Internal AD option: AD cartridge (15 lbs. capacity) with 1" (25mm) polyester pre-filter and after-filter in place of CLEAN-2 ® cartridge & VIBRA-PULSE ® cleaning system.
  • Order charcoal separately
DTH-800-BF3-LIGHT Enclosure, 36" high, with sides, back, & top, plus 40 watt, Dust-Tite, 115 volt work light. Replaces standard 12" (300mm) tall side & back shields.

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
DTH-800-FD FIBERDUST cartidge filter in place of lean-2 cartridge.
DTH-800-MAT Soft Top mat, 12" x 12" tiles.
DTH-800-REG Regulator Gauge Option for Standard DTH-800 Unit.
DTH-800-ALUM Aluminum grate panels in place of steel grate panels - 24" x 32".
DTH-800-CASTERS Adds 8" (200mm) fixed wheels on front, 5" (125mm) swivel casters on rear, & full width handle.
  • Adds 3.25 to table height
DTH-800-COATED Vinyl Coated Bar Grate Option for Standard DTH-800 Unit.
DTH-800-FIBER Fiberglass Bar Grates Option for Standard DTH-800 Unit.
DTH-800-STEEL Steel grate in place of standard panels - 24" x 32"
DTH-800-TABLE EXT Table extension, full width with solid surface, 9" (230mm) deep.

Part # Qty Description
1PN6-1749 Aluminum Grate Panels. Price per each (6 required for DTH800) DUSTPAK ALH-1, DUSTPAK ALH-2, DUSTPAK AL-6, DUSTPAK DTH-800, (9 required for DUSTPAK DTH-1700.)
2AF2-0011 2" (50mm) Polyester Frame & Pad.
2AF9-0001 Adsorber module, flat, refillable. (18" x 24" x 2½").
  • Holds 18 lbs. of charcoal
  • Charcoal sold separately
2AZ1-0012 1" (25mm) Polyester Pad, pre-filter for the outside of the AD cartridge. (11½" x 54" x 1").
2AZ1-0013 1" (50mm) Polyester Pad, after filter for the inside of the Internal AD cartridge. (11½" x 36" x 1").
2AZ2-0013 2" (50mm) Polyester Filter, pad only, (18" x 24" x 2").
7FJ9-5003 95% @ 0.3 microns DOP Filter for PCH/DCH/DTH/ALH units.
7FJ9-9003 99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - METAL FRAME.
7FR0-2021 Cartridge for PCH-1, PCH-2, DCH-1, DCH-2, DC-4, DC-6, DC-8, DC-12, DTH-800, DTH-1700 and DT3000v2.0.
  • Due to the amount of customers not knowing about or using the Vibra-Pulse tubes, these filters will now include The Vibra-Pulse tube. The proper replacement of this Vibra Pulse tube greatly increases filter life and helps maintain flowrate thus resulting in increase worker protection from harmfull fumes
7FR0-2027 Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
7FR0-5020 OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
CHARCOAL-20 20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-40 40 lbs. of non-recycled coconut shell-based activated charcoal.
CS-350-999 CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube
7FR0-2020 Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units
  • Complete with Vibra Pulse Tube
7FR0-2020-OEM Replacement Filter.
7FR0-2029 Cartridge filter, Spunbond, Spark-resistant. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
7FJ9-9003-W 99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - WOOD FRAME.
CHARCOAL-15 15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
