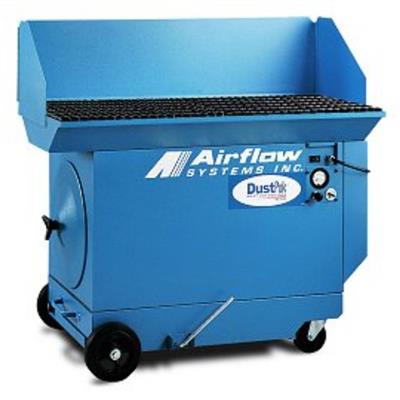

DTH1700 - 2'D x 4'W

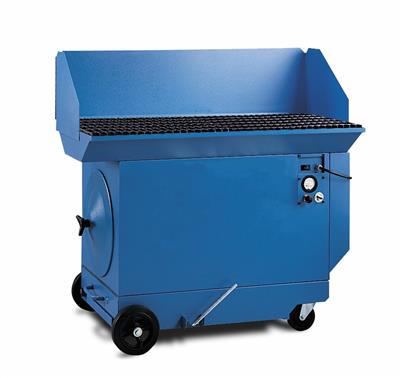

DTH-1700 - A self-contained Downdraft table that comes with an integrated fan and filtration system.

Features a work surface of 24" D x 48" W with 18" tall (removable) side and back shields. Max flow rate of 1700 CFM with 208 FPM downdraft velocity.
FUNCTION
Draws contaminants away from workers’ breathing zone without hindering movement.

Its large work area is easily utilized in a range of applications.

Its use of (2) CLEAN-2 cartridge filters and the manual VIBRA-PULSE cleaning system makes this ideal for welding and other light dust/smoke applications.
Available with:
  • Filter Options
  • Extraction Arms
  • Localized Enclosures and Shields
  • Fan and Motor Upgrades or Options
  • Silencer Option
  • Preventative Maintenance Pressure Gauges
  • VFD Options
  • Fan, Light, and Other Electrical Accessories
CONSTRUCTION
  • 12/14/16 gauge painted steel cabinet with a powder-coat finish
  • Removable end cap for easy access to filter
  • Removable panel for access to direct drive motor/blower
  • Wired to an external junction box (Motor starter not included) (230/1 & 3-Phase units only)
  • Unit: 31”D x 48.5”W x 47”H w/ shields
  • Table Top workspace: 24''D x 48’’W
KEY CRITERA
  • Integral Collection Area and Work Surface: Draws contaminants away from workers’ breathing zone without hindering movement; easily moved to any location in the facility.
  • Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Compressed filter mounting: Eliminates contaminant bypass of filters.
  • Low Profile cabinet Easy access speeds filter changeout and maintenance.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Dust Drawer: Easily remove external dust drawer with positive lever lock.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Welding
  • Composite Dust
  • Deburring Dust
  • Grinding Particles
  • Cutting Particles
  • VOC gases
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
DTH-1700-1.5
1.5 Hp TEFC, Base unit.... DTH-1700 downdraft table.

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
DTH-1700-3HP-1
DTH-1700 downdraft table with a 3 HP TEFC motor 220/3/60 Hz.
DTH-1700-3HP-2
DTH-1700 downdraft table with a 3 HP TEFC motor 575-600/3/60 Hz.

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part #
Description
DTH-1700-AD
Internal AD option: (2) AD cartridges. (30 lbs. total capacity) with 1" (25mm) polyester pre-filters & after-filters in place of CLEAN-2 ® cartridges and VIBRA-PULSE ® cleaning systems.
  • Order charcoal separately
DTH-1700-EXAD
External AD Filter Option for Standard DTH-1700 Unit
DTH-1700-EXDOP
External 95% DOP Filter Option for Standard DTH-1700 Unit.
DTH-1700-EXHE
External 99.97% HEPA Filter Option for Standard DTH-1700 Unit.
DTH1700-FD
Fiber Dust Cartridge Filter Option for Standard DTH-1700 Unit.
DTH-1700-UCP
ULTRACLEAN-PLUS Cartridge Filter Option for Standard DTH-1700 Unit.

Part #
Description
DTH-1700-PG-5
0-5" Minihelic dial pressure gauge, flush mounted.
  • NOT RECOMMENDED WITH EXHE, EXAD, OR EXDOP OPTIONS
DTH-1700-PG-6
0-6" Magnahelic pressure gauge.
  • Surface mounted
DTH-1700-PG-6-Hepa
0-6" Magnahelic dial pressure gauge.
  • Surface mounted (used with external Hepa)
DTH-1700-PG-10
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
DTH-1700-REG
Regulator 1/2" NPT Full flow, adjustable, mounted & plumbed.

Part #
Description
2FR5-1001
Cartridge, AD, refillable with 1" (25mm) pre-filter pad & 1" (25mm) after-filter pad.
  • Holds 15 lbs. of charcoal
DTH1700-ALUM
Aluminum Grate Panels in place of steel grates option for Standard DTH-1700 Unit.
DTH-1700-CASTERS
8" (200mm) Fixed & 5" (125mm) Swivel Caster Option for Standard DTH-1700 Unit.
DTH-1700-COATED
Vinyl Coated Bar Grate in place of steel grate panels - option for Standard DTH-1700 Unit.
DTH-1700-FIBER
Fiberglass Bar Grate in place of steel grate panels Option for Standard DTH-1700 Unit.
DTH1700-LESSVP
Option to remove Vibra-Pulse cleaning system from standard DTH-1700 unit (deduct).
DTH-1700-TABLE EXT
Table extensions, full width with solid surface, 9" (230mm) deep.
DTH-1700-BF3-LIGHT
36" (915mm) High sides, back & top, with Dust-Tite Light Option to replace standard 18" (460mm) shields on standard DTH-1700 Unit.

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
DTH-1700-EXT HE/AD
Kit using External Hepa and External AD options.
DTH-1700-MAT
Soft Top Mat, 12" x 12" tile.
DTH-1700-STEEL
Steel Floor grate in place of Punched steel formed panels-Heavy Duty.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
BDT-ARM-160-1500
5’ (1500mm) Flexi-I Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.). Complete with damper & turning flange
FLEXI-BRACKET
Mounting Bracket used to mount a Flexi I Extraction Arm on a DTH-1700&ALH-2.
P-002
7’ (2000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface. Complete with damper & horizontal surface mounting bracket
P-003
10’ (3000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface. Complete with damper & horizontal surface mounting bracket
P-167
5’ (1500mm) Flexi-II Extraction Arm 8" (200mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.). Complete with damper & turning flange
P-168
7’ (2000mm) Flexi-I Extraction arm 6.33" (160mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.). Complete with damper & turning flange
P-169
7’ (2000mm) Flexi-I Extraction 6.33" (160mm)Ø arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.). Complete with damper & turning flange

Part #
Description
DT-EN-2
Aluminum/Acrylic enclosure complete with:
  • Top back and side acrylic panels for improved visibility & capture of fumes & dust (3'H x 48"W x 24"D)

Part #
Description
DTH-1700-S-EXT
External Silencer Option for Standard DTH-1700 Unit.

Part #
Description
DCH-2-5HP
5 Hp TEFC motor, 208-230-460/3/60Hz, High Flow Option for Standard DCH-2 Unit.
DCH-2-5HP-575
5 Hp TEFC motor, 575/3/60Hz, High Flow Option for Standard DCH-2 Unit.
DTH1700-1.5HP-EXP
1.5HP Explosion Proof option for DTH1700. Available in 1 phase or 3 phase - please specify when ordering.*See below for price and PH selection. *this is Group C&D, starter to be wired by customer.
DTH1700-3 PHASE
1.5Hp TEFC motor, 208-230\460\3\60 Hz, Std Blower Option for Standard DTH-1700 Unit.
DTH-1700-3HP
3 HP TEFC motor, 208-230\460\575\3\60 Hz, High Flow Option for Standard DTH-1700 Unit.
DTH-1700-3HP-1 PHASE
3 Hp TEFC, 230/1/60 High Flow Blower Option for Standard DTH-1700 Unit
DTH1700-3HP-EXP
3HP Explosion Proof option for DTH1700 (3 phase only).

Part #
Description
DTH1700-PAINT
Paint Arrestor kit for DTH1700 downdraft table.
  • Cut into (4) 12" x 24" strips
  • (4) strips to cover the table

Part #
Description
2AF9-0001
Adsorber module, flat, refillable. (18" x 24" x 2½").
  • Holds 18 lbs. of charcoal
  • Charcoal sold separately
2AZ2-0013
2" (50mm) Polyester Filter, pad only, (18" x 24" x 2").
7FJ9-5003
95% @ 0.3 microns DOP Filter for PCH/DCH/DTH/ALH units.
7FR0-2021
Cartridge for PCH-1, PCH-2, DCH-1, DCH-2, DC-4, DC-6, DC-8, DC-12, DTH-800, DTH-1700 and DT3000v2.0.
  • Due to the amount of customers not knowing about or using the Vibra-Pulse tubes, these filters will now include The Vibra-Pulse tube. The proper replacement of this Vibra Pulse tube greatly increases filter life and helps maintain flowrate thus resulting in increase worker protection from harmfull fumes
7FR0-2027
Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
7FR0-5020
OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
CS-350-999
CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube
1PN6-1749
Aluminum Grate Panels. Price per each (6 required for DTH800) DUSTPAK ALH-1, DUSTPAK ALH-2, DUSTPAK AL-6, DUSTPAK DTH-800, (9 required for DUSTPAK DTH-1700.)
2AF2-0011
2" (50mm) Polyester Frame & Pad. (18" x 24" x 2").
2AZ1-0012
1" (25mm) Polyester Pad, pre-filter for the outside of the AD cartridge. (11½" x 54" x 1").
2AZ1-0013
1" (50mm) Polyester Pad, after filter for the inside of the Internal AD cartridge. (11½" x 36" x 1").
7FJ9-9003
99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - METAL FRAME.
7FJ9-9003-W
99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - WOOD FRAME.
7FR0-2020
Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units, complete with Vibra Pulse Tube
7FR0-2020 - HO
"HO" treated poly filter for PCH/DTH/DCH units (75 sq. ft. of media).
7FR0-2020 - PTFE
Cartridge filter PTFE Polyester media for PCH/DCH/DTH units.
7FR0-2020-BB
24" (610mm) FR Nano-Fiber Blend Cartridge for DCH-2, PCH-2 DT-1700 & Wall Flex Duo's. Complete with (2) Vibra-Pulse tubes
7FR0-2020-OEM
Replacement Filter.
7FR0-2025
Washable Spunbond filter cartridge for PCH/DCH/DTH, DT-3000V2, Mobi-Pulse, Mobi Flex TC-4, HC-4, DC-4/6/8/12/18 and Wall Flex filter units.
  • Complete with Vibra Pulse Tubes
7FR0-2027-BB
Cartrige filter double size for DC series dust collectors... PTFE Media
  • Complete with (2) Vibra-Pulse tubes.
CHARCOAL-15
15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-20
20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
