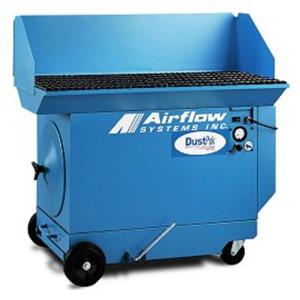

DTH1700 - 2'D x 4'W

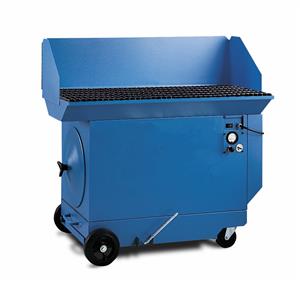

DTH-1700 - A self-contained Downdraft table that comes with an integrated fan and filtration system.

Features a work surface of 24" D x 48" W with 18" tall (removable) side and back shields. Max flow rate of 1700 CFM with 208 FPM downdraft velocity.

Function:

Draws contaminants away from workers’ breathing zone without hindering movement.

Its large work area is easily utilized in a range of applications.

Its use of (2) CLEAN-2 cartridge filters and the manual VIBRA-PULSE cleaning system makes this ideal for welding and other light dust/smoke applications.
Available with:
  • Filter Options
  • Extraction Arms
  • Localized Enclosures and Shields
  • Fan and Motor Upgrades or Options
  • Silencer Option
  • Preventative Maintenance Pressure Gauges
  • VFD Options
  • Fan, Light, and Other Electrical Accessories

Construction:

  • 12/14/16 gauge painted steel cabinet with a powder-coat finish
  • Removable end cap for easy access to filter
  • Removable panel for access to direct drive motor/blower
  • Wired to an external junction box (Motor starter not included) (230/1 & 3-Phase units only)
  • Unit: 31”D x 48.5”W x 47”H w/ shields
  • Table Top workspace: 24''D x 48’’W

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
DTH-1700-3HP-2 43"H x 42"W x 57"D 483 lbs
DTH-1700-3HP-1 47"H x 48.5"W x 31"D 552 lbs
DTH-1700-1.5 66"H x 46"W x 36"D 806 lbs

Key Buying Criteria:

  • Integral Collection Area and Work Surface: Draws contaminants away from workers’ breathing zone without hindering movement; easily moved to any location in the facility.
  • Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Compressed filter mounting: Eliminates contaminant bypass of filters.
  • Low Profile cabinet Easy access speeds filter changeout and maintenance.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Dust Drawer: Easily remove external dust drawer with positive lever lock.

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding
  • Composite Dust
  • Deburring Dust
  • Grinding Particles
  • VOC gases
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
DTH-1700-1.5 1.5 Hp TEFC, Base unit.... DTH-1700 downdraft table.

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
DTH-1700-3HP-1 DTH-1700 downdraft table with a 3 HP TEFC motor 220/3/60 Hz.
DTH-1700-3HP-2 DTH-1700 downdraft table with a 3 HP TEFC motor 575-600/3/60 Hz.

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Frequently bought together these options:

Part # Qty Description
DTH-1700-AD Internal AD option: (2) AD cartridges. (30 lbs. total capacity) with 1" (25mm) polyester pre-filters & after-filters in place of CLEAN-2 ® cartridges and VIBRA-PULSE ® cleaning systems.
  • Order charcoal separately
DTH-1700-EXAD External AD Filter Option for Standard DTH-1700 Unit
DTH-1700-EXDOP External 95% DOP Filter Option for Standard DTH-1700 Unit.
DTH-1700-EXHE External 99.97% HEPA Filter Option for Standard DTH-1700 Unit.
DTH1700-FD Fiber Dust Cartridge Filter Option for Standard DTH-1700 Unit.
DTH-1700-UCP ULTRACLEAN-PLUS Cartridge Filter Option for Standard DTH-1700 Unit.
Part # Qty Description
BDT-ARM-160-1500 5’ (1500mm) Flexi-I Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange
FLEXI-BRACKET Mounting Bracket used to mount a Flexi I Extraction Arm on a DTH-1700&ALH-2.
P-002 7’ (2000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface.
  • Complete with damper & horizontal surface mounting bracket
P-003 10’ (3000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface.
  • Complete with damper & horizontal surface mounting bracket
P-167 5’ (1500mm) Flexi-II Extraction Arm 8" (200mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange
P-168 7’ (2000mm) Flexi-I Extraction arm 6.33" (160mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange
P-169 7’ (2000mm) Flexi-I Extraction 6.33" (160mm)Ø arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange
Part # Qty Description
DT-EN-2 Aluminum/Acrylic enclosure complete with:
  • Top back and side acrylic panels for improved visibility & capture of fumes & dust (3'H x 48"W x 24"D)
Part # Qty Description
DTH-1700-S-EXT External Silencer Option for Standard DTH-1700 Unit.
Part # Qty Description
DTH-1700-PG-5 0-5" Minihelic dial pressure gauge, flush mounted.
  • NOT RECOMMENDED WITH EXHE, EXAD, OR EXDOP OPTIONS
DTH-1700-PG-6 0-6" Magnahelic pressure gauge.
  • Surface mounted
DTH-1700-PG-6-Hepa 0-6" Magnahelic dial pressure gauge.
  • Surface mounted (used with external Hepa)
DTH-1700-PG-10 0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
DTH-1700-REG Regulator 1/2" NPT Full flow, adjustable, mounted & plumbed.
Part # Qty Description
DCH-2-5HP 5 Hp TEFC motor, 208-230-460-575/3/60Hz, High Flow Option for Standard DCH-2 Unit.
DTH1700-1.5HP-EXP 1.5HP Explosion Proof option for DTH1700. Available in 1 phase or 3 phase - please specify when ordering.*See below for price and PH selection. *this is Group C&D, starter to be wired by customer.
DTH1700-3 PHASE 1.5Hp TEFC motor, 208-230\460\3\60 Hz, Std Blower Option for Standard DTH-1700 Unit.
DTH-1700-3HP 3 HP TEFC motor, 208-230\460\575\3\60 Hz, High Flow Option for Standard DTH-1700 Unit.
DTH-1700-3HP-1 PHASE 3 Hp TEFC, 230/1/60 High Flow Blower Option for Standard DTH-1700 Unit
DTH1700-3HP-EXP 3HP Explosion Proof option for DTH1700 (3 phase only).
Part # Qty Description
2FR5-1001 Cartridge, AD, refillable with 1" (25mm) pre-filter pad & 1" (25mm) after-filter pad.
  • Holds 15 lbs. of charcoal
DTH1700-ALUM Aluminum Grate Panels in place of steel grates option for Standard DTH-1700 Unit.
DTH-1700-CASTERS 8" (200mm) Fixed & 5" (125mm) Swivel Caster Option for Standard DTH-1700 Unit.
DTH-1700-COATED Vinyl Coated Bar Grate in place of steel grate panels - option for Standard DTH-1700 Unit.
DTH-1700-FIBER Fiberglass Bar Grate in place of steel grate panels Option for Standard DTH-1700 Unit.
DTH1700-LESSVP Option to remove Vibra-Pulse cleaning system from standard DTH-1700 unit (deduct).
DTH-1700-TABLE EXT Table extensions, full width with solid surface, 9" (230mm) deep.
DTH-1700-BF3-LIGHT 36" (915mm) High sides, back & top, with Dust-Tite Light Option to replace standard 18" (460mm) shields on standard DTH-1700 Unit.

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
DTH-1700-EXT HE/AD Kit using External Hepa and External AD options.
DTH-1700-MAT Soft Top Mat, 12" x 12" tile.
DTH-1700-STEEL Steel Floor grate in place of Punched steel formed panels-Heavy Duty.
Part # Qty Description
DTH1700-PAINT Paint Arrestor kit for DTH1700 downdraft table.
  • Cut into (4) 12" x 24" strips
  • (4) strips to cover the table
Part # Qty Description
2AF9-0001 Adsorber module, flat, refillable. (18" x 24" x 2½").
  • Holds 18 lbs. of charcoal
  • Charcoal sold separately
2AZ2-0013 2" (50mm) Polyester Filter, pad only, (18" x 24" x 2").
7FJ9-5003 95% @ 0.3 microns DOP Filter for PCH/DCH/DTH/ALH units.
7FR0-2021 Cartridge for PCH-1, PCH-2, DCH-1, DCH-2, DC-4, DC-6, DC-8, DC-12, DTH-800, DTH-1700 and DT3000v2.0.
  • Due to the amount of customers not knowing about or using the Vibra-Pulse tubes, these filters will now include The Vibra-Pulse tube. The proper replacement of this Vibra Pulse tube greatly increases filter life and helps maintain flowrate thus resulting in increase worker protection from harmfull fumes
7FR0-2027 Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
7FR0-5020 OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
CS-350-999 CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube
1PN6-1749 Aluminum Grate Panels. Price per each (6 required for DTH800) DUSTPAK ALH-1, DUSTPAK ALH-2, DUSTPAK AL-6, DUSTPAK DTH-800, (9 required for DUSTPAK DTH-1700.)
2AF2-0011 2" (50mm) Polyester Frame & Pad.
2AZ1-0012 1" (25mm) Polyester Pad, pre-filter for the outside of the AD cartridge. (11½" x 54" x 1").
2AZ1-0013 1" (50mm) Polyester Pad, after filter for the inside of the Internal AD cartridge. (11½" x 36" x 1").
7FJ9-9003 99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - METAL FRAME.
7FJ9-9003-W 99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - WOOD FRAME.
7FR0-2020 Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units
  • Complete with Vibra Pulse Tube
7FR0-2020 - HO "HO" treated poly filter for PCH/DTH/DCH units (75 sq. ft. of media).
7FR0-2020 - PTFE Cartridge filter PTFE Polyester media for PCH/DCH/DTH units.
7FR0-2020-BB 24" (610mm) FR Nano-Fiber Blend Cartridge for DCH-2, PCH-2 DT-1700 & Wall Flex Duo's
  • Complete with (2) Vibra-Pulse tubes
7FR0-2020-OEM Replacement Filter.
7FR0-2025 Washable Spunbond filter cartridge for PCH/DCH/DTH, DT-3000V2, Mobi-Pulse, Mobi Flex TC-4, HC-4, DC-4/6/8/12/18 and Wall Flex filter units.
  • Complete with Vibra Pulse Tubes
7FR0-2027-BB Cartrige filter double size for DC series dust collectors... PTFE Media
  • Complete with (2) Vibra-Pulse tubes.
CHARCOAL-15 15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-20 20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
