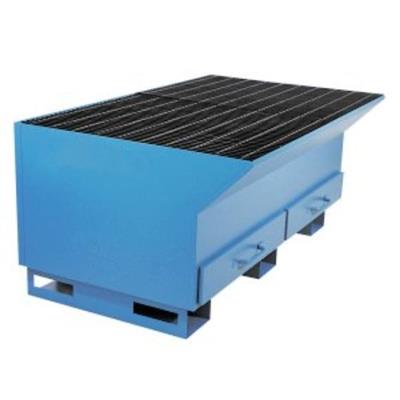

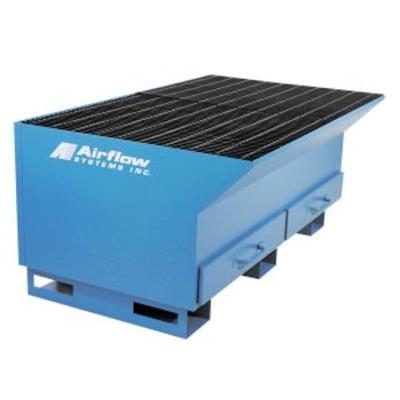

DT-35 - 3'D x 5'W
DT-35 - A Non-Powered Down Draft table complete with an integrated collection area and 3' X 5' work surface.
FUNCTION
CONSTRUCTION
KEY CRITERA
SUITABLE FOR
Draws contaminants away from workers’ breathing zone without hindering movement. This unit is ideal for collecting smoke, mist, dust, and fumes where integrated fans and filters are not appropriate nor convenient.
Available with:
Available with:
- Fan, Light, and Other Electrical Accessories
- VFD Options
- Preventative Maintenance Pressure Gauges
CONSTRUCTION
- 14 gauge welded steel finished with chemical and oil resistant paint.
- Durable construction, able to withstand industrial use.
- Built-in forklift slots are provided for convenient movement.
- 10" (250mm) duct connection for connection to remote collection or ventilation operation.
- Size: 60''W x 36''D
KEY CRITERA
- Integral Collection Area and Work Surface: Draws contaminants away from workers’ breathing zone without hindering movement.
- 14" (350mm) Duct Connection: For connection to remote collection operation.
- 14 gauge welded steel construction finished with chemical and oil resistant paint, durable, able to withstand industrial use.
- Built-in Forklift Slots: For convenient movement.
- (2) External removable dust trays
SUITABLE FOR
Top 5 contaminants/processes/applications:
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
- Light Dusts
- VOC Fumes
- Welding Fumes
- Odors
- Grinding Particles
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
DT-35
DT-35 downdraft table, 41" deep x 66" wide work surface at 30" height, with painted steel bar grate, 14" dia. Outlet connection, (2) external dust drawers and 14 ga. Cabinet with powder-coat finish. For remote operation with separate extraction source.
Non-filtered unit. Designed for centralized collection systems.
Part #
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge.
3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
Part #
Description
DT-35-BF3 W/LIGHT
Enclosure 36" (915mm) tall, with sides, back, & top combined with LIGHT option.
FREQUENTLY BOUGHT TOGETHER
Part #
Description
DT35-ALUM
Aluminum Grate Option for Standard DT-35 Unit
DT35-BF1
Back fence for one operator using entire table on DT-35 unit.
- (4) interchangeable rear & side panels 18" (460mm) high
- Quick setup & take down
DT35-BF2
24" (610mm) High Single Center Divider Option for Standard DT-35 Unit.
DT35-BF3
Enclosed 36" (915mm) Tall Fence Kit Option for Standard DT-35 Unit.
DT35-COATED
Vinyl Coated Grate Option for Standard DT-35 Unit.
DT35-FIBER
Fiberglass Grate Option for Standard DT-35 Unit.
