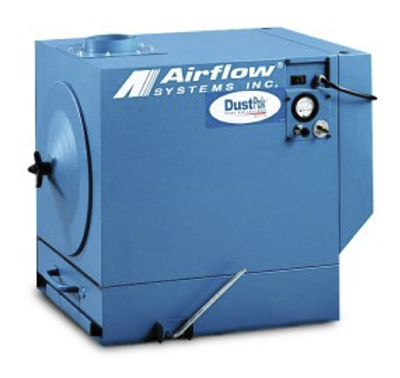

DCH1 - 800 CFM

DCH1 - A Single/Dual Work-Station Filter Unit that includes a cartridge collector with (1) Clean 2® cartridge filter (150ft² of media each) and a manual VIBRA-PULSE® filter cleaning system. With a max airflow rate of 600 CFM to 800 CFM.
FUNCTION
Portable work-station filtration unit that collects particles/gases at the source to protect the user.

DCH1 Features:
  • Direct-Drive Blowers
  • Non-electrostatic operation
  • Vibra-Pulse® Filter Cleaning System
  • Includes either a 5-gallon external dust drawer or a 10-gallon pail and hopper.

Available with:
  • Filter Options
  • Fan and Motor Upgrades or Options
  • Silencer Option
  • Preventative Maintenance Pressure Gauges
  • VFD Option
  • Fan, Light, and Other Electrical Accessories
CONSTRUCTION
  • 12/14/16 gauge welded steel cabinet with a powder-coat finish
  • Includes removable end cap for easy access to filters
  • Removable back panel for access to direct drive motor/blower compartment
  • ON/OFF switch (115V units only)
  • For 3 phase option (230/460/575) the unit comes with the motor wired to an external junction box (Motor starter not included)
KEY CRITERA
  • Self Contained Unit means the system is immediately functional, and doesn't require much setup time
  • Direct Drive: Higher static pressure, longer filter life, and greater reliability, and low maintenance without the use of belts and pulleys
  • Vibra-Pulse filter cleaning 75% more effective than reverse pulse systems
  • Low profile cabinet: Easy access speeds up filter changeout and maintenance
  • Ultra-Seal filter mounting eliminates contaminant bypass of filters
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Gases
  • VOCs
  • Welding Fumes
  • Silica Dust
  • Metal Particulate
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description

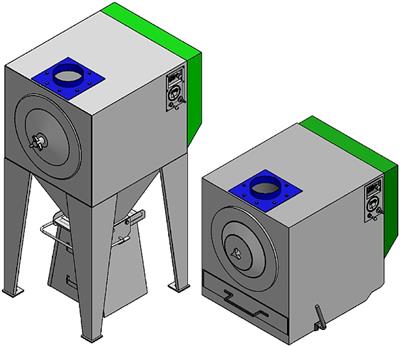

DCH-1
Cartridge Collector includes:
  • (1) Clean 2® cartridge filter with 150 sq. ft. of media
  • (1) manual Vibra-Pulse® cleaning system
  • 1HP 115/230/1/60 TEFC motor at 12/6 amps
  • 6” (150mm) collar on top
  • Removable external dust tray
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
DCH-1-H10
Cartridge collector includes:
  • (1) Clean 2® cartridge filter with 150 sq. ft. of media
  • (1) manual VIBRA-PULSE filter cleaning system
  • 1 HP TEFC motor, 115/230/1/60Hz (12/6 amps)
  • 6" (150mm) inlet collar on top
  • Hopper with stand
  • 10 gallon dust container
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part #
Description
DCH-1-AD
Internal AD Option for Standard DCH-1 Unit.
  • Order Charcoal separately
DCH-1-EXAD
External Adsorber Module Option for Standard DCH-1 Unit.
  • Order Charcoal separately
DCH-1-EXDOP
External 95% DOP Filter Option for Standard DCH-1 Unit.
DCH-1-EXHE
External 99.97% HEPA Filter Option for Standard DCH-1 Unit.
DCH-1-FD
Fiber dust Filters Option for Standard DCH-1 Unit.
DCH-1-UCP
ULTRACLEAN-PLUS Cartridge Filters Option for Standard DCH-1 Unit.

Part #
Description
DCH-1-PG-10
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part #
Description
DCH-1-CASTERS
8" (200mm) Fixed-front, 5" (125mm) Swivel-Rear Casters Option for Standard DCH-1 Unit
DCH-1-CASTERS-H10
Adds (2) 2.5" (65mm) Swivel Casters & (2) 2.5" (65mm) Fixed Casters Option for Standard DCH-1 Unit.
DCH-1-EXP VENT
Explosion vent door for single and double cartridge collectors (PCH-1, ALH-1, DCH-1, DTH-1,DS-1 & Mini-Pac).
DCH-2-HYD-045
Hydro-filter designed to help eliminate sparks.
  • Complete with 45 gallon drum, easy to remove lid, water level gauge, & all required ductwork
OM-019/160
Standing Flange for mounting Flexi-I Arms on DCH/PCH units: 6" (150mm)Ø.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
DCH-1-S-EXT
External Silencer Option for Standard DCH-1 Unit.

Part #
Description
DCH-1-3 PHASE
1.5 Hp, TEFC motor 575/3/60 Option for Standard DCH-1 Unit.
DCH-1-HP-1.5-1
1.5 Hp TEFC motor, 115/208-.230/1/60Hz, (15/7.9-7.5 amps) high pressure, spark resistant, backward incline blower. 900 cfm. 74 dBA...
DCH-1-HP-3
1.5 Hp TEFC motor,208-230/460/575/3/60 Hz, High Pressure Option for Standard DCH-1 Unit.

Part #
Description
7FJ9-9003
99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - METAL FRAME.
7FJ9-9003-W
99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - WOOD FRAME.
7FP1-4505
High Efficiency DOP 95 HEPA Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod.
7FR0-2020-BB
24" (610mm) FR Nano-Fiber Blend Cartridge for DCH-2, PCH-2 DT-1700 & Wall Flex Duo's. Complete with (2) Vibra-Pulse tubes
7FR0-2027
Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
7FR0-5020
OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
CHARCOAL-20
20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-25
25 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-40
40 lbs. of non-recycled coconut shell-based activated charcoal.
CS-350-999
CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube
7FR0-2020
Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units, complete with Vibra Pulse Tube
7FR0-2020 - HO
"HO" treated poly filter for PCH/DTH/DCH units (75 sq. ft. of media).
7FR0-2020 - PTFE
Cartridge filter PTFE Polyester media for PCH/DCH/DTH units.
7FR0-2020-OEM
Replacement Filter.
7FR0-2025
Washable Spunbond filter cartridge for PCH/DCH/DTH, DT-3000V2, Mobi-Pulse, Mobi Flex TC-4, HC-4, DC-4/6/8/12/18 and Wall Flex filter units.
  • Complete with Vibra Pulse Tubes
7FR0-2027-BB
Cartrige filter double size for DC series dust collectors... PTFE Media
  • Complete with (2) Vibra-Pulse tubes.
CHARCOAL-15
15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
PRE-COAT-5
5lb bag of pre-coat.
