DC-8-HP - 2000 CFM

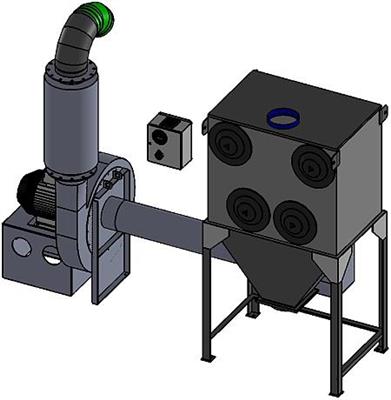

The DC-8-HP is an 8 cartridge filter dust collector and media filter dust collection system that effectively captures airborne contaminants before they reach open work areas.

This unit has a self-cleaning filter system built in. As well as a pressure gauge kit that indicates when filters require cleaning, a Block-off Filter Cleaning System that cleans while the unit is in operation and a collection hopper with a short floor stand and drum. The nominal airflow is 500 – 2000 CFM.

Available Options:

• Fan/Motor Upgrades or Options
• Additional Sound Attenuation
• Back-up Contactor
• Gas Phase Adsorption Module
• Filter and After Filter Options
• Custom Cartridge Media: For specific applications
• Pressure Gauge Kit
• Hopper with Short Floor Stand: For 5-gallon reinforced pail

• 12 ga. steel cabinet complete with 10 Ga reinforcements for high pressure
• powder-coated finish
• (8) Clean 2® filters, front load
• 75 HP High-pressure motor/blower
• Auto clean Vibra-Pulse® cleaning system with ½” regulator
• Silencer
• VFD
• 56.50”W x 37.00”D x 158.00” H

• Effectively captures pollutants at the source (Point of emission) before they enter the workers breathing zone or damage equipment.
• Non-Overloading fan for simple operation and long life. No bleed valve required.
• VFD controlled allows for ON-DEMAND flowrate that can be activated by current sensors
• Ultra low .5 to 1 Air to filter ration for ultra low maintenance
• Self Cleaning filters reduce maintenance to emptying the pail.

Top 5 contaminants/processes/applications:

• "On-Tool" dust extraction and collection
• Welding Smoke "On-Gun" extraction and filtration
• Smoke-less Guns
• Housekeeping vacuum
• Chip collection
• High-Velocity Dust

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
