04-045

HPLV-Self Cleaning High Pressure Low Volume, Fume & Dust Collector - DC-8-HP

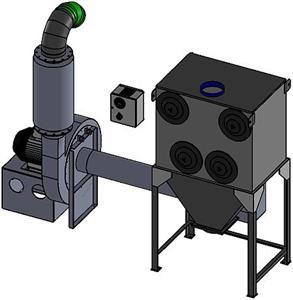

The DC-8-HP is a horizontally oriented cartridge, high-pressure fume & dust collector.

Function:

The DC-8-HP is an 8 cartridge filter dust collector and media filter dust collection system that effectively captures airborne contaminants before they reach open work areas.
This unit has a self-cleaning filter system built in. As well as a pressure gauge kit that indicates when filters require cleaning, a Block-off Filter Cleaning System that cleans while the unit is in operation and a collection hopper with a short floor stand and drum. The nominal airflow is 1650 – 5500 CFM.

Available Options:
  • Fan/Motor Upgrades or Options
  • Sound Attenuation
  • Variable Frequency Drives
  • Adsorption Module
  • Filter and After Filter Options
  • Custom Cartridge Media: For specific applications
  • Pressure Gauge Kit
  • Hopper with Short Floor Stand: For 5-gallon pail, or 20-gallon drum

Construction:

  • 12 ga. steel cabinet
  • powder-coated
  • (8) Clean 2® filters, front load
  • 75 HP High-pressure motor/blower
  • Auto clean Vibra-Pulse® cleaning system with ½” regulator
  • Silencer
  • VFD
  • 56.50”W x 37.00”D x 158.00” H
  • Key Buying Criteria:

    Dry shop pollutants are a major cause of increased equipment and facility maintenance costs. This unit effectively captures pollutants before getting to workers breathing zone or damaging equipment.
    The System’s weight must be considered before installation. Check specifications for weight and mounting pattern. Consult with authorities about local building code restrictions.
    Vibration eliminator pads springs and bases should be properly installed to prevent any blower from transmitting to the foundation, support structure or ducting.

    Suitable For:

    Top 5 contaminants/processes/applications:

    • Dry Shop Air Pollutants
    • Welding Smoke
    • Airborne Contaminants
    • Fumes
    • Dust
    Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

    IMPORTANT: Make sure to talk to an application engineer before purchasing.
    Part #
    Qty
    Description
    DC-8
    Cartridge dust collector with (8) Clean 2® filters, front load, 5 HP motor/blower with AMCA Type B spark resistant aluminum blower wheel, and auto clean Vibra-Pulse® cleaning system with ½” regulator. Motor starters not included
    DC-8-HP
    Cartridge dust collector with (8) Clean 2® filters, front load, 75 HP motor High pressure blower, vertical silencer and auto clean Vibra-Pulse® cleaning system with ½” regulator and Variable frequency drive.

    Frequently bought together these options:

    Part #
    Qty
    Description
    DC-8-DEL
    Delete standard 5 Hp motor/blower.
    HPF-3000-80
    Direct Drive High Pressure Blower 2600 CFM @ 78 Static Pressure c/w:

  • High RPM wheel
  • Steel Housing
  • slip fit inlet
  • slip fit outlet
  • Shaft Seal
  • 75 HP 3/60/575V 75 AMPS 3550 RPM TEFC MOTOR (UpBlast & Counter Clock Wise)
  • Steel Motor Base
  • Lev-co Recommends using a VFD to control this fan.
  • Part #
    Qty
    Description
    DC-8-S-RAD
    Exhaust silencer for 5 Hp radial blowers. 80 dBA.
    Part #
    Qty
    Description
    VFD-AC-460V-3HP-NEMA4X-WHT
    3.0 HP AC DRIVE ,460V single or 3 PH IN 3 PH OUT in NEMA 4 enclosure and simple "Dial/Potentiometer" speed control.
    VFD-KIT-1HP-115-230-3
    1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
    • VFD NEMA 4
    • 1 HP Motor
    • Able to support HP lower than 1HP
    • Wiring
    • Labor
    • Re-certification
    • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
    VFD-KIT-2HP-115-230-3
    2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
    • VFD NEMA 4
    • 2 HP Motor
    • Able to support lower HP between 1HP - 2HP
    • Wiring
    • Labor
    • Re-certification
    • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
    VFD-KIT-3HP-220-230-3
    3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
    • VFD NEMA 4
    • 3 HP Motor
    • Able to support lower HP between 2HP - 3HP
    • Wiring
    • Labor
    • Re-certification
    • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
