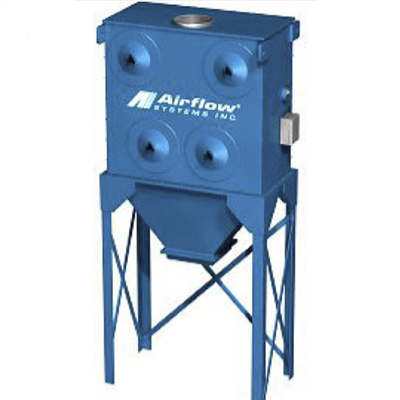

DC-8 - Dust Collector up to 4800 CFM

The DC-8 centrally ducted filter unit produces 2,000 to 4,800 CFM with 95%+ filter efficiency and is a direct machine-mounted, self-draining system designed for single-unit metalworking applications.
FUNCTION
Cartridge dust collector with (8) Clean 2® filters, front load, 5 HP motor/blower with AMCA Type B spark resistant aluminum blower wheel, and auto clean Vibra-Pulse® cleaning system with ½" regulator. Motor starters are not included. These collectors are ideal for most dust and smoke applications, and they are especially recommended for harsh applications such as Laser and Plasma cutting or "oily" weld smoke applications.

Available with:
  • Filter Options
  • Silencer Options
  • Preventative Maintenance Pressure Gauges
  • VFD Options
  • Fan and Motor Upgrades or Options
CONSTRUCTION
  • 12 Gauge steel cabinet finished with a 2-part chemical and oil resistant paint
  • Includes removable end caps for easy access to filters, dust drawer
  • 6" (150mm) legs, pressure gauge to indicate filter changes
  • Automatic cleaning
  • Includes a direct drive radial motor/blower assembly
  • Motor starters/disconnects NOT INCLUDED
  • Weight (lbs.): 1480
  • Dimensions: 56.50”W x 158.00"H x 37.00"D

Noise Level (dB):
  • 90/78 with silencer (3.0 HP)
  • 95/80 with silencer (5.0 HP, Radial)
  • 84/75 with silencer (5.0 HP, Backward Incline)
  • 84/75 with silencer (7.5 HP, Backward Incline)
KEY CRITERA
  • Complete, Pre-engineered Unit: Economical; immediately functional.
  • Direct-Drive Blowers: Higher static pressure, longer filter life, and greater reliability; no belts or pulleys to replace.
  • Compressed closing of Filter & Dust Drawer Mounting: Eliminates contaminant bypass of filters.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Auto-Clean Off-Line Filter Cleaning: Automatically cleans filters when the unit is shut off.
  • Compressed Air Regulator: Maintains a downstream pressure regardless of the variations in flow.
  • Dust Drawer: Easily remove external dust drawer with positive lever lock.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Welding
  • Plasma and Laser Cutting
  • Aerospace Machining
  • Grinding Sparks
  • Wood Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
DC-8
Cartridge dust collector with:
  • (8) Clean 2® filters, front load
  • 5 HP motor/blower with AMCA Type B spark resistant aluminum blower wheel
  • Auto clean Vibra-Pulse® cleaning system with ½” regulator
  • Motor starters not included

Part #
Description
DC-8-EXT-AD2
External AD-2000 CFM Option for Standard DC-8 Unit.
  • Includes Silencer
DC-8-EXT-AD4
External AD-4000 CFM Option for Standard DC-8 Unit.
  • Includes Silencer
DC-8-EXT-HE2
External Hepa-2000 CFM Option for Standard DC-8 Unit.
  • Includes Silencer
DC-8-EXT-HE4
External Hepa-4000 CFM Option for Standard DC-6 Unit.
  • Includes Silencer
  • Includes S-BI silencer option
DC-8-FD
FiberDust Cartridge Filter Option for Standard DC-8 Unit
DC-8-HYD-045
Hydro-filter designed to help eliminate sparks.
  • Complete with 45 gallon drum, easy to remove lid, water level gauge, & all required ductwork

Part #
Description
DC-8-PG-10
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part #
Description
DC-8-IA
Additional inlet collar, specify size and location of collar.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
DC-8-S-BI
5 & 7.5HP BI Blower Silencer Option for Standard DC-8 Unit.
DC-8-S-RAD
Exhaust silencer for 5 Hp radial blowers. 80 dBA.

Part #
Description
DC-8-BLOCK OFF
Block Off Components Option for Standard DC-8 Unit (required for on-line cleaning).
DC-8-CASTERS
Fixed & Swivel Casters Option for DC-8 Hopper-5 & Hopper-20 Units only.
DC-8-CHK DAMPER
Inlet Check Damper Option for Standard DC-8 Unit.
DC-8-EXP VENT
Explosion Vent Door Option for Standard DC-8 Unit.
DC-8-HOPPER-20
20 Gal. Hopper Option for Standard DC-8 Unit.
DC-8-HOPPER-5
5 Gal. Hopper Option for Standard DC-8 Unit.
DC-8-MC-8
Manual Vibra Clean System Option in place of AUTO-CLEAN Vibra Pulse for Standard DC-8 Unit.
DRUM-45
45 imperial gallon (55 US gallons) steel drum complete with lid.

Part #
Description
DC-8-10HP-BI
10HP BI Blower Option for Standard DC-8 Unit.
DC-8-5HP-BI
5HP BI Blower Option for Standard DC-8 Unit.
DC-8-7.5HP-BI
7.5HP BI Blower Option for Standard DC-8 Unit.
DC-8-BIN VENT
Filter Unit with 3HP Blower (less dust tray) Option for Standard DC-8 Unit.
DC-8-DEL
Delete standard 5 Hp motor/blower.

Part #
Description
7FH9-9112
99.97% HEPA Filter - WOOD FRAME.
7FR0-2021-1
Cartridge for PCH-1, PCH-2, DCH-1, DCH-2, DC-4, DC-6, DC-8, DC-12, DTH-800, DTH-1700 & DT3000v2.0.
  • Base Filter
7FR0-2027
Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
CS-350-999
CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube
7FR0-2020
Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units, complete with Vibra Pulse Tube
7FR0-2020-BB
24" (610mm) FR Nano-Fiber Blend Cartridge for DCH-2, PCH-2 DT-1700 & Wall Flex Duo's. Complete with (2) Vibra-Pulse tubes
7FR0-2020-OEM
Replacement Filter.
7FR0-2020 - PTFE
Cartridge filter PTFE Polyester media for PCH/DCH/DTH units.
7FR0-2027-BB
Cartrige filter double size for DC series dust collectors... PTFE Media
  • Complete with (2) Vibra-Pulse tubes.
CHARCOAL-15
15 lbs. Bag of non-recycled coconut shell-based activated carbon.
