DC-4 - 2400 CFM

The system is best suited for capturing applications such as laser cutting, metalwork, dust and smoke, and oily welding smoke.

The unit includes Vibra-Pulse automatic cleaning system, a 12" (300mm) inlet, a 12" (300mm) outlet, removable end caps for easy access to filters, and a dust drawer. It features up to three stages of filtration, beginning with a (4) CLEAN 2 cartridges, an external HEPA/AD module (option), and a 2" (50mm) polyester after-filter with AD (option). The unit also comes with a standard 3 HP AMCA type B motor.

Typically, this unit comes in three configurations, the dust drawer model to access filters with a self-standing unit, hopper and stand model for direct access to the unit with an end for direct connection, and bin vent model

Main Options:

• Pre-filter and main filter options and configurations
• Hoses and mounting components.
• Hood and Extraction Arm options
• Preventative maintenance pressure gauges
• Variable Frequency Drives

• Includes removable end caps for easy access to filters
• Dust drawer
• 6" (150mm) legs
• Pressure gauge to indicate filter changes
• Automatic cleaning
• Direct drive radial motor/blower assembly.

Specifications:

• Construction: 12 Gauge steel cabinet finished with 2 part chemical and oil resistant paint
• Blower Pkg (HP): 3 HP 208-230/460/3/60 @ 8.0/4.0 A
• Noise Level (dBA): 90 dBA @ 5'
• Electrical: 110v, 230/460v,
• Nominal Air Flow (CFM): 1000 - 2400 CFM

Dimensions:

Dust Drawer Model

• Width: 32.00"
• Height: 85.00"
• Depth: 42.00"

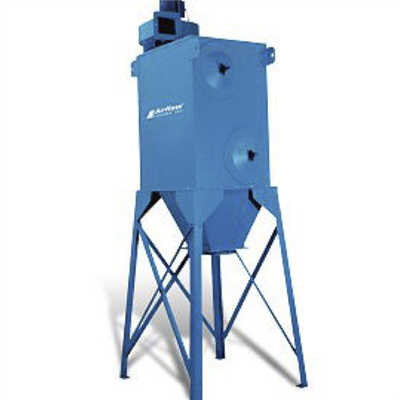

Hopper/Stand Model

• Width: 44.00”
• Height: 133.00”
• Depth: 49.00”

• Complete, Self-Contained Unit: Economical; immediately functional
• Direct-Drive Blowers: Higher static pressure, longer filter life and greater reliability; no belts or pulleys to replace.
• Non-Electrostatic Operation: High reliability, low maintenance.
• Compressed Filter Mounting: Eliminates contaminant bypass of filters.
• Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
• Auto-Clean Off-Line Filter Cleaning: Automatically cleans filters when unit is shut off.
• Compressed Air Regulator
• Dust Drawer: Easily remove external dust drawer with positive lever lock.

Top 5 contaminants/processes/applications:

• Welding
• Plasma & Laser Cutting
• Aerospace Machining
• Grinding Sparks
• Wood Dust

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
