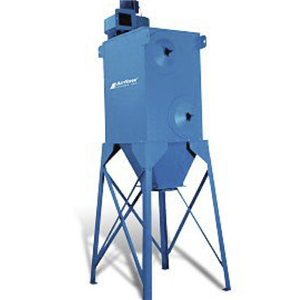

DC-4 - 2400 CFM

The DC-4 centrally ducted filter unit produces 1,000 to 2,400 CFM with 95%+ filter efficiency and is a direct machine-mounted, self-draining system designed for single-unit metalworking applications.

Function:

The system is best suited for capturing applications such as laser cutting, metalwork, dust and smoke, and oily welding smoke.

The unit includes Vibra-Pulse automatic cleaning system, a 12" (300mm) inlet, a 12" (300mm) outlet, removable end caps for easy access to filters, and a dust drawer. It features up to three stages of filtration, beginning with a (4) CLEAN 2 cartridges, an external HEPA/AD module (option), and a 2" (50mm) polyester after-filter with AD (option). The unit also comes with a standard 3 HP AMCA type B motor.

Typically, this unit comes in three configurations, the dust drawer model to access filters with a self-standing unit, hopper and stand model for direct access to the unit with an end for direct connection, and bin vent model

Main Options:
  • Pre-filter and main filter options and configurations
  • Hoses and mounting components.
  • Hood and Extraction Arm options
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives

Construction:

  • Includes removable end caps for easy access to filters
  • Dust drawer
  • 6" (150mm) legs
  • Pressure gauge to indicate filter changes
  • Automatic cleaning
  • Direct drive radial motor/blower assembly.

Specifications:
  • Construction: 12 Gauge steel cabinet finished with 2 part chemical and oil resistant paint
  • Blower Pkg (HP): 3 HP 208-230/460/3/60 @ 8.0/4.0 A
  • Noise Level (dBA): 90 dBA @ 5'
  • Electrical: 110v, 230/460v,
  • Nominal Air Flow (CFM): 1000 - 2400 CFM

Dimensions:

Dust Drawer Model
  • Width: 32.00"
  • Height: 85.00"
  • Depth: 42.00"
Hopper/Stand Model
  • Width: 44.00”
  • Height: 133.00”
  • Depth: 49.00”

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
DC-4-H55 1"H x 1"W x 1"D 1000 lbs
DC-4 90"H x 53"W x 52"D 750 lbs

Key Buying Criteria:

  • Complete, Self-Contained Unit: Economical; immediately functional
  • Direct-Drive Blowers: Higher static pressure, longer filter life and greater reliability; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Compressed Filter Mounting: Eliminates contaminant bypass of filters.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Auto-Clean Off-Line Filter Cleaning: Automatically cleans filters when unit is shut off.
  • Compressed Air Regulator
  • Dust Drawer: Easily remove external dust drawer with positive lever lock.

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding
  • Plasma & Laser Cutting
  • Aerospace Machining
  • Grinding Sparks
  • Wood Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
DC-4 Cartridge dust collector with:
  • (4) Clean-2® cartridge filters (150ft² of media each)
  • AUTO-CLEAN VIBRA-PULSE® filter cleaning system
  • Top mounted 3 HP TEFC motor
    • 208-230/460/575/3/60Hz (8/4) amps, with AMCA Type B, non-sparking, aluminum, radial blower wheel
  • 1/2 NPT regulator and motor wired to electrical control box
  • 12" (300mm)Ø inlet collar on top, with a removable 4.25ft³ external dust tray
Motor starters NOT included.
DC-4-H55 Cartridge dust collector with:
  • (4) Clean-2® cartridge filters (150ft² of media each)
  • AUTO-CLEAN VIBRA-PULSE® filter cleaning system
  • Top mounted 3 HP TEFC motor 208-230/460/575/3/60Hz (8/4 amps) with AMCA Type B, non-sparking, aluminum radial blower wheel\
  • 1/2 NPT regulator, & motor wired to electrical control box
  • 12" (300)Ø inlet collar on top, hopper with legs, connecting hose, and lid for 55 gallon drum
Motor starters and drums NOT included.

Frequently bought together these options:


Part # Qty Description
DC-4-EXT-AD2 External AD-2000 CFM Option for Standard DC-4 Unit.
  • Includes Silencer
DC-4-EXT-AD4 External AD-4000 CFM Option for Standard DC-4 Unit.
  • Includes Silencer
DC-4-EXT-HE2 External Hepa-2000 CFM Option for Standard DC-4 Unit.
  • Includes S-BI Silencer
DC-4-EXT-HE4 External Hepa-4000 CFM (Includes Silencer) Option for Standard DC-4 Unit
DC-4-FD FiberDust Cartridge Filter Option for Standard DC-4 Unit
DC-4-HYD-045 Hydro-filter designed to help eliminate sparks. Complete with:
  • 45 gallon drum
  • Easy to remove lid
  • Water level gauge
  • All required ductwork

Part # Qty Description
DC-4-S-BI 5 & 7.5HP BI Blower Silencer Option for Standard DC-4 Unit.
DC-4-S-RAD 3 & 5HP Radial Silencer Option for Standard DC-4 Unit.

Part # Qty Description
DC-4-PG-10 0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part # Qty Description
DC-4-CHK DAMPER Inlet Check Damper Option for Standard DC-4 Unit.
DC-4-EXP VENT Explosion Vent Door Option for Standard DC-4 Unit.
DC-4-HOPPER-20 20 Gal. Hopper Option for Standard DC-4 Unit.
DC-4-HOPPER-5 5 Gal. Hopper Option for Standard DC-4 Unit.
DC-4-MC-4 Manual Vibra Clean System Option for Standard DC-4 Unit.
DRUM-45 45 imperial gallon (55 US gallons) steel drum complete with lid.

Part # Qty Description
DC-4-5HP-BI 5HP BI Blower Option for Standard DC-4 Unit.
DC-4-5HP-R 5HP Radial Motor Option for Standard DC-4 Unit.
DC-4-7.5HP-BI 7.5 HP backward incline blower in place of 5 HP radial. (Add 53lbs. to ship weight)
DC-4-BIN VENT Filter Unit with 3HP Blower (less dust tray) Option for Standard DC-4 Unit.
DC-4-DEL Delete 3HP Blower from Standard Units-(add nothing) Option for Standard DC-4 Unit

Part # Qty Description
DC-4-Casters Caster option for dust drawer only.
DC-4-IA Additional inlet collar - specify size & location of collar.

Part # Qty Description
CHARCOAL-20 20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-40 40 lbs. of non-recycled coconut shell-based activated charcoal.
7FH9-9112 99.97% HEPA Filter - WOOD FRAME.
7FJ9-9113 HEPA, high capacity filter, metal frame. 24" x 24" x 12" for F-120, F122, F240, F360, F480, DUST CONTROL BOOTH, DC-8, MP120, & DT3000v2.0.
7FJ9-9113-OEM HEPA, high capacity filter, metal frame. 24" x 24" x 12" for F-120, F122, F240, F360, F480, DUST CONTROL BOOTH, DC-8, MP120, & DT3000v2.0.
7FR0-2020-BB 24" (610mm) FR Nano-Fiber Blend Cartridge for DCH-2, PCH-2 DT-1700 & Wall Flex Duo's
  • Complete with (2) Vibra-Pulse tubes
7FR0-2021-1 Cartridge for PCH-1, PCH-2, DCH-1, DCH-2, DC-4, DC-6, DC-8, DC-12, DTH-800, DTH-1700 & DT3000v2.0.
  • Base Filter
7FR0-2027 Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
7FR0-5020 OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
CHARCOAL-15 15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CS-350-999 CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube
7FR0-2020 Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units
  • Complete with Vibra Pulse Tube
7FR0-2020-OEM Replacement Filter.
7FR0-2027-BB Cartrige filter double size for DC series dust collectors... PTFE Media
  • Complete with (2) Vibra-Pulse tubes.
