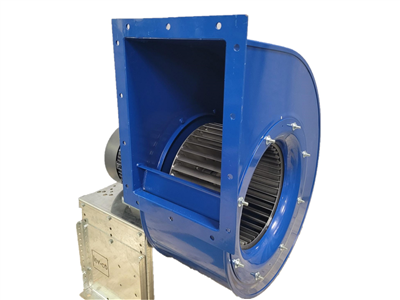

BI Direct Drive - 21,000 CFM

BI Direct Drive Fans are suitable for solutions requiring very powerful extraction. Due to the configurable nature of these fans, the flow rates can range from 1,000 - 21,000 CFM, depending on the motor and fan housing selected.
FUNCTION
Direct Drive Fans, Arr. #4 complete with punched flanged outlet and motor. Motors are TEFC E-Pact 230-460V/575-600V/3/60/-3500 RPM. Wheels are heavy gauge, single thickness, self-cleaning, and dynamically balanced to ANSI S2.19-1989 specifications for smooth operation. Inlet and supporting bracket accessories are also available.

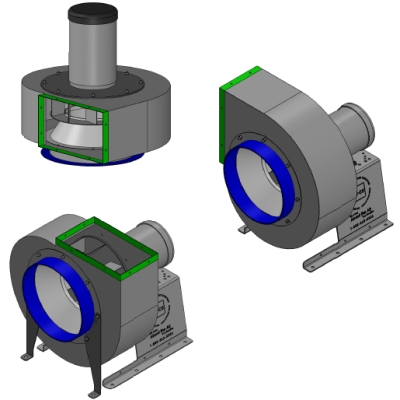

All Lev-Co BI fans come in a standard configuration of Clockwise rotation/Up-blast discharge. Alternate discharges can be adjusted by the installing contractor.

Due to the size of these units, mounting is typically on the floor, on legs, or a stand.

Main Options:
  • Numerous Motor Options
  • Mounting Solutions
  • Spark Resistance
  • Variable Frequency Drives
  • BI Drain
  • Quick Access Inspection Door
  • No-Loss Stack
CONSTRUCTION
  • Heavy-Duty construction with continuously welded 14/12/10 ga. housings
  • Baked-on polyester coating
  • Self Cleaning Wheels
  • SWSI (Single Width Single Inlet)
  • Direct drive
  • Arrangement for centrifugal exhaust fan
  • TEFC inverter duty premium efficiency motor
  • AMCA B rating spark resistant construction
  • Rotatable in 45° increments
KEY CRITERA
  • Large range of configurations for multiple applications with mounting brackets and
  • Direct Drive: Higher static pressure, reliability, and no use of belts or pulleys means lower operation costs
  • Weatherproof: Baked on power-coat finish for durable high resistance, non-susceptible to UV rays or environmental elements
  • Welded Construction: Removes the possibility of pressure leaks often found in bolted construction
  • 45° Rotation: Fans are able to be rotated at 45° increments to allow for angular up/down discharge
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Diesel Exhaust Fumes
  • Oil Smoke
  • Paper Dust
  • Acid Fumes
  • Crystalline Silica Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
BI-122-70-2
Industrial Exhaust Fan 1300 CFM @ 9 w.g. to 2000 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with 3 HP, 230-460V/3/60, 3600 RPM. AMCA Type B construction.
BI-122-70-3
Industrial Exhaust Fan 1300 CFM @ 9 w.g. to 2000 CFM@5 w.g.BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 3 HP, 575V/3/60, 3600 RPM. AMCA Type B construction.
BI-135-100
Industrial Exhaust Fan 1800 CFM@1.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 1.5 HP, 115/230/1/60, 1750 RPM. AMCA type B
BI-135-75-2
Industrial Exhaust Fan 2000 CFM@10 w.g. to 3000 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 5 HP, 230-460V/3/60, 3600 RPM. AMCA type B
BI-135-75-3
Industrial Exhaust Fan 2000 CFM@10 w.g. to 3000 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 5 HP, 575V/3/60, 3600 RPM. AMCA type B
BI-150-90-2
Industrial Exhaust Fan 3000 CFM@9 w.g. to 4500 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 7.5 HP, 230-460V/3/60, 3600 RPM. AMCA type B construction
BI-150-90-3
Industrial Exhaust Fan 3000 CFM@9 w.g. to 4500 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with 7.5 HP, 575V/3/60, 3600 RPM. AMCA type B construction
BI-165-75-2
Industrial Exhaust Fan 4000 CFM@10 w.g. to 5000 CFM@6 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 10 HP/3 PH, 230-460V/3/60, 3600 RPM. AMCA Type B Construction
BI-165-75-3
Industrial Exhaust Fan 4000 CFM@10 w.g. to 5000 CFM@6 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 10 HP/3 PH, 575V/3/60, 3600 RPM.AMCA Type B Construction
BI-182-70-2
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 15 HP/3 PH, 230-460V/3/60, 3600 RPM. AMCA type B construction
BI-182-70-3
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 15 HP/3 PH, 575V/3/60, 3600 RPM. AMCA type B construction
BI-182-95-2
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 15 HP/3 HP, 230-460V/3/60, 3600 RPM. AMCA type B construction
BI-182-95-3
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 15 HP/3 HP, 575V/3/60, 3600 RPM. AMCA type B construction
BI-270-65-2
10,000 CFM@7.5" w.g. to 12,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, flanged outlet; Class IV complete with 20 HP/3 PH, 230-460V/3/60, 1750 RPM.
BI-270-65-3
10,000 CFM@7.5" w.g. to 12,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, flanged outlet; Class IV complete with 20 HP/3 PH, 575V/3/60, 1750 RPM.
BI-270-85-2
Industrial Exhaust Fan 12,000 CFM@8" w.g. to 14,500 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 25 HP/3 PH, 230/460/3/60, 1750 RPM. AMCA type B construction
BI-270-85-3
Industrial Exhaust Fan 12,000 CFM@8" w.g. to 14,500 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 25 HP/ 3 PH, 575V/3/60, 1750 RPM. AMCA type B construction
BI-270-100-2
Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 30 HP/ 3 PH, 230/460/3/60, 1750 RPM. AMCA type B construction
BI-270-100-3
Industrial Exhaust Fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 30 HP/ 3 PH, 575V/3/60, 1750 RPM. AMCA type B construction
BI-300-100-2
Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 30 HP 230/460/3/60, 1750 RPM. AMCA type B construction
BI-300-100-3
Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 30 HP 575V/3/60, 1750 RPM. AMCA type B construction
FREQUENTLY BOUGHT TOGETHER

Part #
Description
93342-STACK-1
93342 bottom section: 14 GA galvanized L-shaped stack section with side flanges for bolted connection.
93342-STACK-2
93342 top section: 14 GA galvanized L-shaped stack section with side flanges for bolted connection and angled flanges for guy wires.
P-766-HD-GALV-1
Heavy duty galvanized main fan mounting bracket ONLY.
P-766-HD-GALV-BR
Rear brace for P-766-HD - Made of 11 GA GALV.
P-766-HD-GALV-LL-1
Left Lower Leg for P-766-HD - Made of 11 GA GALV.
P-766-HD-GALV-LL-2
Left Upper Leg for P-766-HD - Made of 11 GA GALV.
P-766-HD-GALV-MP
Nema/IEC Motor plate for P-766-HD - Made of 11 GA GALV.
P-766-HD-GALV-RL-1
Right Lower Leg for P-766-HD - Made of 11 GA GALV.
P-766-HD-GALV-RL-2
Right Upper Leg for P-766-HD - Made of 11 GA GALV.
P-766-HD-GUSSET-PLATE
Heavy duty gusset plate option to be welded in the middle of P-766-HD.

Part #
Description
OC-SQ-CRP-400-STACK
Galvanized square no-loss stack for CPR-400 Exhaust fans at OC transpo
P-766-HD-GALV
Heavy duty galvanized fan mounting bracket with hardware to connect fan.
P-766-HD-GALV-TELE
Heavy-duty galvanized telescopic fan mounting bracket w/ hardware to connect fan and height-adjustable.

Part #
Description
BI-122-AFS
Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-135-AFS
Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-150-AFS
Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-165-AFS
Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-182-AFS
Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-122-AR-INLET
Optional standard angle ring hole pattern adapter.
BI-135-AR-INLET
Optional standard angle ring hole pattern adapter.
BI-150-AR-INLET
Optional standard angle ring hole pattern adapter.
BI-165-AR-INLET
Optional standard angle ring hole pattern adapter.
BI-182-AR-INLET
Optional standard angle ring hole pattern adapter.

Part #
Description
BI-122-C
AMCA type C spark resistant construction option for the BI-122 series fans.
BI-135-C
AMCA type C spark resistant construction option for the BI-135 series fans.
BI-150-C
AMCA type C spark resistant construction option for the BI-150 series fans.
BI-165-C
AMCA type C spark resistant construction option for the BI-165 series fans.
BI-182-C
AMCA type C spark resistant construction option for the BI-182 series fans.

Part #
Description
SIL-BI-122-R0
Silencer option for BI-122-70 Fan.
SIL-BI-135-R0
Silencer option for BI-135-75 Fan.
SIL-BI-150-R0
Silencer option for BI-150-90 Fan.
SIL-BI-150-R0-1
Silencer option for BI-150-90 Fan.
SIL-BI-165-R0
Silencer option for BI-165-75 Fan.
SIL-BI-182-R0-1
Silencer option for BI-182-70 Fan.

Part #
Description
BI-DRAIN
Drain, optional accessory for BI Fans, 1/2" push in connection.
  • Installed on site, step drill bit included with kit
  • To be installed at the lowest point on the fan
BI-ACC-DOOR
Quick open access/inspection door for BI fans.
BI-EPOXY-122
Epoxy paint option for BI-122 fans - including all accessories.
BI-EPOXY-135
Epoxy paint option for BI-135 fans - including all accessories.
BI-EPOXY-150
Epoxy paint option for BI-150 fans - including all accessories.
BI-EPOXY-165
Epoxy paint option for BI-165 fans - including all accessories.
BI-EPOXY-182
Epoxy paint option for BI-182 fan - including all accessories.

Part #
Description
LEV-ESTACK-BI-122
No loss stack with gravity damper for the BI-122-70 fan.
LEV-ESTACK-BI-135
No loss stack with gravity damper for the BI-135-70 fan.
LEV-ESTACK-BI-150
No loss stack with gravity damper for the BI-150-90 fan.
LEV-ESTACK-BI-165
No loss stack with gravity damper for the BI-165-X fan.
LEV-ESTACK-BI-182
No loss stack with gravity damper for the BI-182-70 fan.
