Model

13-015

Image for BI.jpg

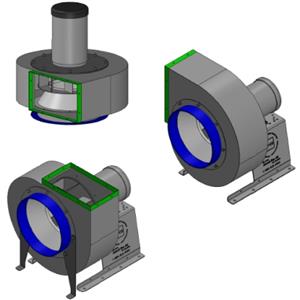

BI Direct Drive - 21,000 CFM

BI Direct Drive Fans are suitable for solutions requiring very powerful extraction. Due to the configurable nature of these fans, the flow rates can range from 1,000 - 21,000 CFM, depending on the motor and fan housing selected.

Function:

Direct Drive Fans, Arr. #4 complete with punched flanged outlet and motor. Motors are TEFC E-Pact 230-460V/575-600V/3/60/-3500 RPM. Wheels are heavy gauge, single thickness, self-cleaning, and dynamically balanced to ANSI S2.19-1989 specifications for smooth operation. Inlet and supporting bracket accessories are also available.

All Lev-Co BI fans come in a standard configuration of Clockwise rotation/Up-blast discharge. Alternate discharges can be adjusted by the installing contractor.

Due to the size of these units, mounting is typically on the floor, on legs, or a stand.

Main Options:
  • Numerous Motor Options
  • Mounting Solutions
  • Spark Resistance
  • Variable Frequency Drives
  • BI Drain
  • Quick Access Inspection Door
  • No-Loss Stack

Construction:

  • Heavy-Duty construction with continuously welded 14/12/10 ga. housings
  • Baked-on polyester coating
  • Self Cleaning Wheels
  • SWSI (Single Width Single Inlet)
  • Direct drive
  • Arrangement for centrifugal exhaust fan
  • TEFC inverter duty premium efficiency motor
  • AMCA B rating spark resistant construction
  • Rotatable in 45° increments

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
BI-300-100-3 "H x "W x "D 0 lbs
BI-300-100-2 "H x "W x "D 0 lbs
BI-270-85-3 53"H x 53"W x 60"D 700 lbs
BI-270-85-2 "H x "W x "D 0 lbs
BI-270-65-3 "H x "W x "D 0 lbs
BI-270-65-2 "H x "W x "D 0 lbs
BI-270-100-3 "H x "W x "D 0 lbs
BI-270-100-2 "H x "W x "D 0 lbs
BI-182-95-3 36"H x 36"W x 36"D 0 lbs
BI-182-95-2 "H x "W x "D 0 lbs
BI-182-70-2 "H x "W x "D 0 lbs
BI-165-75-3 1"H x 1"W x 1"D 150 lbs
BI-165-75-2 30"H x 30"W x 30"D 150 lbs
BI-150-90-2 "H x "W x "D 0 lbs
BI-135-75-3 30"H x 30"W x 31"D 300 lbs
BI-135-75-2 30"H x 30"W x 31"D 300 lbs
BI-135-100 30"H x 30"W x 31"D 300 lbs

Key Buying Criteria:

  • Large range of configurations for multiple applications with mounting brackets and
  • Direct Drive: Higher static pressure, reliability, and no use of belts or pulleys means lower operation costs
  • Weatherproof: Baked on power-coat finish for durable high resistance, non-susceptible to UV rays or environmental elements
  • Welded Construction: Removes the possibility of pressure leaks often found in bolted construction
  • 45° Rotation: Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Suitable For:

Top 5 contaminants/processes/applications:

  • Diesel Exhaust Fumes
  • Oil Smoke
  • Paper Dust
  • Acid Fumes
  • Crystalline Silica Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
BI-122-70-2 Industrial Exhaust Fan 1300 CFM @ 9 w.g. to 2000 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with 3 HP, 230-460V/3/60, 3600 RPM. AMCA Type B construction.
BI-122-70-3 Industrial Exhaust Fan 1300 CFM @ 9 w.g. to 2000 CFM@5 w.g.BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 3 HP, 575V/3/60, 3600 RPM. AMCA Type B construction.
BI-135-100 Industrial Exhaust Fan 1800 CFM@1.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 1.5 HP, 115/230/1/60, 1750 RPM. AMCA type B
BI-135-75-2 Industrial Exhaust Fan 2000 CFM@10 w.g. to 3000 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 5 HP, 230-460V/3/60, 3600 RPM. AMCA type B
BI-135-75-3 Industrial Exhaust Fan 2000 CFM@10 w.g. to 3000 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 5 HP, 575V/3/60, 3600 RPM. AMCA type B
BI-150-90-2 Industrial Exhaust Fan 3000 CFM@9 w.g. to 4500 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with, 7.5 HP, 230-460V/3/60, 3600 RPM. AMCA type B construction
BI-150-90-3 Industrial Exhaust Fan 3000 CFM@9 w.g. to 4500 CFM@5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class II complete with 7.5 HP, 575V/3/60, 3600 RPM. AMCA type B construction
BI-165-75-2 Industrial Exhaust Fan 4000 CFM@10 w.g. to 5000 CFM@6 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 10 HP/3 PH, 230-460V/3/60, 3600 RPM. AMCA Type B Construction
BI-165-75-3 Industrial Exhaust Fan 4000 CFM@10 w.g. to 5000 CFM@6 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 10 HP/3 PH, 575V/3/60, 3600 RPM.AMCA Type B Construction
BI-182-70-2 Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 15 HP/3 PH, 230-460V/3/60, 3600 RPM. AMCA type B construction
BI-182-70-3 Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 15 HP/3 PH, 575V/3/60, 3600 RPM. AMCA type B construction
BI-182-95-2 Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 15 HP/3 HP, 230-460V/3/60, 3600 RPM. AMCA type B construction
BI-182-95-3 Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 15 HP/3 HP, 575V/3/60, 3600 RPM. AMCA type B construction
BI-270-65-2 10,000 CFM@7.5" w.g. to 12,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, flanged outlet; Class IV complete with 20 HP/3 PH, 230-460V/3/60, 1750 RPM.
BI-270-65-3 10,000 CFM@7.5" w.g. to 12,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, flanged outlet; Class IV complete with 20 HP/3 PH, 575V/3/60, 1750 RPM.
BI-270-85-2 Industrial Exhaust Fan 12,000 CFM@8" w.g. to 14,500 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 25 HP/3 PH, 230/460/3/60, 1750 RPM. AMCA type B construction
BI-270-85-3 Industrial Exhaust Fan 12,000 CFM@8" w.g. to 14,500 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 25 HP/ 3 PH, 575V/3/60, 1750 RPM. AMCA type B construction
BI-270-100-2 Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 30 HP/ 3 PH, 230/460/3/60, 1750 RPM. AMCA type B construction
BI-270-100-3 Industrial Exhaust Fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 30 HP/ 3 PH, 575V/3/60, 1750 RPM. AMCA type B construction
BI-300-100-2 Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 30 HP 230/460/3/60, 1750 RPM. AMCA type B construction
BI-300-100-3 Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan complete with slip fit inlet, Slip Fit outlet; Class IV complete with 30 HP 575V/3/60, 1750 RPM. AMCA type B construction

Frequently bought together these options:


Part # Qty Description
P-766-HD-GALV-1 Heavy duty galvanized main fan mounting bracket ONLY.
P-766-HD-GALV-BR Rear brace for P-766-HD - Made of 14 GA GALV.
P-766-HD-GALV-LL-1 Left Lower Leg for P-766-HD - Made of 11 GA GALV.
P-766-HD-GALV-LL-2 Left Upper Leg for P-766-HD - Made of 11 GA GALV.
P-766-HD-GALV-MP Nema/IEC Motor plate for P-766-HD - Made of 11 GA GALV.
P-766-HD-GALV-RL-1 Right Lower Leg for P-766-HD - Made of 11 GA GALV.
P-766-HD-GALV-RL-2 Right Upper Leg for P-766-HD - Made of 11 GA GALV.
P-766-HD-GUSSET-PLATE Heavy duty gusset plate option to be welded in the middle of p-766-hd.

Part # Qty Description
P-766-HD-GALV Heavy duty galvanized fan mounting bracket with hardware to connect fan.
P-766-HD-GALV-TELE Heavy duty galvanized telescopic fan mounting bracket with hardware to connect fan.

Part # Qty Description
BI-122-AFS Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-135-AFS Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-150-AFS Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-165-AFS Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-182-AFS Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-122-AR-INLET Optional standard angle ring hole pattern adapter.
BI-135-AR-INLET Optional standard angle ring hole pattern adapter.
BI-150-AR-INLET Optional standard angle ring hole pattern adapter.
BI-165-AR-INLET Optional standard angle ring hole pattern adapter.
BI-182-AR-INLET Optional standard angle ring hole pattern adapter.

Part # Qty Description
BI-122-C AMCA type C spark resistant construction option for the BI-122 series fans.
BI-135-C AMCA type C spark resistant construction option for the BI-135 series fans.
BI-150-C AMCA type C spark resistant construction option for the BI-150 series fans.
BI-165-C AMCA type C spark resistant construction option for the BI-165 series fans.
BI-182-C AMCA type C spark resistant construction option for the BI-182 series fans.

Part # Qty Description
SIL-BI-122-R0 Silencer option for BI-122-70 Fan.
SIL-BI-135-R0 Silencer option for BI-135-75 Fan.
SIL-BI-150-R0 Silencer option for BI-150-90 Fan.
SIL-BI-150-R0-1 Silencer option for BI-150-90 Fan.
SIL-BI-165-R0 Silencer option for BI-165-75 Fan.
SIL-BI-182-R0-1 Silencer option for BI-182-70 Fan.

Part # Qty Description
BI-DRAIN Drain, optional accessory for BI Fans, 1/2" push in connection.
  • Installed on site, step drill bit included with kit
  • To be installed at the lowest point on the fan
BI-ACC-DOOR Quick open access/inspection door for BI fans.
BI-EPOXY-122 Epoxy paint option for BI-122 fans - including all accessories.
BI-EPOXY-135 Epoxy paint option for BI-135 fans - including all accessories.
BI-EPOXY-150 Epoxy paint option for BI-150 fans - including all accessories.
BI-EPOXY-165 Epoxy paint option for BI-165 fans - including all accessories.
BI-EPOXY-182 Epoxy paint option for BI-182 fan - including all accessories.

Part # Qty Description
LEV-ESTACK-BI-122 No loss stack with gravity damper for the BI-122-70 fan.
LEV-ESTACK-BI-135 No loss stack with gravity damper for the BI-135-70 fan.
LEV-ESTACK-BI-150 No loss stack with gravity damper for the BI-150-90 fan.
LEV-ESTACK-BI-165 No loss stack with gravity damper for the BI-165-X fan.
LEV-ESTACK-BI-182 No loss stack with gravity damper for the BI-182-70 fan.
