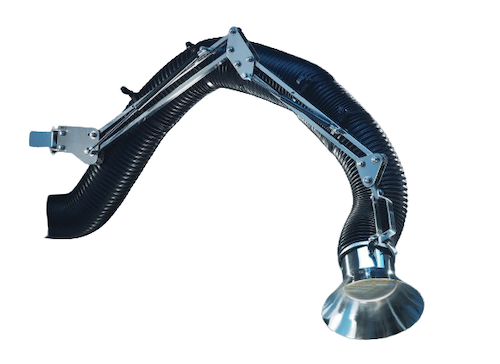

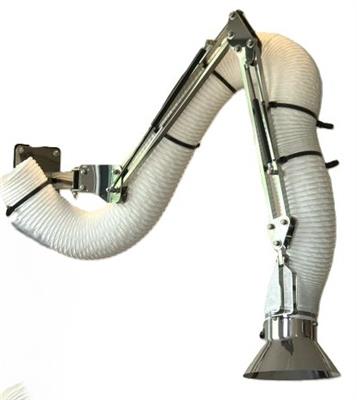

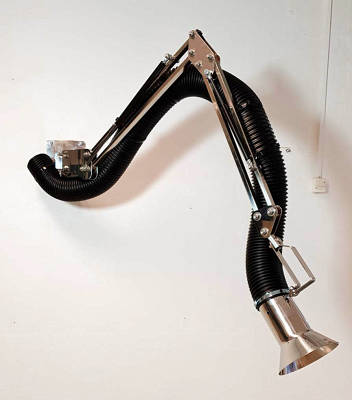

ATEX Extraction Arm
Designed for highly efficient fume and dust extraction in ATEX-regulated environments, this extraction arm ensures safe and effective removal of hazardous airborne contaminants. Built for maximum flexibility, it allows precise positioning to improve air quality and worker safety.
FUNCTION
CONSTRUCTION
KEY CRITERA
SUITABLE FOR
Precision Extraction for ATEX Environments:
The ATEX Extraction Arm is designed for use in ATEX Zones 1, 2, 21, and 22, ensuring safe removal of flammable gases, vapors, mists, and combustible dust. By effectively capturing hazardous airborne contaminants at the source, it helps maintain compliance with ATEX directives 2014/34/EU and reduces the risk of explosions in regulated workspaces.
Flexible & Adaptable Design: The articulating arm features smooth motion and secure positioning, making it suitable for dynamic workspaces where precise extraction is required.
Customizable to Specific Needs: Available in multiple sizes (1.5m–4m) and with various hood configurations, including straight, 67°, 150°.
Durability & Safety: With a stainless steel build, anti-static hoses, and integrated grounding to ensure <10^4 Ohm conductivity, this arm meets the highest safety standards for explosive environments.
Flexible & Adaptable Design: The articulating arm features smooth motion and secure positioning, making it suitable for dynamic workspaces where precise extraction is required.
Customizable to Specific Needs: Available in multiple sizes (1.5m–4m) and with various hood configurations, including straight, 67°, 150°.
Durability & Safety: With a stainless steel build, anti-static hoses, and integrated grounding to ensure <10^4 Ohm conductivity, this arm meets the highest safety standards for explosive environments.
CONSTRUCTION
- Fully made of acid-proof, polished stainless steel for corrosion resistance and durability.
- Spring-balanced parallel arms ensure stable positioning and effortless maneuverability.
- Backdraft Damper
- Free airflow hose design minimizes turbulence and pressure drops.
- Available in multiple lengths (1.5m–4m) with various hood configurations.
- Easy to dismantle and clean, ensuring compliance with strict hygiene and safety standards.
KEY CRITERA
- ATEX-Certified: Fully compliant for use in explosive atmospheres.
- Corrosion-Resistant Construction: Polished stainless steel ensures long service life.
- Smooth, Stable Maneuverability: Spring-balanced parallelogram arms provide effortless positioning.
- Highly Customizable: Multiple lengths and hood types for application-specific solutions.
- Easy Maintenance: Simple disassembly for cleaning and safety inspections.
SUITABLE FOR
Top 5 contaminants/processes/applications:
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
- Combustible Dust
- Flammable Gases
- Chemical Fumes
- Welding Smoke
- Solvent Vapors
- Pharmaceutical Powders
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
ATEX-ARM-H150-160-1500
1.5m (0.25+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H150-160-2000
1.5m (0.25+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, 67° angle hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted and sterilized in an Autoclave
ATEX-ARM-H150-160-2200
2m (0.25+2m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, 67° angle hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H150-160-2500
2m (0.5+2m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, 67° angle hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H150-160-3000
3m (0.5+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, 67° angle hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H150-160-4000
4m (0.5+0.6+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, 67° angle hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H67-160-1500
1.75m (0.25+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, 150° angle hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H67-160-2000
1.5m (0.5+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, 150° angle hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H67-160-2200
2m (0.25+2m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, 150° angle hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H67-160-2500
2m (0.5+2m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, 150° angle hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H67-160-3000
3m (0.5+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H67-160-4000
4m (0.5+0.6+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, 150° angle hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HST-160-1500
1.5m (0.25+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, straight hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HST-160-2000
1.5m (0.25+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, straight hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HST-160-2200
2m (0.25+2m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, straight hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HST-160-2500
2m (0.5+2m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, straight hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HST-160-3000
3m (0.5+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, straight hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HST-160-4000
4m (0.5+0.6+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, straight hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HSTD-160-1500
1.5m (0.25+1.5m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HSTD-160-2000
1.5m (0.5+1.5m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HSTD-160-2200
2m (0.25+2m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HSTD-160-2500
2m (0.5+2m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HSTD-160-3000
3m (0.5+3m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HSTD-160-4000
4m (0.5+0.6+3m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
- Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
- Free flow in the hose
- Incredibly easy to move & stays in position
- Can easily be demounted & sterilized in an Autoclave
