Model

01-030

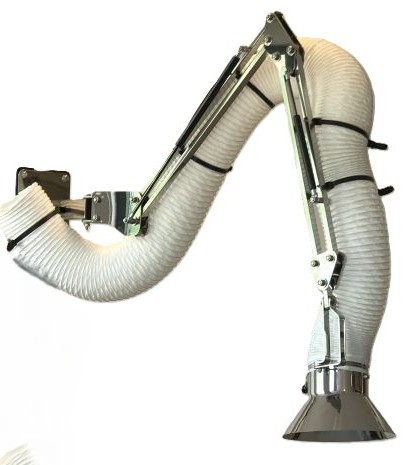

Image for Atex_Extraction_Arm_160_2.JPG Image for IMG_0144-removebg-preview (2).png

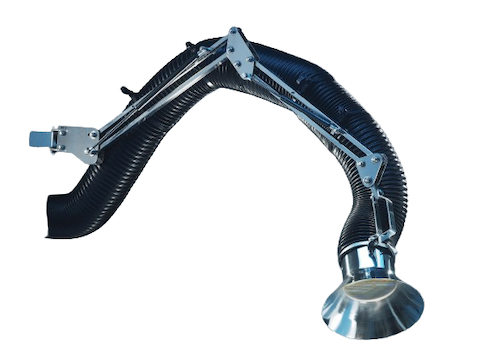

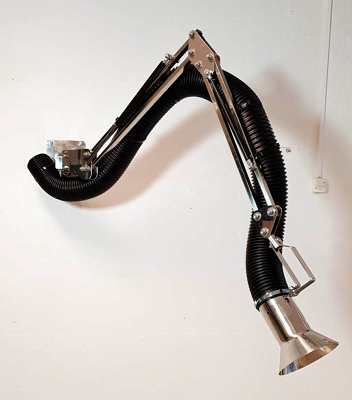

ATEX Extraction Arm

Designed for highly efficient fume and dust extraction in ATEX-regulated environments, this extraction arm ensures safe and effective removal of hazardous airborne contaminants. Built for maximum flexibility, it allows precise positioning to improve air quality and worker safety.

Function:

Precision Extraction for ATEX Environments: The ATEX Extraction Arm is designed for use in ATEX Zones 1, 2, 21, and 22, ensuring safe removal of flammable gases, vapors, mists, and combustible dust. By effectively capturing hazardous airborne contaminants at the source, it helps maintain compliance with ATEX directives 2014/34/EU and reduces the risk of explosions in regulated workspaces.

Flexible & Adaptable Design: The articulating arm features smooth motion and secure positioning, making it suitable for dynamic workspaces where precise extraction is required.

Customizable to Specific Needs: Available in multiple sizes (1.5m–4m) and with various hood configurations, including straight, 67°, 150°.

Durability & Safety: With a stainless steel build, anti-static hoses, and integrated grounding to ensure <10^4 Ohm conductivity, this arm meets the highest safety standards for explosive environments.

Construction:

  • Fully made of acid-proof, polished stainless steel for corrosion resistance and durability.
  • Spring-balanced parallel arms ensure stable positioning and effortless maneuverability.
  • Backdraft Damper
  • Free airflow hose design minimizes turbulence and pressure drops.
  • Available in multiple lengths (1.5m–4m) with various hood configurations.
  • Easy to dismantle and clean, ensuring compliance with strict hygiene and safety standards.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
ATEX-ARM-HSTD-160-4000 17"H x 14"W x 55"D 64.0000 lbs
ATEX-ARM-HSTD-160-3000 17"H x 14"W x 55"D 58.0000 lbs
ATEX-ARM-HSTD-160-2500 17"H x 14"W x 40"D 46.0000 lbs
ATEX-ARM-HSTD-160-2200 17"H x 14"W x 40"D 46.0000 lbs
ATEX-ARM-HSTD-160-2000 17"H x 14"W x 40"D 36.0000 lbs
ATEX-ARM-HSTD-160-1500 17"H x 14"W x 40"D 36.0000 lbs
ATEX-ARM-HST-160-4000 17"H x 14"W x 55"D 64.0000 lbs
ATEX-ARM-HST-160-3000 17"H x 14"W x 55"D 58.0000 lbs
ATEX-ARM-HST-160-2500 17"H x 14"W x 40"D 46.0000 lbs
ATEX-ARM-HST-160-2200 17"H x 14"W x 40"D 46.0000 lbs
ATEX-ARM-HST-160-2000 17"H x 14"W x 40"D 36.0000 lbs
ATEX-ARM-HST-160-1500 17"H x 14"W x 40"D 36.0000 lbs
ATEX-ARM-H67-160-4000 17"H x 14"W x 55"D 64.0000 lbs
ATEX-ARM-H67-160-3000 17"H x 14"W x 55"D 58.0000 lbs
ATEX-ARM-H67-160-2500 17"H x 14"W x 40"D 46.0000 lbs
ATEX-ARM-H67-160-2200 17"H x 14"W x 40"D 46.0000 lbs
ATEX-ARM-H67-160-2000 17"H x 14"W x 40"D 36.0000 lbs
ATEX-ARM-H67-160-1500 17"H x 14"W x 40"D 46.0000 lbs
ATEX-ARM-H150-160-4000 17"H x 14"W x 55"D 64.0000 lbs
ATEX-ARM-H150-160-3000 17"H x 14"W x 55"D 58.0000 lbs
ATEX-ARM-H150-160-2500 17"H x 14"W x 40"D 46.0000 lbs
ATEX-ARM-H150-160-2200 17"H x 14"W x 40"D 46.0000 lbs
ATEX-ARM-H150-160-2000 17"H x 14"W x 40"D 36.0000 lbs
ATEX-ARM-H150-160-1500 17"H x 14"W x 40"D 36.0000 lbs

Key Buying Criteria:

  • ATEX-Certified: Fully compliant for use in explosive atmospheres.
  • Corrosion-Resistant Construction: Polished stainless steel ensures long service life.
  • Smooth, Stable Maneuverability: Spring-balanced parallelogram arms provide effortless positioning.
  • Highly Customizable: Multiple lengths and hood types for application-specific solutions.
  • Easy Maintenance: Simple disassembly for cleaning and safety inspections.

Suitable For:

Top 5 contaminants/processes/applications:

  • Combustible Dust
  • Flammable Gases
  • Chemical Fumes
  • Welding Smoke
  • Solvent Vapors
  • Pharmaceutical Powders
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
ATEX-ARM-H150-160-1500 1.5m (0.25+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H150-160-2000 1.5m (0.25+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, 67° angle hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted and sterilized in an Autoclave
ATEX-ARM-H150-160-2200 2m (0.25+2m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, 67° angle hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H150-160-2500 2m (0.5+2m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, 67° angle hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H150-160-3000 3m (0.5+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, 67° angle hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H150-160-4000 4m (0.5+0.6+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, 67° angle hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H67-160-1500 1.75m (0.25+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, 150° angle hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H67-160-2000 1.5m (0.5+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, 150° angle hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H67-160-2200 2m (0.25+2m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, 150° angle hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H67-160-2500 2m (0.5+2m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, 150° angle hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H67-160-3000 3m (0.5+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-H67-160-4000 4m (0.5+0.6+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, 150° angle hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HST-160-1500 1.5m (0.25+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, straight hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HST-160-2000 1.5m (0.25+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, straight hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HST-160-2200 2m (0.25+2m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, straight hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HST-160-2500 2m (0.5+2m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, straight hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HST-160-3000 3m (0.5+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, straight hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HST-160-4000 4m (0.5+0.6+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, straight hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HSTD-160-1500 1.5m (0.25+1.5m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HSTD-160-2000 1.5m (0.5+1.5m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HSTD-160-2200 2m (0.25+2m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HSTD-160-2500 2m (0.5+2m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HSTD-160-3000 3m (0.5+3m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
ATEX-ARM-HSTD-160-4000 4m (0.5+0.6+3m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.
  • Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
  • Free flow in the hose
  • Incredibly easy to move & stays in position
  • Can easily be demounted & sterilized in an Autoclave
