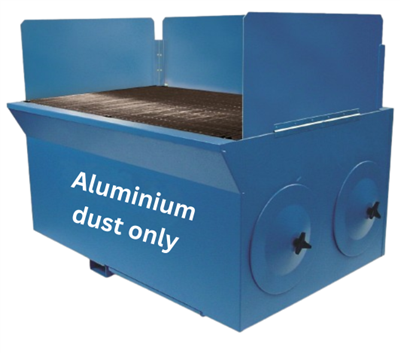

AL6 - 19.3FT ² CAPTURE AREA

Heavy-duty downdraft table to collect aluminum dust with its 42"D x 66"W work surface and includes an 18" (460mm) tall aluminum side and back shields.

Unit includes: Filtration efficiency of 99% @ 1 micron,, front door for easy access to filters, and a preventative Pressure Gauge for monitoring status of the filter, all backed by the ULTRACLEAN-PLUS™ cartridge filters (150 sq. ft. per media)

Available with:

• Localized Enclosures and Shields
• Silencer Option
• VFD Options
• Preventative Maintenance Pressure Gauges

• 10/12/14 gauge welded steel cabinet with a powder-coat finish
• Includes (2) access covers for filter removal
• A removable dust drawer and the motor is wired to an explosion-proof junction box (Ferrous grates not available - Motor starter not included)
• Electrical components meet NFPA for Class II Group-E for aluminum dust collection

• Integral Collection Area and Work Surface: Draws contaminants away from work zones without hindering movement
• Direct Drive Blower: Higher static pressure, longer filter life, and greater reliability
• Reduced Maintenance: Without the use of belts or pulleys, there's less wear items, and therefore lower operation costs
• Ultra-Seal Filter Mounting: Eliminates contaminant bypass of filters
• Proprietary Cabinet Design:Helps meet NFPA 651 for processing and finishing aluminum when properly used and maintained

Top 5 contaminants/processes/applications:

• Large Particle Aluminum dust (with a K factor below 100)
• VOC Fumes
• Composite Dust
• Deburring Dust
• Grinding Particles

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
