AL6 - 19.3FT ² CAPTURE AREA

AL6 - A heavy-duty downdraft table that allows for a maximum, precise and energy-efficient capture of aluminum contaminants (among others) at the source. With a max flow rate of 3000 CFM with a 155 FPM downdraft velocity.

Function:

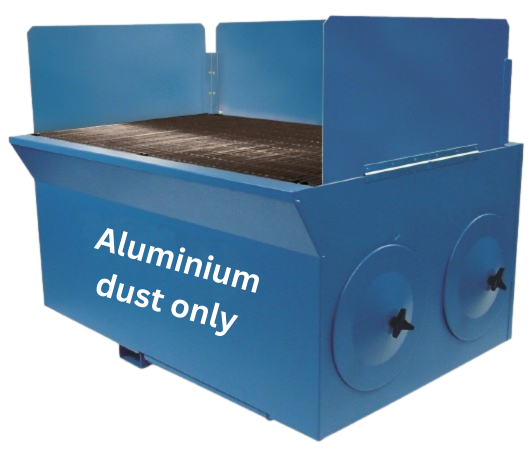

Heavy-duty downdraft table to collect aluminum dust with its 42"D x 66"W work surface and includes an 18" tall aluminum side and back shields.

Unit includes: Filtration efficiency of 99% @ 1 micron,, front door for easy access to filters, and a preventative Pressure Gauge for monitoring status of the filter, all backed by the ULTRACLEAN-PLUS™ cartridge filters (150 sq. ft. per media)

Available with:
  • Localized Enclosures and Shields
  • Silencer Option
  • VFD Options
  • Preventative Maintenance Pressure Gauges

Construction:

  • 10, 12 & 14 gauge welded steel cabinet with a powder-coat finish.
  • Includes (2) access covers for filter removal
  • A removable dust drawer and the motor is wired to an explosion-proof junction box. (Ferrous grates not available. Motor starter not included.)
  • Electrical components meet NFPA for Class II Group-E for aluminum dust collection

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
CHARCOAL-CP40 13"H x 12"W x 13"D 40 lbs
CHARCOAL-CP20 13"H x 12"W x 13"D 20 lbs
7FR0-5020 15"H x 18"W x 18"D 11 lbs

Key Buying Criteria:

  • Integral collection area and work surface:Draws contaminants away from workzones without hindering movement
  • Direct drive blower:Higher static pressure, longer filter life, and greater reliability
  • Reduced maintenance: Without the use of belts or pulleys, there's less wear items, and therefore lower operation costs
  • Ultra-seal filter mounting:Eliminates contaminant bypass of filters
  • Proprietary cabinet design:Helps meet NFPA 651 for processing and finishing aluminum when properly used and maintained

Suitable For:

Top 5 contaminants/processes/applications:

  • Large Particle Aluminum dust (with a K factor below 100)
  • VOC Fumes
  • Composite Dust
  • Deburring Dust
  • Grinding Particles
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
AL6-2 3000 cfm heavy duty downdraft table to collect aluminum dust, 42" deep x 66" wide work surface at 33" height. 200 fpm downdraft velocity, with 18" tall aluminum side & back shields, casters, aluminum grate. (224 lbs. per sq.ft./1500 total table loading), (6) ULTRACLEAN-PLUS ™ cartridge filters. (150 sq.ft. each) and a 3 Hp Group E motor. 575/3/60 Hz (9.2-8.0/4.0 amps) Class II Group-E. Electrical components meet NFPA 651 for processing and finishing aluminum when property used and maintained. 77 dBA (worker zone) / 81 dBA @ 5" (outlet area).
Part # Qty Description
1PN6-1749 Aluminum Grate Panels. Price per each (6 required for DTH800) DUSTPAK ALH-1, DUSTPAK ALH-2, DUSTPAK AL-6, DUSTPAK DTH-800, (9 required for DUSTPAK DTH-1700.)
7FR0-5020 OEM Cartridge Filter ALH-1/2/6 filter used in explosive and flamable applications such as aluminum dust applications.
CHARCOAL-CP20 20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40 40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids

Frequently bought together these options:

Part # Qty Description
AL6-S-EXT Exhaust silencer For AL6 & DT3000V2 units.
AL-6-S-ST Exhaust silencer with stack adapter. Upward discharge silencer with round 16 dia. collar to accommodate vertical exhaust ducting (duct supplied by others). For AL6 & DT3000V2 units.
Part # Qty Description
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
Part # Qty Description
AL-6-PG-6 0-6 magna-helic pressure gauge, approximately 5 diameter size. Surface mounted.
Part # Qty Description
AL-6-FIBER Fiberglass bar grate in place of aluminum bar grate.
