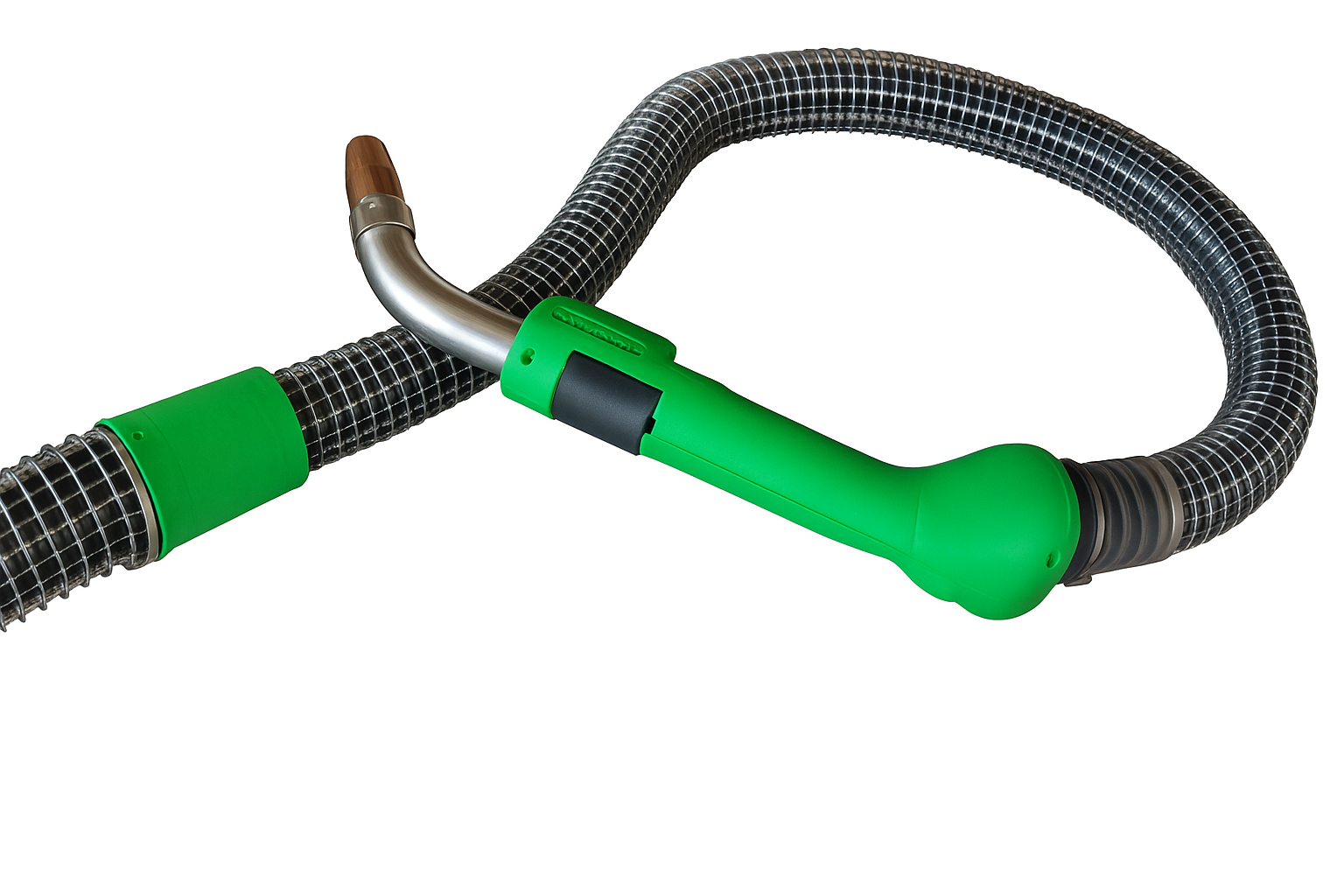

AIRGOMIG Fume Extraction MIG Gun
AIRGOMIG Series (AGM3, AGM4, AGM5) — a professional-grade, air-cooled fume-extraction MIG gun family delivering 15–65% higher extraction airflow versus competing guns and engineered to help meet ACGIH, OSHA & CCOHS exposure limits (e.g., manganese = 0.02 mg/m³ in welder breathing zone). Designed for continuous industrial use, the three models (AGM3, AGM4, AGM5) cover 300A, 400A and 500A duty ranges while remaining 5–25% lighter than comparable guns for less operator fatigue and improved arc visibility.
FUNCTION
CONSTRUCTION
KEY CRITERA
SUITABLE FOR
- Overview: AIRGOMIG extracts fumes coaxially at the arc so welders no longer need to reposition external hoods or arms. This increases arc-on time and productivity on large or awkward workpieces while maintaining superior capture efficiency.
- General function of each model:
- AGM3 (300A) — suited for general-purpose steel and aluminum MIG work where a compact, high-extraction gun is needed.
- AGM4 (400A) — a mid-range heavy-duty option for higher deposition and frequent use.
- AGM5 (500A) — the high-duty option for continuous, demanding production and robotic/automated applications.
- Configurations & common options:
- Standard cable lengths: 12' and 15' (custom lengths available on request).
- Swan neck angles: 45°, 45° long, 60°, 60° long for tight access or extended reach.
- Nozzle choices: Copper or Zirconium-Copper in sizes ½", 5/8", ¾".
- Connection interfaces: Euro, Power Pin (Miller), Power Pin (Lincoln) — compatible with virtually all feeders.
- Main benefits summary: high extraction flow (reduces manganese/Cr(VI) exposure), ergonomic 360° swivel handle and ball-joint, narrow front end for better process view, reduced heat at the handle, robust consumables for long life, and broad wire/metal compatibility.
CONSTRUCTION
- Handle & ergonomics: durable polymer handle with integrated 360° ball-joint swivel and three-position top vent for porosity control and multi-position welding comfort.
- Neck & heat management: chrome-plated metallic outer neck tube for improved heat dissipation and dimensional stability.
- Electrical & feed path: coaxial power cables with heavy-duty swaged copper connections; low-friction liners for reliable wire feeding (Teflon liner option for aluminum).
- Extraction hose & fittings: crush- and heat-resistant vacuum hose sized for high flow; secure, high-conductivity copper alloy consumables for longer life and consistent arc stability.
- Duty & build: engineered for high duty cycles (100% on CO2, 60% on mixed gas depending on model) and produced in Canada to industrial quality standards.
- Protective options: aramid protection sleeves available (7' and 10') for added abrasion and heat resistance.
KEY CRITERA
- Model vs. application: choose AGM3/AGM4/AGM5 based on peak amp needs and duty cycle (300/400/500A respectively).
- Extraction performance: confirm stated airflow vs. competitor guns and ensure your vacuum source provides equivalent suction — AIRGOMIG’s advantage depends on adequate vacuum capacity.
- Wire & metal compatibility: verify required wire sizes (steel: 0.030"–3/32"; aluminum: 0.035"–1/16" with Teflon liner) match your feeders and process.
- Connector type: pick the correct connection (Euro / Miller power pin / Lincoln power pin) for your feeder to avoid adapter complications.
- Neck angle & nozzle size: select swan neck angle and nozzle size that give proper access and capture for your joint geometry without impeding visibility.
- Durability features: look for copper alloy consumables, chrome neck, and optional aramid sleeve if you operate in abrasive or high-heat environments.
- Regulatory/compliance intent: if you need to meet manganese or Cr(VI) exposure limits, request documented test results (e.g., Group Gesfor/Pinchin data) for your specific welding parameters and positions.
SUITABLE FOR
Top 5 contaminants/processes/applications:
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
- Solid wire MIG welding (steel)
- Flux-cored welding
- Metal-core (metal-cored) wire welding
- Aluminum MIG (with Teflon liner)
- Robotic and manual MIG applications
- Confined space welding
- Maintenance, repair, and production welding where fume control is required
- Contaminants: welding fumes generally, manganese, hexavalent chromium
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
AIRGOMIG high-duty cycle, air-cooled Vacuum Assisted MIG gun designed for superior fume extraction and welding performance in demanding industrial environments. Provides exceptional mobility, comfort, and consistent weld quality. The guns come with these options:
- power cable of 300A, 400A, or 500A
- gun length of 12' or 15' (other lengths available on demand)
- welding machine connection with Euro type or power pin (Lincoln or Miller)
- gas nozzle (01), contact tip (02), swan neck (07), and liner (25) according to customer needs.
FREQUENTLY BOUGHT TOGETHER
Part #
Description
GAS NOZZLE - Cu - Ø 3/8"
GAS NOZZLE - Cu - Ø 1/2"
GAS NOZZLE - Cu - Ø 5/8"
GAS NOZZLE - Cu - Ø 3/4"
GAS NOZZLE - CuCrZr - Ø 1/2"
GAS NOZZLE - CuCrZr - Ø 5/8"
GAS NOZZLE - CuCrZr - Ø 3/4"
Part #
Description
CONTACT TIP - CU - 0.035
CONTACT TIP - CU - 0.045
CONTACT TIP - CU - 0.035 TAPER
CONTACT TIP - CUCRZR - 0.030
CONTACT TIP - CUCRZR - 0.035
CONTACT TIP - CUCRZR - 0.45
CONTACT TIP - CUCRZR - 0.052
CONTACT TIP - CUCRZR - 0.063 (1/16)
CONTACT TIP - CUCRZR - 0.094 (3/32)
Part #
Description
FUME SHROUD - STANDARD
FUME SHROUD - TULIP
300A HANDLE - ASSEMBLED
400A HANDLE - ASSEMBLED
500A HANDLE - ASSEMBLED
HANDLE VENT LATCH
HANDLE SCREWS (M3.5 X 16MM) - PACK OF 5
SWAN NECK INSULATOR (2 per gun)
SWAN NECK 45° LONG
SWAN NECK 60° LONG
SWAN NECK 180°
SWAN NECK 45°
SWAN NECK 60°
OUTER NECK 45° LONG
OUTER NECK 60° LONG
OUTER NECK 180° LONG
OUTER NECK 45°
OUTER NECK 60°
Part #
Description
STAINLESS STEEL TRIGGER
STAINLESS STEEL TRIGGER - LONG
TRIGGER SPRING
MICROSWITCH
Part #
Description
CONTROL CABLE - for 12' gun
CONTROL CABLE - for 15' gun
CONTROL CABLE - for 17' gun
CONTROL CABLE - for 20' gun
CONTROL CABLE - for 21' gun
CONTROL CABLE - for 24' gun
POWER CABLE 400A - for 12' gun
POWER CABLE 400A - for 15' gun
POWER CABLE 400A - for 17' gun
POWER CABLE 400A - for 20' gun
POWER CABLE 400A - for 21' gun
POWER CABLE 400A - for 24' gun
POWER CABLE 500A - for 12' gun
POWER CABLE 500A - for 15' gun
POWER CABLE 500A - for 17' gun
Part #
Description
SPHERICAL COUPLER Ø
SPRING CLAMP FOR SPHERICAL COUPLER
HEAT SHRINK Ø2" X 2.5"
AIRGOMIG TUBING 44.5" (400A AND 500A GUNS)
AIRGOMIG TUBING 67" (300A GUNS)
FLEXIBLE HOSE Ø 1.75" (PRICE PER FOOT)
ARAMID HOSE PROTECTION - 7' LONG
ARAMID HOSE PROTECTION - 10' LONG
HOSE COUPLER - Ø 1.75" @ Ø 2"
SPRING CLAMP FOR COUPLER Ø 1.75" @ Ø 2"
REINFORCED HOSE Ø 2" (price per feet)
HOSE BEND RESTRICTOR
HOSE CLAMP ON T
VACUUM TEE CONNECTOR Ø 2.5"
Part #
Description
WIRE LINER NYLATRON - WIRE Ø 0.030 - 0.045 - LG: 25' (BLUE)
WIRE LINER NYLATRON - WIRE Ø 0.030 - 0.045 - LG: 17' (BLUE)
WIRE LINER NYLATRON - WIRE Ø 0.052 - 1/16 - LG: 25' (RED)
WIRE LINER NYLATRON - WIRE Ø 0.052 - 1/16 - LG:175' (RED)
WIRE LINER - WIRE Ø 0.030 - 0.045 - LG: 25' (BLUE)
WIRE LINER - WIRE Ø 0.030 - 0.045 - LG: 17' (BLUE)
WIRE LINER - WIRE Ø 0.052 - 1/16 - LG: 25' (RED)
WIRE LINER - WIRE Ø 0.052 - 1/16 - LG: 17' (RED)
WIRE LINER - WIRE Ø 5/64 - 3/32 - LG:17' (BLACK)
Part #
Description
COUPLER - TEE TO COUPLING BLOCK
BRASS SCREW M6 X 1
STEEL SCREW M4 X 0.7
Part #
Description
COUPLING BLOCK - POWER PIN
POWER PIN EXTENSION
O-RING FOR POWER PIN SEAT
TRIGGER CONNECTION PLUG - MILLER
TRIGGER CONNECTION PLUG - LINCOLN
TRIGGER CONNECTION PLUG ADAPTER - MILLER @ LINCOLN
POWER PIN MILLER
GUIDE FOR POWER PIN MILLER (0.024 - 0.045)
GUIDE FOR POWER PIN MILLER (0.045 - 0.063)
GUIDE FOR POWER PIN MILLER (0.094)
POWER PIN LINCOLN
GUIDE FOR POWER PIN LINCOLN (0.024 - 0.045)
GUIDE FOR POWER PIN LINCOLN (0.045 - 0.063)
GUIDE FOR POWER PIN LINCOLN (0.094)
Part #
Description
COUPLING BLOCK FOR EURO ADAPTOR - ASSEMBLED
COUPLING BLOCK FOR EURO ADAPTOR
ADAPTOR NUT
GAS NIPPLE FOR EURO ADAPTER - ASSEMBLED
ELECTRIC SPRING CONTACT PINS - ASSEMBLED (2 per gun)
GUIDE FOR WIRE LINER (0.030 - 0.045) (FOR EURO BLOCK)
GUIDE FOR WIRE LINER (0.052 - 0.063) (FOR EURO BLOCK)
GUIDE FOR WIRE LINER (0.078 - 0.094) FOR EURO BLOCK)
Part #
Description
O-RING FOR LINCOLN REEL ADAPTOR
O-RING FOR MILLER REEL ADAPTOR
FEMALE CONNECTOR FOR EURO ADAPTOR
EURO CONNECTOR - MILLER 1828
GUIDE TUBE MILLER 1828 (0.024 - 0.035)
GUIDE TUBE MILLER 1828 (0.045 - 0.063)
GUIDE TUBE MILLER 1828 (0.094)
EURO CONNECTOR - LINCOLN 9003
GUIDE TUBE LINCOLN 9003 (0.024 - 0.035)
GUIDE TUBE LINCOLN 9003 (0.045 - 0.063)
GUIDE TUBE LINCOLN 9003 (0.094)
AIRGOMIG KEY
Part #
Description
140 CFM single Port High Vacuum Portable Extraction Unit complete with 2.3 HP motor, 120 V / 1 Ph / 60 Hz power supply, and 2" Ø inlet. Designed for connection to any vacuum-assisted MIG gun or extraction nozzle. Includes:
- Maximum Flow Rate: 140 CFM
- Maximum Vacuum: 140" H2O
- MERV 12 Filtration (225 sq. ft.)
- Tangential Inlet for Cyclonic Separation
- CSA & UL Approved
- Noise Level: 76 dB @ 5'
- Not included in base model: Hose Kit, Filter Upgrade
280 CFM Dual Port High Vacuum Portable Extraction Unit complete with 4.6 HP (2 × 2.3 HP) motors, 240 V / 1 Ph / 60 Hz power supply, and 2 × 2" Ø inlets. Designed for connection to any vacuum-assisted MIG guns or extraction nozzles. Includes:
- Maximum Flow Rate: 280 CFM
- Maximum Vacuum: 140" H2O
- MERV 12 Filtration (225 sq. )
- Tangential Inlet for Cyclonic Separation
- CSA & UL Approved
- Noise Level: 78 dB @ 5'
- Not included in base model: Hose Kit, Filter Upgrade
REMOTE START SYSTEM (1 REQUIRED PER GUN)
FLEXIBLE HOSE Ø 2.5" VSH-2.5 - 25' LENGTH
FLEXIBLE HOSE Ø 2.0" VSH-2.0 - 25' LENGTH
