2400 VOM - 2400 CFM

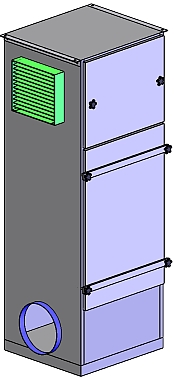

The 1200 VOM Oil Mist Collector produces 2400 CFM with 95%+ filter efficiency and is a direct machine-mounted, self-draining system that is designed for single-unit metalworking applications.
FUNCTION
CONSTRUCTION
Specifications:
Dimensions (Inches):
KEY CRITERA
SUITABLE FOR
The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.
The unit has a vertical profile and includes mounting angles to hang or surface mount, a 12" (300mm)Ø inlet on the left side, an intake plenum with an integral 3" (75mm) sump, and a drain with four access doors. It features up to three stages of filtration, beginning with a 2" (50mm) impingement pre-filter (2" aluminum mesh option), a 2" (50mm) aluminum mesh filter (4" (100mm) Chevron filter option), and a 12" (300mm) 95% primary filter (option for a 99.97% HEPA filter). The unit also comes with a standard 1.5 HP TEFC motor (3 HP TEFC BB motor option).
Typically, these can be directly mounted to machines vertically to capture contaminants directly and can be suspended from any suitable roof support strut.
Main Options:
The unit has a vertical profile and includes mounting angles to hang or surface mount, a 12" (300mm)Ø inlet on the left side, an intake plenum with an integral 3" (75mm) sump, and a drain with four access doors. It features up to three stages of filtration, beginning with a 2" (50mm) impingement pre-filter (2" aluminum mesh option), a 2" (50mm) aluminum mesh filter (4" (100mm) Chevron filter option), and a 12" (300mm) 95% primary filter (option for a 99.97% HEPA filter). The unit also comes with a standard 1.5 HP TEFC motor (3 HP TEFC BB motor option).
Typically, these can be directly mounted to machines vertically to capture contaminants directly and can be suspended from any suitable roof support strut.
Main Options:
- Many Pre-filter and main filter options and configurations
- Fan/Motor Upgrades or Options
- Hoses and mounting components.
- Sound Attenuation
- Preventative maintenance pressure gauges
- Variable Frequency Drives
CONSTRUCTION
- Includes filter access door on each side for left or right-hand applications
- Motor/Blower Access panel
- Acoustically lined blower cabinet
- Wall Mount/Rod Hanging Brackets
- Ultra-Seal® filter mounting system
- Three Phase Motor
Specifications:
- Construction: 16 Gauge cabinet with powder-coat finish
- Blower Pkg (HP): 1.5 HP
- Noise Level (dBA): 75 dBA
- Electrical: 208-230/460/3/60, 5/2.5 amps
- Nominal Air Flow (CFM): 2400
Dimensions (Inches):
- Width = 24
- Height = 75
- Depth = 24
KEY CRITERA
- High Capacity Source Capture: Simplifies OSHA compliance.
- Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; non-sparking; no belts or pulleys to replace.
- Non-Electrostatic Operation: High reliability, low maintenance.
- Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
- Vertical Design with Small Footprint: Eases installation, aids draining.
SUITABLE FOR
Top 5 contaminants/processes/applications:
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
- Grinding sparks
- CNC Machining
- Lathe Work
- Aerospace Machining
- Cold Heading of Metals
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
2400 - DRY
2400 cfm source capture industrial air cleaner with:
- (1) 2" (50mm) aluminum mesh filter
- (1) 2" (50mm) polyester pre-filter
- (1) 95% main filter (88 sq.ft. of media)
- (1) 1.5 Hp motor, 208-230/460/575/3/60 Hz (5.8/2.9 amps)
- (1) 12" (300mm) INLET ON LEFT SIDE, MAXIMUM - 75 dBA
2400 VOM
2400 CFM source capture industrial air cleaner with:
- (1) 2" (50mm) impingement pre-filter
- (1) 2" (50mm) mesh filter
- (1) 95% main filter (88 sq.ft. of media)
- (1) 1.5 HP motor, 208-230/460/3/60 & 1.5 FPT drain
- (1) 12" (300mm) inlet on left side
Part #
Description
2400 VOM-95DOP
Internal 95% DOP option, includes:
- (1) 95% short bag filter
- (1) 95% DOP high capacity filter, in place of standard 95% bag filter - Rated 2000 cfm (Adds 50 lbs. to ship weight)
2400 VOM-AD
Internal adsorption option, includes:
- (2) refillable 12" (300mm) deep 25 lb. capacity v-bank adsorber modules
- Preceded by 14" (350mm) deep filter, 95%
- (2000 CFM) carbon not included (Add 35 lbs. to ship weight)
2400 VOM-CV
CHEVRON ® option:
- (1) 2" (50mm) mesh pre-filter
- (1) 4" (100mm) CHEVRON ® mist eliminator in place of standard pre-filters
- Replaces standard impingement pre-filter
2400 VOM-EXAD
External adsorber module, holds 50 lbs charcoal, 75 lbs KMN04, not included, top discharge .
- Adds 29 to overall height & 50 lbs. to ship weight
- 2000 CFM - Requires 3HP option
2400 VOM-EXDOP
External 95% DOP filter.
- 2000 CFM, top discharge (Adds 15 to height and 75 lbs. to shipping weight)
- Requires 3HP option
2400 VOM-EXHE
External HEPA filter, 99.97%, high capacity filter with top discharge.
- Adds 15 to height and 75 lbs. to ship weight
- 2000 CFM (requires 3HP option)
2400 VOM-HE
Internal 99.97% Hepa Option, includes:
- (1) 95% short bag filter
- (1) 99.97 Hepa high capacity filter in place of standard 95% bag filter, rated 2000 CFM
- Adds 50 lbs to ship weight
Part #
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge.
3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
FREQUENTLY BOUGHT TOGETHER
Part #
Description
2400 VOM-S-EXT
Silencer, with grille.
Part #
Description
2400 VOM-1.5 HP-1PH
115/230/1/60 motor, standard blower - NO starter or switch.
2400 VOM-3 HP
3 HP, 208-230/460/3/60 high pressure Class II B.I. blower, spark resistant direct drive, 3 phase.
2400 VOM-3 HP-1PH
3 HP B.I. blower, spark resistant direct drive, 115/230/1/60HZ motor - NO starter or switch.
Part #
Description
2AF4-9100
Chevron Filter - Impingement filter.
2AF9-0006
Adsorber v-bank module.
- (2) are need for Pac 91
2AZ2-0004
2" (50mm) polyester filter (Pad Only). 2P. (24" x 24" x 2").
7FA8-0101
2" (50mm) Aluminum Mesh Pre-filter. For filter units: F-120/122/240/360/480, 200/202/203, AirPod I/II/III, VOM 2400, L-M-30/35/40/60/70, PAC-91.
7FA8-0101-OEM
Aluminum Mesh Pre-filter.
- For use with F-120/AirPod I/II/III/PAC-91
7FB6-5126
65% Main FIlter for:
Pac-91, F-120/122/240/360/480, 200, 202, 203, 2400 VOM & L-M-30/40/70
7FB9-0114-OEM
95% Efficiency Short bag filter for 2400-DRY and 2400 VOM.
7FB9-0126
95% fiberglass bag filter for filter units: F-120/122/240/360/480, 200/202/203, AirPod I/II/III, VOM 2400, L-M-30/35/40/60/70, PAC-91.
7FH9-9112
99.97% HEPA Filter - WOOD FRAME.
7FJ9-5112-OEM
DOP, high capacity filter, for F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, MP30, PRO2, MP60, PRO3, MP120, PRO4, 2400 VOM, PAC91, & DUCTPAK PC-2 / DC-2.
7FJ9-9113
HEPA, high capacity filter, metal frame. 24" x 24" x 12" for F-120, F122, F240, F360, F480, DUST CONTROL BOOTH, DC-8, MP120, & DT3000v2.0.
7FJ9-9113-OEM
HEPA, high capacity filter, metal frame. 24" x 24" x 12" for F-120, F122, F240, F360, F480, DUST CONTROL BOOTH, DC-8, MP120, & DT3000v2.0.
7FP1-1412
Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP1-4505-P
High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP3-0104-OEM
4" (100mm) Pleated filter for the following units:
- EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, & PAC91
CHARCOAL-10
10 lbs. Bag of non-recycled coconut shell-based, activated carbon.
CHARCOAL-200
200 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.
Target Contaminants:
Target Contaminants:
- Hydrocarbons
- VOC's
- Oxides of sulfur
- Formaldehyde
- Nitric Oxide
- Hydrogen Sulfide
- Lower molecular weight
- Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.
Target Contaminants:
Target Contaminants:
- Hydrocarbons
- VOC's
- Oxides of sulfur
- Formaldehyde
- Nitric Oxide
- Hydrogen Sulfide
- Lower molecular weight
- Aldehydes & organic acids
