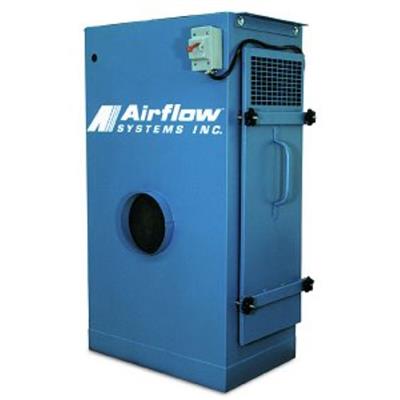

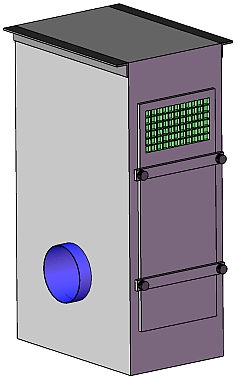

1200 VOM - 1200 CFM

The 1200 VOM Oil Mist Collector produces 1200 CFM with 95%+ filter efficiency and is a direct machine-mounted, self-draining system that is designed for single-unit metalworking applications.
FUNCTION
The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit has a vertical profile and includes mounting angles to hang or surface mount, an intake plenum with integral 3" (75mm) sump, and a drain with four access doors. It features up to four stages of filtration , beginning with a 2" (50mm) impingement pre-filter, a 2" (50mm) aluminum mesh filter, a 12" (300mm) 95% primary filter (option for a 99.97% HEPA filter), and lastly a 2" charcoal filtration (choice). The unit also comes with a standard 1 HP TEFC motor.

Typically, these can be directly mounted to machines vertically to capture contaminants directly and can be suspended from any suitable roof support strut.

Main Options:
  • Many Pre-filter and main filter options and configurations
  • Hoses and mounting components
  • Hood and Extraction Arm options
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives
CONSTRUCTION
  • Includes filter access door on each side for left or right-hand applications
  • Acoustically lined blower cabinet
  • Wall Mount/Rod Hanging Brackets
  • Ultra-Seal® filter mounting system
  • Three Phase Motor

Specifications:
  • Construction: 16 Gauge cabinet with powder-coat finish
  • Blower Pkg (HP): 1 HP
  • Noise Level (dBA): 72 dBA
  • Electrical: 115/230/1/60, 14/7
  • Nominal Air Flow (CFM): 1200

Dimensions (Inches):
  • Width = 25
  • Height = 44
  • Depth = 16
KEY CRITERA
  • High Capacity Source Capture: Simplifies OSHA compliance.
  • Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; non-sparking; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • Vertical Design with Small Footprint: Eases installation, aids draining.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Grinding sparks
  • CNC Machining
  • Lathe Work
  • Aerospace Machining
  • Cold Heading of Metals
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
1200 - DRY
1200 cfm dry source capture industrial air cleaner with:
  • (1) 2" (50mm) polyester pre-filter
  • (1) 2" (50mm) aluminum mesh pre-filter
  • (1) 95% main filter (25 sq.ft. of media)
  • 1 HP TEFC motor, 115/230/1/60Hz
  • A 8" (200mm) INLET ON FRONT ONLY. (NO SIDE OR BACK INLET) - 72 dBA
1200 VOM
1200 CFM source capture industrial air cleaner with:
  • (1) 2" (50mm) impingement pre-filter
  • (1) 2" (50mm) aluminum mesh filter
  • 12" (300mm) deep main cartridge filter
  • (1) 95% main filter (25 sq.ft of media)
  • (1) 8" (200mm) inlet in front & 1.5 drain

Part #
Description
1200 VOM-(DRY)
Dry source option - 2" (50mm) polyester pre-filter, 12" (300mm) deep main cartridge filter, 95%.
1200 VOM-2C
2" (50mm) charcoal after filter disposable with 4 lbs. charcoal.
1200 VOM-95DOP
Internal 95% DOP option:
  • (1) 95% box filter (16 sq.ft.)
  • (1) 95% DOP filter in place of standard 95% main filter, 800 cfm - Adds 15 lbs. to ship weight
1200 VOM-AD
Internal adsorption option:
  • (1) 95% box filter (16 sq.ft.)
  • (1) refillable, v-bank absorber module (12 lbs. capacity)
  • (1) polyester after-filter in place of standard 95% filter, 800 cfm - Adds 20 lbs. to ship weight
1200 VOM-CV
Chevron option: 2" (50mm) mesh pre-filter followed by a 4" (100mm) Chevron mist eliminator.
  • Replaces standard impingement pre-filter
1200 VOM-EXAD
External adsorber module, 25 lbs. charcoal, 37.5 KMN04 not included 700 CFM, top discharge.
  • Adds 13 to height and 28 lbs. to ship weight
1200 VOM-EXDOP
External DOP filter 95% 700 CFM, top discharge.
  • Adds 13 to height and 38 lbs. to ship weight
1200 VOM-EXHE
External HEPA, 99.97%, 700 cfm, with top discharge.
  • Adds 13 to height and 40 lbs. to ship weight
  • For PG-6 use 2PG6-HEPA
1200 VOM-HEPA
Internal 99.97% HEPA option:
  • (1) 95% box filter (16 sq.ft.)
  • (1) 99.97% HEPA filter in place of standard 95% main filter, 800 cfm - Adds 20 lbs. to ship weight

Part #
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.

Part #
Description
1200 VOM-Top Exhaust
Top Exhaust Kit
1200-DRY-3-PHASE
1.5HP, 208/230/460/3/60HZ, 4.2-4.8/2.4amps in place of standard 1HP 1Phase motor
1200-DRY-STAND-8
8" (200mm) H 12 ga. welded steel floor stand (Add 10 lbs. to ship weight).
FREQUENTLY BOUGHT TOGETHER

Part #
Description
1200 VOM-6P05
5' long x 6" (150mm)Ø positioner with mounting plate (Add 30 lbs. to ship weight).
1200 VOM-6P08
8' long x 6" (150mm)Ø positioner with mounting plate (Add 35 lbs. to ship weight).

Part #
Description
1200 VOM-S-EXT
Silencer (Adds 12 to height & 20 lbs. to ship weight).

Part #
Description
2AF2-5001
2" (50mm) Polyester filter with frame for 1200-DRY & 1200 VOM.
2AF2-5101
Oil mist louver.
2AF4-4100
CHEVRON ® mist eliminator (12" x 24" x 4") Impingement Filter.
2AF9-0005
Absorber module, v-bank, refillable for 1200 VOM, 1200-DRY and MINI-PAC OLD STYLE
2AZ2-0007
2" (50mm) polyester filter (pad only).
7FA8-0301
1" (25mm) aluminum mesh filter.
7FA8-0302
2" (50mm) aluminum mesh filter.
7FC7-5302
2" (50mm) charcoal filter, 4 lb. disposable.
7FH9-5306-OEM
95% D.O.P. filter, wood frame, internal 6 deep.
7FH9-5312
95% DOP filter, external 500 CFM
7FH9-9306
99.97%, HEPA filter, 6" deep. E-Z Arm 500 CFM. Rated.
7FH9-9312
HEPA, 99.97% filter, wood frame, external.
7FP9-0306
95% box filter, 16 sq.ft. use with AD option.
7FP9-0312
95% box filter, 25 sq.ft., standard, metal frame.
7HD4-3001
6" (150mm)Ø black hose. Machining UL94 Rated. For MISTPAK v2.0.
  • Price per foot
7HD4-3003
Standard Hose for 1200 VOM. MODEL-65, 1200-DRY, MISTPAK v2.0.
  • Price per foot
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
LEV-7FP9-5112
95% box filter, 50 sq.ft., standard, metal frame.
