MPH 5-HEPA

$454.18 CAD

Overview

Out of Stock
(1) Internal 99.97% HEPA filter. (17.5 x 18.5 x 4).
  • In addition to main MIST-PLUS ™ II filters

Specificiations


Shipping Specificiations

Shipping Weight 5.0 lbs.
Shipping Length 17.5 in.
Shipping Width 18.5 in.
Shipping Height 4 in.

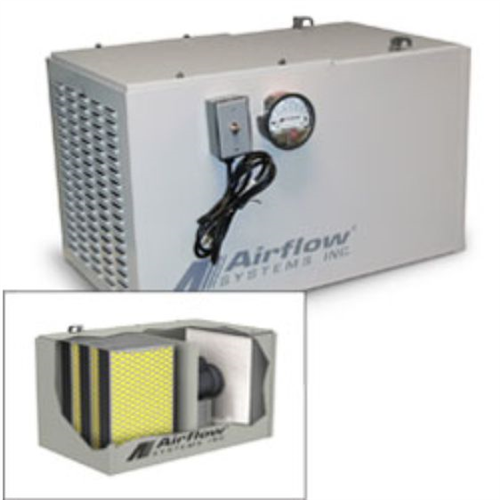

Model 11-002: MPH-5 - 500 CFM
The model MPH-5 Oil Mist Collector produces up to 500CFM with 95%+ filtration efficiency and is designed to capture mist and smoke from various metalworking applications.
FUNCTION
The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a horizontal profile. It includes an option for 24" (610mm)leg stands, mounting angles to hang or surface mount, a rubber vibration isolator, and an 8" (200mm) inlet collar on the bottom. It features (3) MistPlus II main filter, (1) MERV14 pleated synthetic washable filter, and a 1/2 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally to capture contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Multiple Filter Types and Configurations
  • Preventative Maintenance Pressure Gauges
  • Variable Frequency Drives

CONSTRUCTION
  • Includes filter access door on each side for left or right-hand applications
  • Acoustically lined blower cabinet
  • Max Door Opening: 40 ft ²
  • Ultra-Seal® filter mounting system
  • Three Phase Motor

Specifications:
  • Construction: 18 Gauge welded steel cabinet with powder-coat finish
  • Blower Pkg (HP): 1/2 HP,
  • Noise Level (dBA): 71 dBA
  • Electrical: 115/1/60, 7.2 amps
  • Nominal Air Flow (CFM): 500

KEY CRITERA
  • 95% Collection Efficiency at 1 to 4 Microns:Designed specifically for oil mist, the Airflow Systems, Inc.® MistPlus® II filter provides up to 95% filtration efficiency of 1 to 4 micron mist droplets. The proprietary, V-shaped filter design aids in drainage of collected mist; extending filter life.
  • MERV 14 Collection Efficiency:MERV 14 rated after-filter provides an additional contaminant barrier. Collection efficiency is increased; filter life is extended.
  • Sealed Cabinet Construction:18 gauge steel, seam-sealed cabinet eliminates contaminant escape common with stitch-welded or bolt-on panel designs.
  • Lever locking Filter Placement System:Ensures quick and accurate filter replacement; eliminates contaminant bypass of filters, reduces equipment and facility maintenance. Top access door speeds filter maintenance.
  • Low-Profile Cabinet Design:Machine-top orientation enables installation directly above the machine tool-even in low ceiling applications; saves floor space.
  • Superior Liquid Drainage: 8-inch bottom inlet allows for 24-hour, 7-day operation with no need for manual handling of collected liquids.
  • Extended Filter Life, Reduced Maintenance:MistPlus® II filter design reduces dirt loading and filter maintenance; extending filter life up to two years.
  • Backward-Inclined Blower: Energy-efficient; superior air flow, low horsepower requirement, higher static pressure operation; acoustically-lined blower cabinet.

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Grinding sparks
  • CNC Machining
  • Lathe Work
  • Aerospace Machining
  • Cold Heading of Metals

Solutions
Industries
  • Aerospace Aerospace
  • Construction Construction
  • Educational Educational
  • Food & Beverage Food & Beverage
  • Machine Shop Machine Shop
  • Metalworking Metalworking
Processes
  • Chip Collection
  • Circular Saw
  • Food Packaging Plant
  • Machine Shop
  • Machining
  • Metal Spinning
  • Mist Collection
  • Surface Grinders
  • Swing Grinder
Engineering Control Methods
No control methods exist for this product
