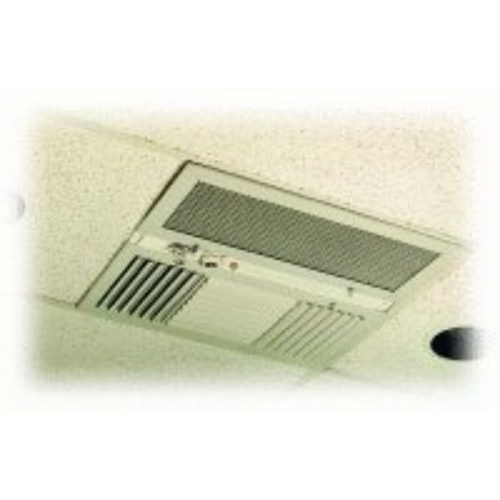

The FM600 Ambient Air Cleaner is a great solution for above-ceiling mounting when faced with a standard 2' x 2' ceiling tile opening. This model features a flow rate of 600 CFM.
For your Safety, each HEPA H14 filter is delivered with a Certificate and is leak tested. The efficiency is over 99.995% on particles and viruses which are under/over 0.16 micrometer (down to 0.01 micrometer). The Filters are manufactured in Europe by a HEPA H14 specialist, well known all over the world. This unit works on the principle of "Clean-to-less-clean" air movement, which supplies clean filtered air to the occupants breathing zone through a pre-engineered diffusion hood explicitly designed for the application. An ultra-low noise fan draws the room air in at floor level where the air is least clean. The air is drawn in by a variable speed, centrifugal fan that allows the operator to control the flow based on the number of people in the room. The air passes through a silenced chamber engineered to dampen the associated noise generated by the air movement. A multi-stage filter module filters the contaminated air containing virus particles as small as 0.1 Micron (MicroMeters) to a purity level of 99.995%. Clean filtered air is returned to the indoor space through a low-noise duct and diffuser hood.
Mounting configurations for this particular unit are completely above the ceiling with a T-bar mount, and can be mounted flush with the ceiling tiles. The FM600 features washable and/or disposable filters
Main Options:
- Filter Options
- Fan Upgrades
- Motor Upgrades
- Variable Frequency Drives
CONSTRUCTION
- 20 ga. welded steel cabinet
- Powder-coat white finish
- Direct drive, 9” (230mm) centrifugal blower
- 1/10 HP energy-efficient motor, 115/1/60Hz (1.3 amps), 3-speed control
- 3-way adjustable curved blade outlet grille
- Metal egg crate intake grille
- Motor wired to junction box on inside of unit
KEY CRITERA
- Complete, Above-Ceiling Unit: Installs completely concealed; quiet operation.
- Direct-Drive Blower: Long filter life and greater reliability; no belts or pulleys to replace.
- Non-Electrostatic Operation: High reliability, low maintenance.
- Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
- High-Efficiency Filter Media: Provides maximum collection and filtration effectiveness.
- ODOR/EX Cartridge Filter: Replaceable unit adjustable to varying environments to provide room deodorization as well as odour control.
- Disposable/Cleanable Media Filters: Can be vacuumed or replaced when dirty, no tools needed.
- Commercial Duty Cabinet With Textured Epoxy Finish: Durable protection, aesthetic appeal.
- Adjustable Exhaust: Adjustable 3-Way exhaust grill for improved air circulation.
SUITABLE FOR
- Food Odours
- Atmospheric Dust
- Food and Pharma Dusts
- Offices
- Break Rooms
