BDT-1000-1000

$4,825.60 CAD

Overview

Standard Product
In Stock

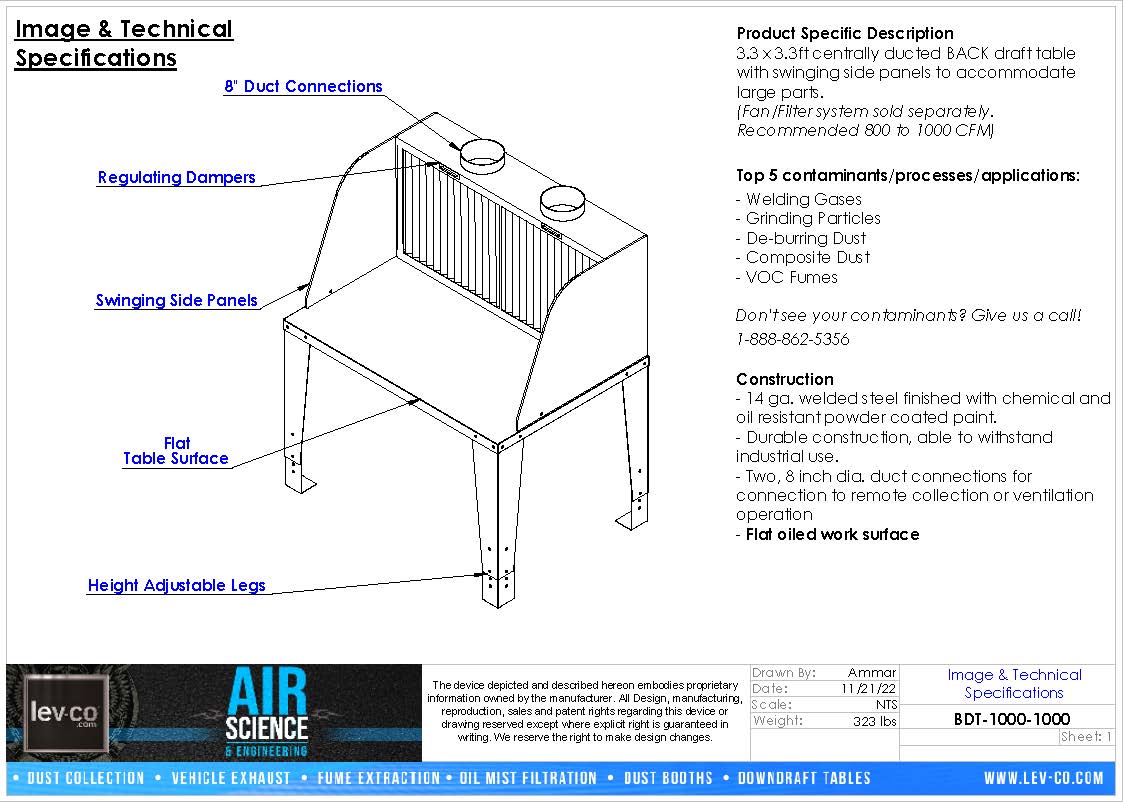

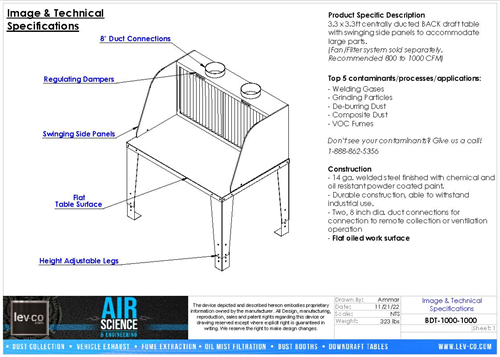

1m Super-Mesa centrally ducted BACK draft table. Fan/filter system sold separately. Recommended 800 to 1000CFM. Unit comes standard with the following features:
  • Regulating damper
  • 1m x 1m Flat oiled work surface
  • Swinging side panels to accommodate large parts
  • Height adjustable legs
  • 8" (200mm) duct connection

Specificiations


Shipping Specificiations

Shipping Weight 323.0 lbs.
Shipping Length 72 in.
Shipping Width 49 in.
Shipping Height 41 in.
Model 05-014: Super/Maxi-Mesa - 3.3'D x 3.3'W or 3.3'D x 4.6'W
Maxi-Mesa - A modern combined Backdraft and Downdraft Table with a built-in regulating Damper. With a max flow rate of 1180 CFM to 1770 CFM.
FUNCTION
Maxi-Mesa is suitable for welding and heavier grinding. It extracts the contaminants backwards and downwards. Maxi-Mesa can be used in many applications.

Unit includes:
  • Unique Regulating Damper: Maxi-Mesa is equipped with a regulating damper which makes it possible to adjust the width of the vertical openings of the backdraft panel. You can quickly adjust the total air volume between backdraft and downdraft with a handle on the front.
  • Extraction Arm: The Maxi-Mesa can be equipped with a Flexi 1.5m extraction arm for heavy welding. Thanks to the unique regulating damper, the total air volume can be divided between backdraft, downdraft, and extraction arm.
Available with:
  • VFD Options
  • Preventative Maintenance Pressure Gauges

CONSTRUCTION
  • 14 gauge welded steel finished with chemical and oil resistant powder coated paint.
  • Durable construction, able to withstand industrial use.
  • 1 or 2 duct connections 8" (200mm)Ø for connection to remote collection or ventilation operation.
  • Available with optional top-mounted extraction arm.
  • 8" (200mm)Ø x 1.5m (5') in length extraction arm.
  • 1m and 1.4m models.

KEY CRITERA
  • Unique Regulating Damper: Quickly adjust the total air volume between backdraft and downdraft with a handle on the front side
  • Strong Design: The 2mm and 3mm steel construction allows for heavy duty applications in a variety of facilities
  • Solid Steel Construction: Allows this unit to be used in high temp applications without the risk of melting/warping, or fire
  • Optional Extraction Arm can be easily attached for maximum extraction from every angle
  • Standard or Raised Height gives the option of sitting or standing operation

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Welding Gases
  • Grinding Particles
  • Deburring Dust
  • Composite Dust
  • VOC Fumes
