Model

01-006

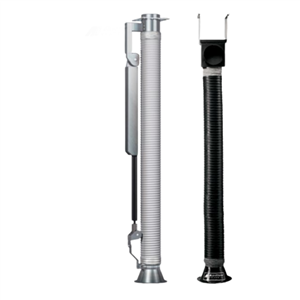

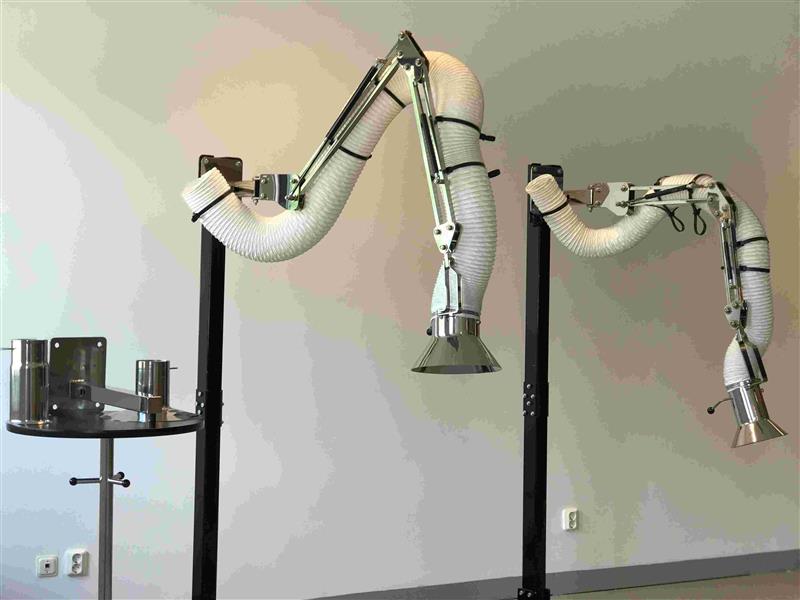

Telescopic Extraction Arm - Extraction Arms

Telescopic arms are ideally suited for workstations positioned against walls or in confined spaces. With no internal obstructions in the hose, airflow is optimized, while cleaning and maintenance are made simpler.
Lengths are available from 3-4 feet, 3.5-5 feet, or 4-7 feet dimensions. With either 4" (100mm) or 6" (150mm) hose.
The flowrate of the 4" (100mm) hose is 300 CFM and 600 CFM for the 6" (150mm) hose.

Function:

The telescoping arms are easily adjustable and offer 360º rotation at the base joint, providing exceptional versatility and ease of use.

Telescoping arms are designed for seamless connection to new or existing ductwork, boom arms, or directly to Airflow collection and filtration units, and feature a fastener-free design within the airflow stream.

These arms offer an ideal solution for small or confined spaces where the ability to compact the arm is essential.

Options:
  • Adjustable Air Flow Damper: Increases operating efficiency; regulate airflow levels and blower usage based on application-specific need.
  • White Hose, Hood, and Mounting Bracket: UL-rated hose and coordinated components work to enhance facility cleanliness and appearance in non-corrosive environments.
  • Static-free Hose: Reduce possible static shock of personnel and workpieces; speed maintenance, minimize particulate retention to the hose.
  • Light Kit: 35 watt, 115 volt halogen light kit improves worker visibility.
  • Intake Guard: Protect ducting and the blower unit from over-sized debris, such as rags and plastic sheeting that could hinder the efficient operation of the system.
  • Exhaust Blower Units: Multiple blower units are available, from .75 HP up to 7.5 HP, depending on the application. Consult your representative for recommendations.

Construction:

  • Come with either 4" or 6'' diameter hose
  • Lengths ranging from 3-4 feet, 3.5-5 feet, or 4-7 feet
  • Includes universal mounting bracket for mounting directly to a wall, or connecting to a fixed duct
  • Standard E-Z Arm wall bracket, or boom arm
  • Damper Included
  • Nominal Flow Rate @ 3000 FPM: 260 CFM

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
4TS7 4.5"H x "W x 4.5"D 20 lbs

Key Buying Criteria:

  • Easily compacted and stored out of the way
  • Easily to maneuverable into tight spaces
  • Versatile design allowing multiple installations and configurations
  • Low headroom
  • Good for vertical and linear work application

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding schools
  • Lab/pharmaceutical applications
  • Small bench work
  • Food/pharmaceutical dust
  • Maintenance facilities
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
4TS4 4" (100mm)Ø extraction arm telescopes from 3' (0.9m) to 4' (1.2m).
4TS5 4" (100mm)Ø extraction arm telescopes from 3.5' (1.1m) to 5' (1.5m).
  • Comes with wall bracket
4TS7 4" (100mm)Ø extraction arm telescopes from 4.5' (1.4m) to 7' (2.1m).
6TS4 6" (150mm)Ø extraction arm telescopes from 3' (0.9m) to 4' (1.2m).
  • Wall bracket & damper included
6TS5 6" (150mm)Ø extraction arm telescopes from 3.5' (1.1m) to 5' (1.5m).
  • Wall bracket & damper included
6TS7 6" (150mm)Ø extraction arm telescopes from 4.5' (1.4m) to 7' (2.1m).
  • Wall Bracket & damper included

Frequently bought together these options:


Part # Qty Description
MINI-PAK-PG-5 0-5" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part # Qty Description
DSIC** P-147-2 P-Max direct drive fan 0.5 HP 115-230V/1/60.
P-147-1 P-Max direct drive fan 0.5 HP 115-230V/1/60
  • 100% weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-147-2 P-Max direct drive fan 0.5 HP 208-230-460V/3/60.
P-147-3 P-Max direct drive fan 0.5 HP 575V/3/60.

Part # Qty Description
P-148-1 P-Max© direct drive fan 0.75 HP 115-230V/1/60.
P-148-2 P-Max© direct drive fan 0.75 HP 208-230V/460V/3/60.
P-148-3 P-Max© direct drive fan 0.75 HP 575V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
M-P-149-2 P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-149-3 P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-2 P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-3 P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
M-P-152-1 P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-152-3 P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
EX-FAN-1.5-115/230 P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
EX-FAN-1.5-3-575 P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
P-154-1.5HP-1 **DO NOT USE**P-Max© direct drive fan 1.5 HP 115-230V/1/60 Note: Must not be used below 8" SP 100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"

Part # Qty Description
P-023 Ceiling/Floor Stanchion 9' 75" (3000mm) for Flexi & Pro-Flex Extraction Arms.
P-021 Ceiling/Floor Stanchion 3' 3" (1000mm) for Flexi & Pro-Flex Extraction Arms.
P-022 Ceiling/Floor Stanchion 6' 5" (2000mm) for Flexi & Pro-Flex Extraction Arms.
WB Wall Bracket, painted black.

Part # Qty Description
HS-2500-160 2500°F Hose Shield for all 6.33" (160mm)Ø hoses. 30" (760mm) in length

Part # Qty Description
LD-240-BRACKET Support bracket for the LD-240-3 Fan.
LD-240-BRACKET-BACK Support bracket for the LD-240-3 Fan, back plate. 1/4" MILD STEEL
LD-240-BRACKET-L Support bracket for the LD-240-3 Fan, Left Side. 1/4" MILD STEEL
LD-240-BRACKET-R Support bracket for the LD-240-3 Fan, Right Side. 1/4" MILD STEEL
LD-240-BRACKET-RED-27-20 LD-240-3 Reducer 27" to 20"
LD-240-BRACKET-RIB Support bracket for the LD-240-3 Fan, Rib, and Gusset. 1/4" MILD STEEL
LD-240-BRACKET-SUP-L Support bracket for the LD-240-3 Fan, Left Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-SUP-R Support bracket for the LD-240-3 Fan, Right Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-TOP Support bracket for the LD-240-3 Fan, Top plate with 29" D by 16x0.5" bolt hole pattern. 1/4" MILD STEEL
OC-SQ-CRP-400-STACK Galvanized square no-loss stack for CPR-400 Exhaust fans at OC transpo
REM-FAN-BR-160 P-MAX Fan Mount Bracket complete with:
  • Swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels & Hose Drops, & VE Articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-045-L P-MAX Fan Mount Bracket
  • Complete with swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels, Hose Drops, & VE articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149 & P-152 up to P-156 Fans.
P-045-R1-1 6.33" (160mm) Swivel Retention Plate for P-045. 14 GA GALVANIZED
P-045-R1-2 6.33" (160mm) Swivel with 1/2" collar for P-045. 16 GA GALVANIZED
P-045-R1-3 Lev-Co formed P-045 Mounting Bracket. 12 GA Mild Steel
REM-FAN-BR-200 P-MAX Fan Mounting Bracket complete with swivel.
  • To be used to install a P-Max fan on a H-Max Extension Boom for Flexi-II, E-Z Arm, & Pro-Flex Extraction Crane 8" (200mm)Ø, VE Extension Boom for Hose Reels & Hose Drops 8" (200mm)Ø & VE articulating Crane for Hose Drops 8" (200mm)Ø
  • For use only with P-147, P-148, P-149, P-152 up to P-156 Fans
P-766-HD-GALV Heavy duty galvanized fan mounting bracket with hardware to connect fan.
P-766-HD-GALV-TELE Heavy-duty galvanized telescopic fan mounting bracket w/ hardware to connect fan and height-adjustable.
P-766-LW-SS Lightweight stainless steel fan mounting bracket with hardware to connect fan.

Part # Qty Description
TELESCOPING ARM-DAMPER Adjustable air flow damper option for Telescoping Arm.
TELESCOPING ARM-LTK-35 Light kit (no remote switches available).
TELESCOPING ARM-RAG GUARD Rag guard (hood inlet screen) option for Telescoping Arm.
  • Not required when ordering light kit
TELESCOPING ARM-STATIC FREE Replaces the standard hose with static free hose.
  • TELESCOPING ARM
TELESCOPING ARM-WHITE Paints the universal wall bracket & hood white, includes white hose.
