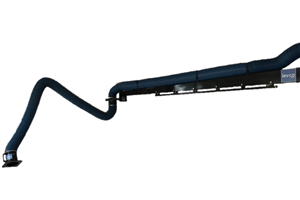

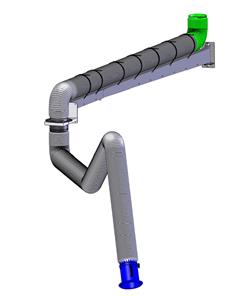

SUPER FLEX© - Ø 6.5'' & 8''

EXTENDED REACH Extractor arms provide unsurpassed rangex of motion up to 70'.

Function:

The extractor arm features advanced parallelogram technology, with three spring-assisted joints that provide exceptional ease of movement, a "stay-in-place" design, simplified maintenance, and high-velocity extraction where required. The horizontal arm is capable of suspending cables, hoses, welding tools, and other equipment weighing up to 50 kg (110 lbs.) (Optional Kit Available).

Construction:

A black steel hood with optimized airflow and built in damper.
Flameproof double skin flexible hose of PVC 6.33" (160mm) or 8" (200mm)Ø with internal steel spiral. Each comes complete with wall bracket, horizontal arm with ball bearings, extractor arm, hose and hood.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
EX-ARM-200-9000 12"H x 96"W x 40"D 205 lbs
EX-ARM-200-8000 12"H x 96"W x 40"D 195 lbs
EX-ARM-200-7000 12"H x 96"W x 40"D 130 lbs
EX-ARM-200-6000 12"H x 96"W x 40"D 115 lbs
EX-ARM-160-9000 12"H x 96"W x 40"D 205 lbs
EX-ARM-160-8000 12"H x 96"W x 40"D 135 lbs
EX-ARM-160-7000 12"H x 96"W x 40"D 120 lbs
EX-ARM-160-6000 12"H x 13"W x 13"D 105 lbs
EAF-8-44-ND "H x "W x "D 0 lbs
EAF-8-44 "H x "W x "D 0 lbs
EAF-8-40-ND "H x "W x "D 0 lbs
EAF-8-40 "H x "W x "D 0 lbs
EAF-8-37-ND "H x "W x "D 0 lbs
EAF-8-37 "H x "W x "D 0 lbs
EAF-8-30-ND "H x "W x "D 0 lbs
EAF-8-30 "H x "W x "D 0 lbs
EAF-8-27-ND "H x "W x "D 0 lbs
EAF-8-27 "H x "W x "D 0 lbs
EAF-8-24-ND "H x "W x "D 0 lbs
EAF-8-24 "H x "W x "D 0 lbs
EAF-8-20-ND "H x "W x "D 0 lbs
EAF-8-20 "H x "W x "D 0 lbs
EAF-6-44-ND "H x "W x "D 0 lbs
EAF-6-44 "H x "W x "D 0 lbs
EAF-6-43 "H x "W x "D 0 lbs
EAF-6-40-ND "H x "W x "D 0 lbs
EAF-6-40 "H x "W x "D 0 lbs
EAF-6-37-ND "H x "W x "D 0 lbs
EAF-6-37 "H x "W x "D 0 lbs
EAF-6-30-ND "H x "W x "D 0 lbs
EAF-6-30 "H x "W x "D 0 lbs
EAF-6-27-ND "H x "W x "D 0 lbs
EAF-6-27 "H x "W x "D 0 lbs
EAF-6-24-ND "H x "W x "D 0 lbs
EAF-6-24 "H x "W x "D 0 lbs
EAF-6-20 "H x "W x "D 0 lbs

Key Buying Criteria:

Overall reach up to 30' working radius: extraction ventilation where you need it when you need it
Ergonomic design: requires less than 2lbs of force to position
Duale purpose main boom: also serves as a sliding tool holder (sold as an option)
Orbital Break Mechanism: precise control of friction applied to bearing to eliminate "arm/boom drift"
"Stay in Place" Low Maintenance Design: guaranteed to achieve 1,000 articulations before requiring adjustments

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding fume
  • Grinding
  • Dusts
  • Oil mists
  • Vapours
  • VOCs
  • Plastic fumes
  • General dusts
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
EX-ARM-160-6000 20' Super-Flex© 2m (6.7')L Horizontal Arm & 4m (13.5')L Extractor Arm.
  • Hood with ring handle & built-in damper
  • Flame proof PVC hose 6.33" (160mm)Ø with internal steel spiral
  • Wall bracket, horizontal arm with ball bearings, extractor arm, hose & hood included
FAN AND FAN BRACKET ORDERED SEPERATELY
EX-ARM-160-7000 23' Super-Flex comes complete with, 2m (6.7')L Horizontal Arm & 5m (16.5')L Extractor Arm.
  • Hood with handle & built-in damper
  • Flame proof PVC hose 6.33" (160mm)Ø with internal steel spiral
  • Wall bracket, horizontal arm with ball bearings, extractor arm, hose & hood included
FAN AND FAN BRACKET ORDERED SEPERATELY (D)
EX-ARM-160-8000 26.5' Super-Flex Arm, complete with 3m (10')L Horizontal Arm & 5m (16.5')L Extractor Arm.
  • Hood with ring handle & built-in damper
  • Flame proof PVC hose 6.33" (160mm)Ø with internal steel spiral
  • Wall bracket, horizontal arm with ball bearings, extractor arm, hose & hood included
FAN AND FAN BRACKET ORDERED SEPERATELY
EX-ARM-160-9000 30.5' Super-Flex Arm, complete with 3m (14')L Horizontal Arm & 5m (16.5')L Extractor Arm.
  • Hood with ring handle & built-in damper
  • Flame proof PVC hose 6.33" (160mm)Ø with internal steel spiral
  • Wall bracket, horizontal arm with ball bearings, extractor arm, hose & hood included
FAN AND FAN BRACKET ORDERED SEPERATELY

Part # Qty Description
EAF-6-20-ND 20' Extraction Arm, 6.5" (165mm)Ø. Complete with 1.5 HP Fan, Switch & Plug
EAF-6-24-ND 24’ Extraction Arm, 6.5" (165mm)Ø. Complete with 1.5 HP Fan, Switch & Plug
EAF-6-27-ND 27’ Extraction Arm, 6.5" (165mm)Ø. Complete with 1.5 HP Fan, Switch & Plug
EAF-6-30-ND 30’ Extraction Arm, 6.5" (165mm)Ø. Complete with 1.5 HP Fan, Switch & Plug
EAF-6-37-ND 37’ Extraction Arm, 6.5" (165mm)Ø. Complete with 1.5 HP Fan, Switch & Plug
EAF-6-40-ND 40’ Extraction Arm, 6.5" (165mm)Ø. Complete with 1.5 HP Fan, Switch & Plug
EAF-6-44-ND 44’ Extraction Arm, 6.5" (165mm)Ø. Complete with 1.5 HP Fan, Switch & Plug

Part # Qty Description
EAF-6-20 20’ Extraction Arm, 6.5” (165mm)Ø. Complete with 1.5 HP Fan & Install Kit
EAF-6-24 24’ Extraction Arm, 6.5” (165mm)Ø. Complete with 1.5 HP Fan & Install Kit
EAF-6-27 27’ Extraction Arm, 6.5” (165mm)Ø. Complete with 1.5 HP Fan & Install Kit
EAF-6-30 30' Flexi-I Extraction Arm 6.5” (165mm)Ø. Complete with 1.5 HP Fan & Duct Kit
EAF-6-37 37' Flexi-I Extraction Arm 6.5” (165mm)Ø. Complete with 1.5 HP Fan & Duct Kit
EAF-6-40 40' Flexi-I Extraction Arm 6.5” (165mm)Ø. Complete with 1.5 HP Fan & Duct Kit
EAF-6-43 43' Flexi-I Extraction Arm 6.5" (165mm). Complete with 1.5 HP Fan & Install Kit
EAF-6-44 44' Flexi-I Extraction Arm 6.5” (165mm)Ø. Complete with 1.5 HP Fan & Duct Kit

Part # Qty Description
EX-ARM-200-6000 Super-Flex II© 2m (6.7')L Horizontal Arm & 4m (13.5')L Extractor Arm.
  • Hood with ring handle
  • Damper not included
  • Flame proof PVC hose 8" (200mm)Ø with internal steel spiral
  • Wall bracket, horizontal arm with ball bearings, extractor arm, hose & hood included
FAN AND FAN BRACKET ORDERED SEPERATELY
EX-ARM-200-7000 Super-Flex II© 2m (6.7')L Horizontal Arm & 5m (16.5')L Extractor Arm.
  • Hood with ring handle
  • Damper not included
  • Flame proof PVC hose 8" (200mm)Ø with internal steel spiral
  • Wall bracket, horizontal arm with ball bearings, extractor arm, hose & hood included
FAN AND FAN BRACKET ORDERED SEPERATELY
EX-ARM-200-8000 Super-Flex II© 3m (10')L Horizontal Arm & 5m (16.5')L Extractor Arm.
  • Hood with ring handle
  • Damper not included
  • Flame proof PVC hose 8" (200mm)Ø with internal steel spiral
  • Wall bracket, horizontal arm with ball bearings, extractor arm, hose & hood included
FAN AND FAN BRACKET ORDERED SEPERATELY
EX-ARM-200-9000 Super-Flex © 4m (14')L Horizontal Arm & 5m (17')L Extractor Arm, complete with:
  • Hood with ring handle (damper NOT included)
  • Flame proof PVC hose 8" (200mm)Ø with internal steel spiral
  • Wall bracket horizontal arm with ball bearings, extractor arm, hose, & hood

Part # Qty Description
EAF-8-20-ND 20’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan, Switch & Plug
EAF-8-24-ND 24’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan, Switch & Plug
EAF-8-27-ND 27’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan, Switch & Plug
EAF-8-30-ND 30’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan, Switch & Plug
EAF-8-37-ND 37’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan & Switch & Plug
EAF-8-40-ND 40’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan, Switch & Plug
EAF-8-44-ND 44’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan, Switch & Plug

Part # Qty Description
EAF-8-20 20’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit
EAF-8-24 24’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit
EAF-8-27 27’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit
EAF-8-30 30’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit
EAF-8-37 37’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit
EAF-8-40 40’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit
EAF-8-44 44’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit

Frequently bought together these options:


Part # Qty Description
RELH-6-24-EXT Conical Bell Mouth hood extension for 6" (150mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-6-36-EXT Conical Bell Mouth hood extension for 6" (150mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Verison
RELH-8-24-EXT Conical Bell Mouth hood extension for 8" (200mm) hoods.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-8-36-EXT Conical Bell Mouth hood extension for 8" (200mm) hoods.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version

Part # Qty Description
RELH-6-24 Conical Bell Mouth Receiving hood for 6" (150mm) extraction arms.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-6-36 Conical Bell Mouth Receiving hood for 6" (150mm) extraction arms.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-8-24 Conical Bell Mouth Receiving hood for 8" (200mm) extraction arms.
  • 24" (610mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version
RELH-8-36 Conical Bell Mouth Receiving hood for 8" (200mm) extraction arms.
  • 36" (915mm)Ø receiving end
  • 16G, Aluminum
  • Bell Mouth Version

Part # Qty Description
M-P-149-2 P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-2 P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
M-P-152-3 P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
EX-FAN-1.5-3-575 P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
P-154-1.5HP-1 **DO NOT USE**P-Max© direct drive fan 1.5 HP 115-230V/1/60 Note: Must not be used below 8" SP 100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"

Part # Qty Description
HEM-160 Hemeon Extension Hood for 6.33" (160mm)Ø hoods. Must be used in conjunction with a SM-160 safety mesh
HT-600-160 Hose; 315° C (600° F) for Flexi 6.33" (160mm) Extractor Arms (price per foot)
  • Please add 3' of hose to the length of the extractor the hose is to be used with
    • EG: a P-009 14' extractor would require 17' of hose

Part # Qty Description
LD-240-BRACKET Support bracket for the LD-240-3 Fan.
LD-240-BRACKET-BACK Support bracket for the LD-240-3 Fan, back plate. 1/4" MILD STEEL
LD-240-BRACKET-L Support bracket for the LD-240-3 Fan, Left Side. 1/4" MILD STEEL
LD-240-BRACKET-R Support bracket for the LD-240-3 Fan, Right Side. 1/4" MILD STEEL
LD-240-BRACKET-RED-27-20 LD-240-3 Reducer 27" to 20"
LD-240-BRACKET-RIB Support bracket for the LD-240-3 Fan, Rib, and Gusset. 1/4" MILD STEEL
LD-240-BRACKET-SUP-L Support bracket for the LD-240-3 Fan, Left Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-SUP-R Support bracket for the LD-240-3 Fan, Right Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-TOP Support bracket for the LD-240-3 Fan, Top plate with 29" D by 16x0.5" bolt hole pattern. 1/4" MILD STEEL
P-016 P-Max Fan Mounting Bracket for Pro-Flex & Supermax Extraction Arms.
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
REM-FAN-BR-160 P-MAX Fan Mount Bracket complete with:
  • Swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels & Hose Drops, & VE Articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-045-L P-MAX Fan Mount Bracket
  • Complete with swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels, Hose Drops, & VE articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149 & P-152 up to P-156 Fans.
P-045-R1-1 6.33" (160mm) Swivel Retention Plate for P-045. 14 GA GALVANIZED
P-045-R1-2 6.33" (160mm) Swivel with 1/2" collar for P-045. 16 GA GALVANIZED
P-045-R1-3 Lev-Co formed P-045 Mounting Bracket. 12 GA Mild Steel
REM-FAN-BR-200 P-MAX Fan Mounting Bracket complete with swivel.
  • To be used to install a P-Max fan on a H-Max Extension Boom for Flexi-II, E-Z Arm, & Pro-Flex Extraction Crane 8" (200mm)Ø, VE Extension Boom for Hose Reels & Hose Drops 8" (200mm)Ø & VE articulating Crane for Hose Drops 8" (200mm)Ø
  • For use only with P-147, P-148, P-149, P-152 up to P-156 Fans

Part # Qty Description
LEV-P-018-160-2MAG LEV-P-018-160-2MAG - 3m (10') - 6.33" (160mm)Ø Extension Hose for extraction arms, complete with magnetic nozzle.
P-017-160 2m (6.5') - 6.33" (160mm)Ø Extension Hose for extraction arms.
  • Complete with magnetic nozzle
SD-150-1 6" (150mm)Ø black powder coated spiral duct kit - 1' length.
SD-3-150 6" (150mm)Ø black powder coated spiral duct - 56" length.
SD-4-150 6" (150mm)Ø black powder coated spiral duct kit - 82" length.
Get My Instant Quote
Ext.

Technical Info Requested

This site is protected by reCAPTCHA Enterprise and the Google Privacy Policy and Terms of Service apply.
