Model

10-011

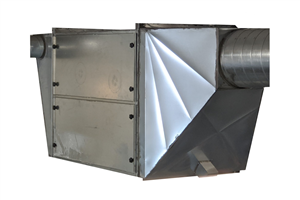

Image for Modular Side Access Housing.jpg

Modular Side Access Housing - 4000 TO 20,000 CFM

The modular filter housing is a blower-less filtration housing designed with up to 5 stages of filtration for filtering out airborne dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial applications. individual units have an airflow rating of 500-4000 CFM. Airflow of combined units ranges from 1000-20000 CFM.

  • Largest filtration, smallest dimensions
  • Multiple installation configuration options, allowing for installation in congested areas.

Function:

This filter system comes standard with (3) sets of modular tracks to hold 1" (25mm), 2" (50mm), or any other filters with a 1" header. The modular aspect of this model is useful for achieving the correct sizing and number of filters required for the specific application.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The mounting options range from the ceiling to the wall, and can either be suspended or directly mounted.

Main Options:
  • Pressure Gauges
  • Variable Frequency Drives

Construction:

  • 12/14/16 ga. Zinc coated steel cabinet
  • Finished with powder coat or a galvanized finish
  • ZERO BYPASS filter mounting system is used on “HEADER” style filters (one ZBP supplied with each module)
  • Bolt-on side access doors are supplied as standard
  • This design features a blower-less construction
  • Extra filters are optional

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MSAH-48x96 1"H x 1"W x 1"D 0 lbs
MSAH-48x72 1"H x 1"W x 1"D 0 lbs
MSAH-48x48 1"H x 1"W x 1"D 0 lbs
MSAH-48x24 1"H x 1"W x 1"D 0 lbs
MSAH-48x120 1"H x 1"W x 1"D 0 lbs

Key Buying Criteria:

Application-Specific Design:
  • Contaminant-Specific Designs: Ability to tailor filter selection for specific contaminant, including air-cloth ratio
  • Variable Flowrate between 1000-20000CFM, giving the ability to set flowrate to suit your specific applications

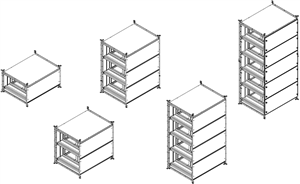

  • Modular: Ability to stack vertically or horizontally. Adaptable to fit any given space
  • Retrofittable: Complete filtered assembly can be attached to existing ductwork, which is cost-effective
  • Custom Inlets and Outlets: Multiple installation configuration options, allowing for installation in congested areas, including mechanical rooms, above ceiling tiles, and tight areas

Suitable For:

Top 5 contaminants/processes/applications:

  • Oil Mist
  • Wood Dust
  • Oil Smoke
  • Plastic Fumes
  • Cannabis Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
MSAH-48x120 3 stage side access housing, 48" x 120" - Allows custom filter configurations.
  • Filters ordered separately
MSAH-48x24 3 stage side access housing, 48" x 24" - Allows custom filter configurations
  • Filters ordered separately
MSAH-48x48 3 stage side access housing, 48" x 48" - Allows custom filter configurations.
  • Filters ordered separately
MSAH-48x72 3 stage side access housing, 48" x 72" - Allows custom filter configurations.
  • Filters ordered separately
MSAH-48x96 3 stage side access housing, 48" x 96" - Allows custom filter configurations.
  • Filters ordered separately

Frequently bought together these options:


Part # Qty Description
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge.
  • 3/16 inside diameter tubing ordered separately
PG-10 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge.
  • 3/16 inside diameter tubing ordered separately

Part # Qty Description
2AF9-9001 2" (50mm) polyester AFTER-filter pad & frame. (24" x 24" x 2").
7FP1-1412 Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP1-4505-P High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
ESMV-75 75% CLEANABLE extended surface main replacement filter.
ESMV-75-P Extended surface (PLEATED) V-style filter.
ESMV-85 85% CLEANABLE extended surface main replacement filter.
ESMV-95 95% CLEANABLE extended surface main replacement filter.
ESMV-98 12" x 24" x 12" 95% Merv 16, Mini Pleat, WASHABLE EXTENDED SURFACE MAIN FILTER.
