Model

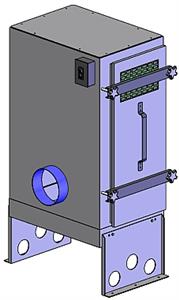

11-013

MistPac (600 CFM)

600 CFM Source capture industrial air cleaner. System is ideal for mixed DUST and MIST machining applications such as tool room or multipurpose machine shop applications.

Function:

600 CFM Source capture industrial air cleaner. System is ideal for mixed DUST and MIST machining applications such as tool room or multipurpose machine shop applications.

Construction:

18 ga. welded steel cabinet with powder-coat finish; includes Ultra-Seal® filter mounting system, removable side access door to filters and motor/blower compartment, (2) 8” (200mm) legs/rod hanging brackets for installation, a 3” (75mm) deep welded oil sump with 1.5” FPT drain, on-off switch and 6’ power cord for 115V units; 230/1 phase and 3 phase units are wired to a side junction box. Motor starter not included.

UNIT: 23”W x 39.75”H x 15.5”D

SHIP: 28”W x 46”H x 21”D

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MODEL65 46"H x 28"W x 21"D 200 lbs
MistPak V2.0 46"H x 28"W x 21"D 200 lbs

Part # Qty Description
MistPak V2.0 450 cfm source capture industrial air cleaner with:
  • (1) 2" (50mm) impingement pre-filter
  • (1) 1" (25mm) aluminum mesh pre-filter
  • (1) 95% main filter (14 sq. ft. of media)
  • 1/2 Hp TEFC motor 115/230/1/60Hz (7.4/3.7 amps)
  • 6" (150mm)Ø welded inlet collar in front only (no side or back inlet)
MODEL65 400 cfm dry source capture industrial air cleaner with (1) 2" and (1) 1" aluminum mesh prefilters, (1) 95% main filter (14 sq. ft. of media), 1/2 Hp TEFC motor 115/230/1/60Hz (7.4/3.7 amps). and a 6" dia. welded inlet collar in front only (no side or back inlet).

Frequently bought together these options:


Part # Qty Description
AD Adsorber Module Option for Standard MIST-PACv2.0 Unit.
v2.0-95DOP 95% DOP Internal HEPA Option for Standard MIST-PACv2.0 Unit.
v2.0-CV Chevron Filter Option for Standard MIST-PACv2.0 Unit.
v2.0-EXAD External Adsorber Module Option for Standard MIST-PACv2.0 Unit.
v2.0-EXDOP External 95% DOP Filter Option for Standard MIST-PACv2.0 Unit.
v2.0-EXHE External 99.97% HEPA Filter Option for Standard MIST-PACv2.0 Unit.
v2.0-HEPA 99.97% Internal HEPA Option for Standard MIST-PACv2.0 Unit.

Part # Qty Description
v2.0-6P05 5'L x 6" (150mm)Ø Positioner Arm with Mounting Plate Option for Standard MIST-PACv2.0 Unit.
v2.0-6P08 8'L x 6" (150mm)Ø Positioner Arm with Mounting Plate Option for Standard MIST-PACv2.0 Unit.

Part # Qty Description
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01 Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10-1 Differential pressure gage.
  • Range: 0-10in w.c.
  • Accuracy: ±5%
  • Temperature range 20 to 120 ºF
v2.0-DL Drain Loop Kit. Includes 1.5 x 3/4 reducer fitted with 3/4 copper p-trap pipe with fittings and instructions.

Part # Qty Description
1PL3-4006 Slotted Hood Plate for MODEL-65 MISTPAK v2.0
v2.0-SH Slotted Hood Plate Option for Standard MIST-PACv2.0 Unit

Part # Qty Description
v2.0-3 PHASE 1/2HP 3 Phase Standard Blower Option for Standard MIST-PACv2.0 Unit
v2.0-3/4HP 3/4HP 1 Phase or 3 Phase High Pressure Option for Standard MIST-PACv2.0 Unit

Part # Qty Description
2AF2-2001 2" (50mm) polyester pad & Frame 12" x 20" x 2".
2AF2-2101 2" (50mm) Impingement Filter - Washable.
2AF4-7100 CHEVRON ® impingement filter for V2.0.
2AF9-0008 Adsorber module, v-bank, refillable, holds 7 lbs. of charcoal. AD.
2AZ2-0011 2" (50mm) Polyester Pre-filter (Pad Only) for Mist Pac V 2.0., Model 65, & Mini Vac. Min.
  • Order QTY: (10)
2KT6-4715 KIT, EXT HEPA, MST2, RETRO.
  • Kit includes (2) exhaust Blank Off Plates per kit
7FA8-0401 1" (25mm) Aluminum Mesh Filter - Washable.
7FA8-0402 2" (50mm) Aluminum mesh filter - 20" x 10" x 2".
7FH9-9406 99.97% HEPA Filter wood frame (10 x 20 x 6)
7FJ9-5406 95% DOP HEPA Filter, metal frame
7FJ9-9406 HEPA, 99.97% filter, metal frame internal and external use.
7FP3-0402 2" (50mm) Pleated Filter, 30% eff. PL. (10" x 20" x 2").
7FP9-0406 10" x 20" x 6" 95% media filter, steel frame.
7HD4-3001 6" (150mm)Ø black hose. Machining UL94 Rated. For MISTPAK v2.0.
  • Price per foot
7HD4-3003 Standard Hose for 1200 VOM. MODEL-65, 1200-DRY, MISTPAK v2.0.
  • Price per foot
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
